Elitech Digital Manifold Gauge Set LMG-10W with app monitoring and temperature clamps
Product description
What it is and what it’s for
The Elitech LMG-10W is a digital manifold gauge set aimed at HVAC and refrigeration work where you want pressure monitoring that’s more “hands-on” than a basic analogue set. On paper, it covers the typical workflow: monitoring pressure during service, supporting vacuum leak checks, and helping you measure superheat and subcooling with temperature compensation.
The angle that makes it stand out for day-to-day jobs is the combination of a compact digital gauge set plus wireless app monitoring, and temperature clamps designed to be used alongside the manifold readings. If your current setup feels like too much swapping between devices, or you simply want to reduce guesswork when calculating charging conditions, this is the sort of tool that can fit the bill.
It’s also fairly clearly positioned as an affordable-but-functional option rather than a premium “lab” instrument. That doesn’t automatically make it a bad buy, it just means you should judge it by real usability for typical site and workshop scenarios.
Key points

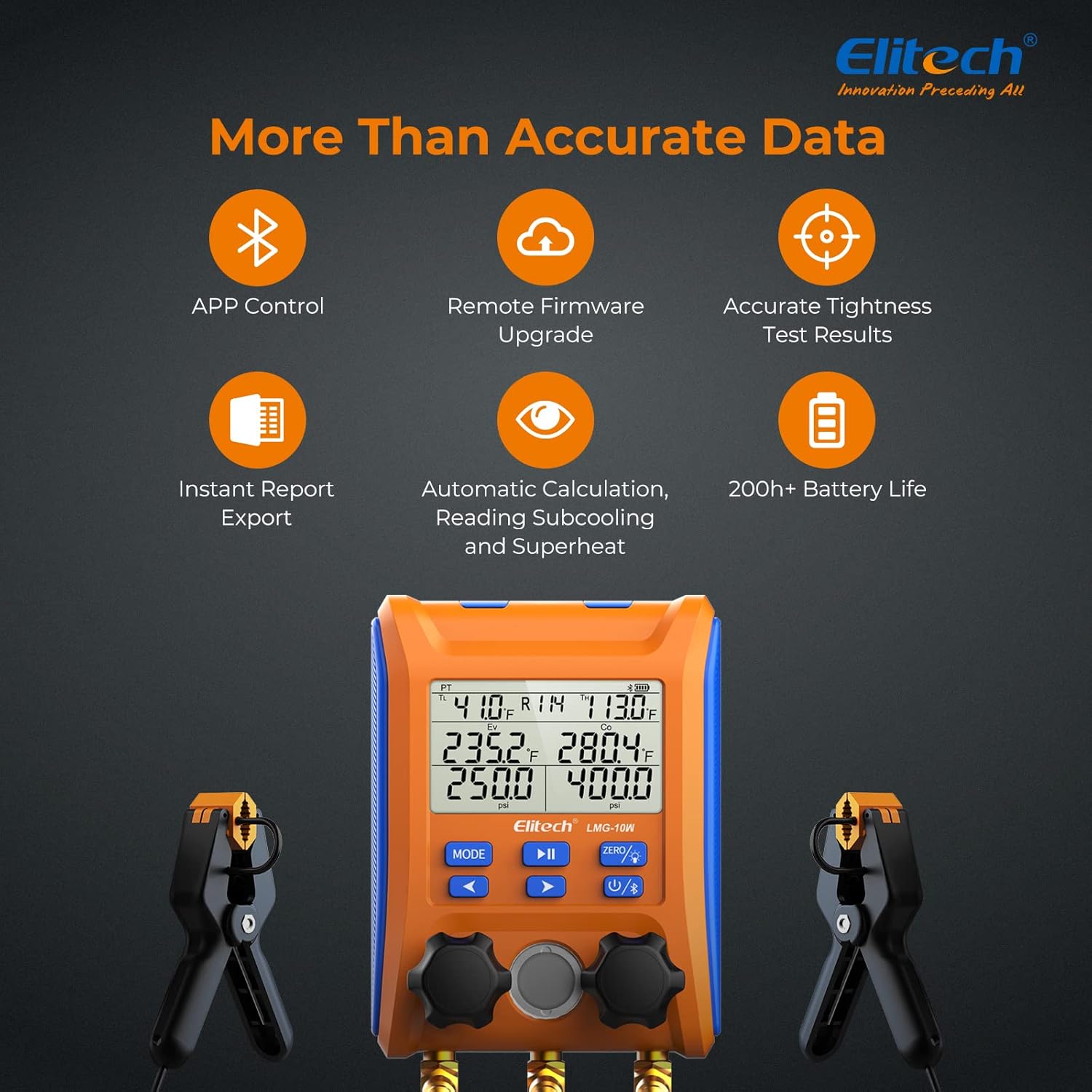

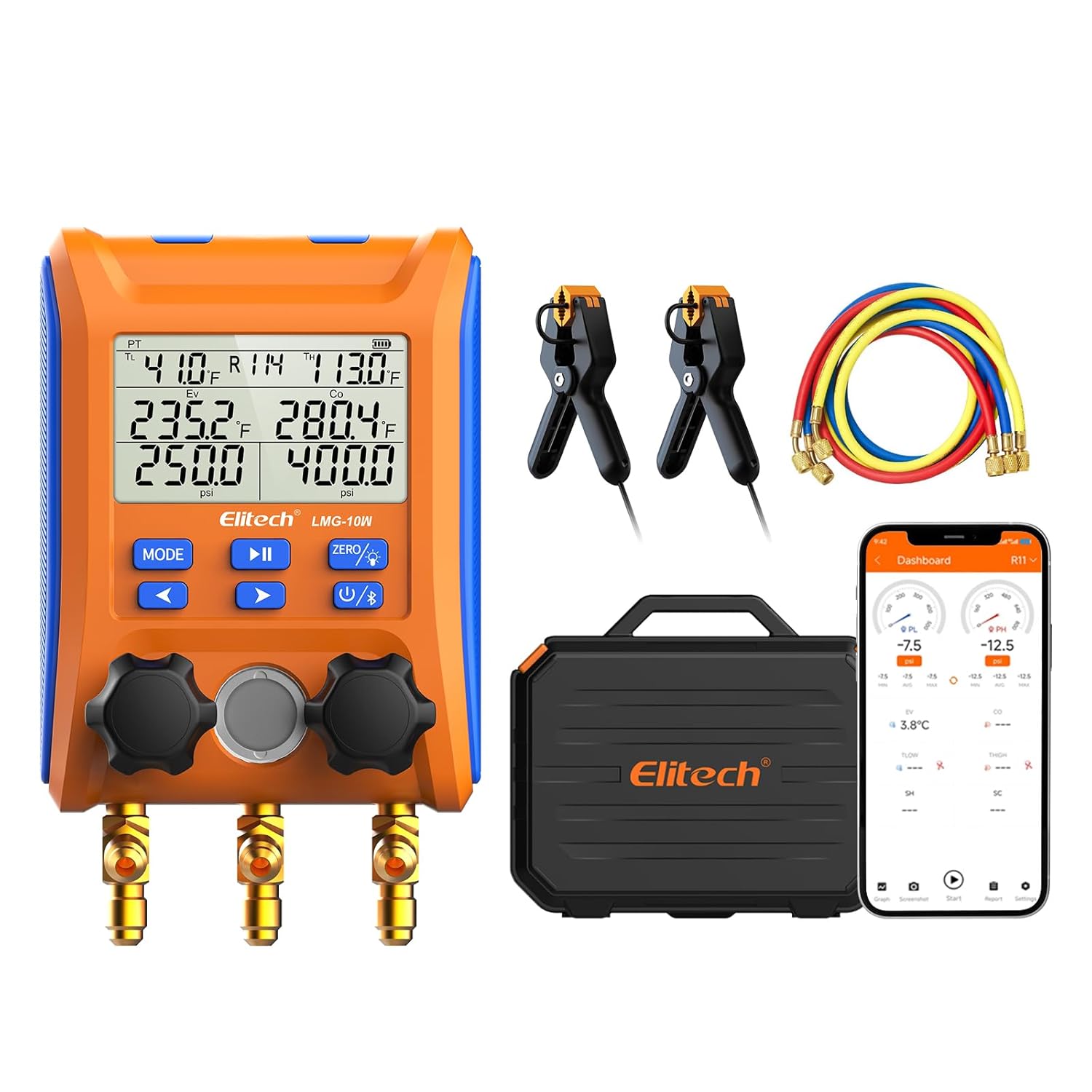

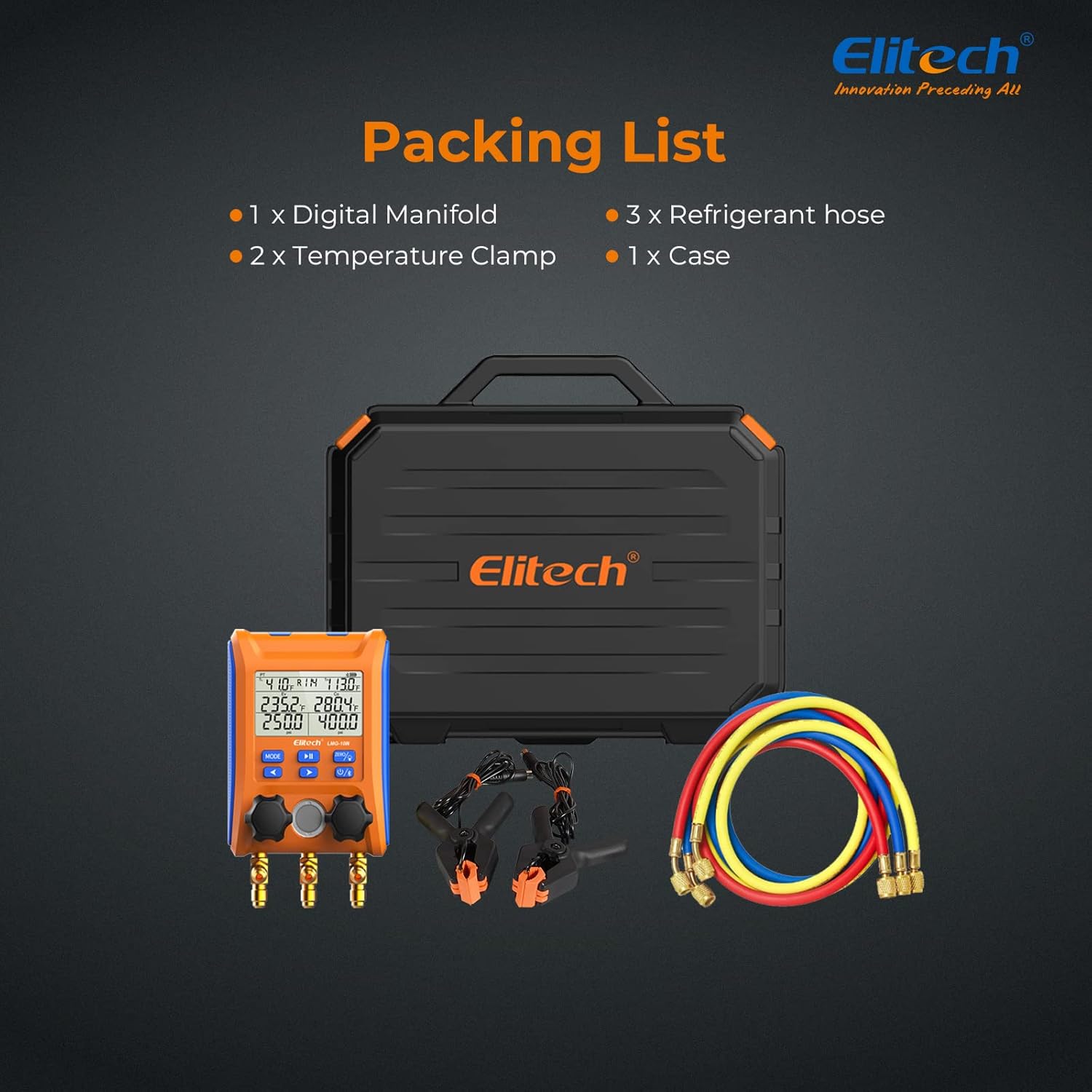

You get a digital manifold gauge workflow with temperature compensation, built-in auto calculations for superheat and subcooling, and multiple pressure units (psi, kg/cm2, kPa, MPa, bar) plus temperature units (°F/°C). It’s designed to be compact and portable, and it includes a large display, two temperature clamps, and a hook for hanging the unit.
Battery life is one of the more practical specs here: it’s listed as ultra-low energy with a 200-hour battery runtime, and the battery is replaceable. That matters if you do multiple jobs back-to-back and don’t want to treat the charger like part of your routine.

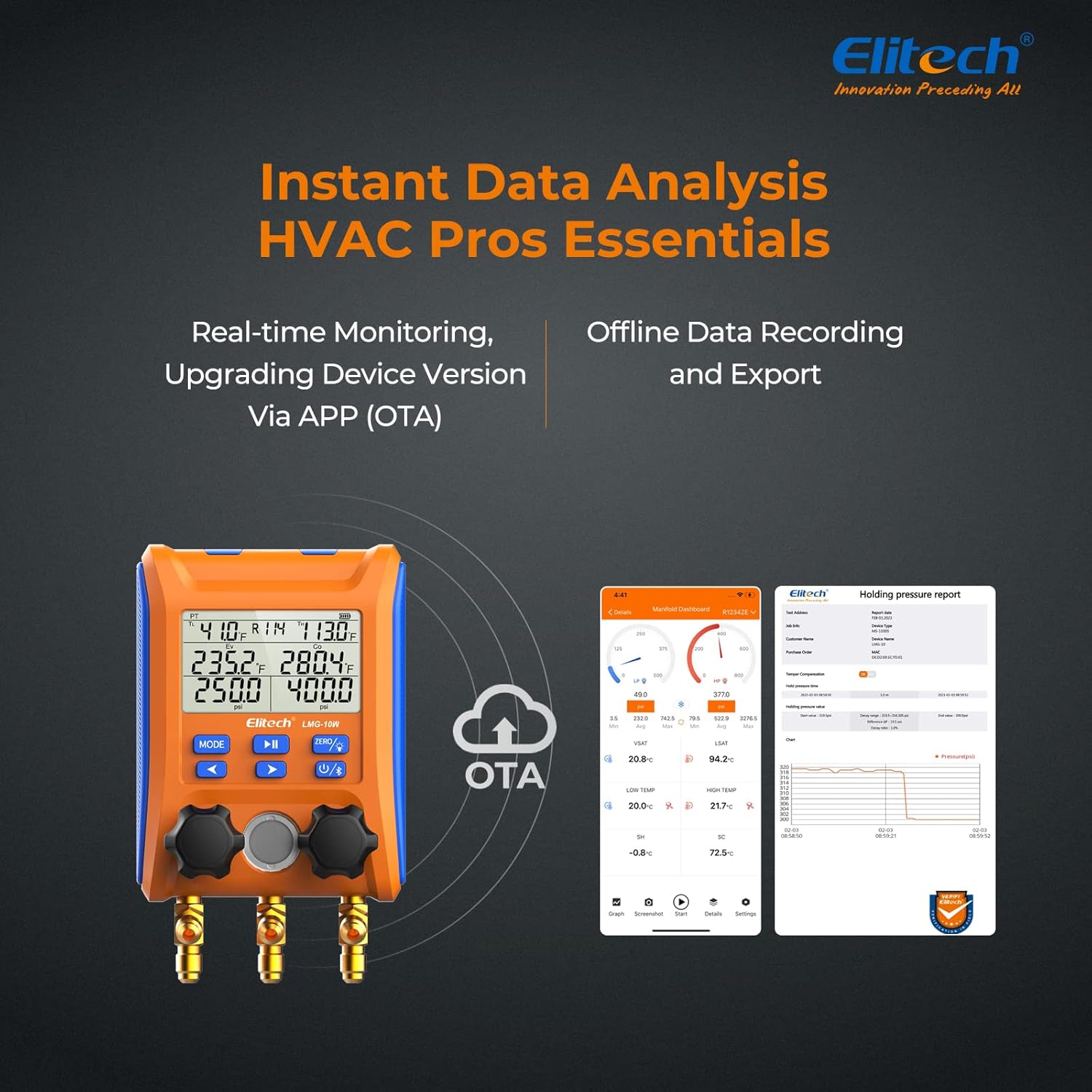

Wireless app monitoring is also a central part of the pitch. The Elitech Tools app is described as working on iOS and Android, letting you manage multiple Elitech tools in one place (including vacuum pump, digital manifold, vacuum gauge and refrigerant charging scale). Whether you’ll use all of that depends on what else you already own, but the intent is clearly to streamline how you capture and review readings.
What you’ll notice in use
For many techs, the “worth it” factor is how smoothly it supports the sequence of a service call. With the LMG-10W, the tool is set up around temperature clamps and digital pressure monitoring, so you’re not just reading pressure—you’re also working with temperature-based calculations like superheat and subcooling.

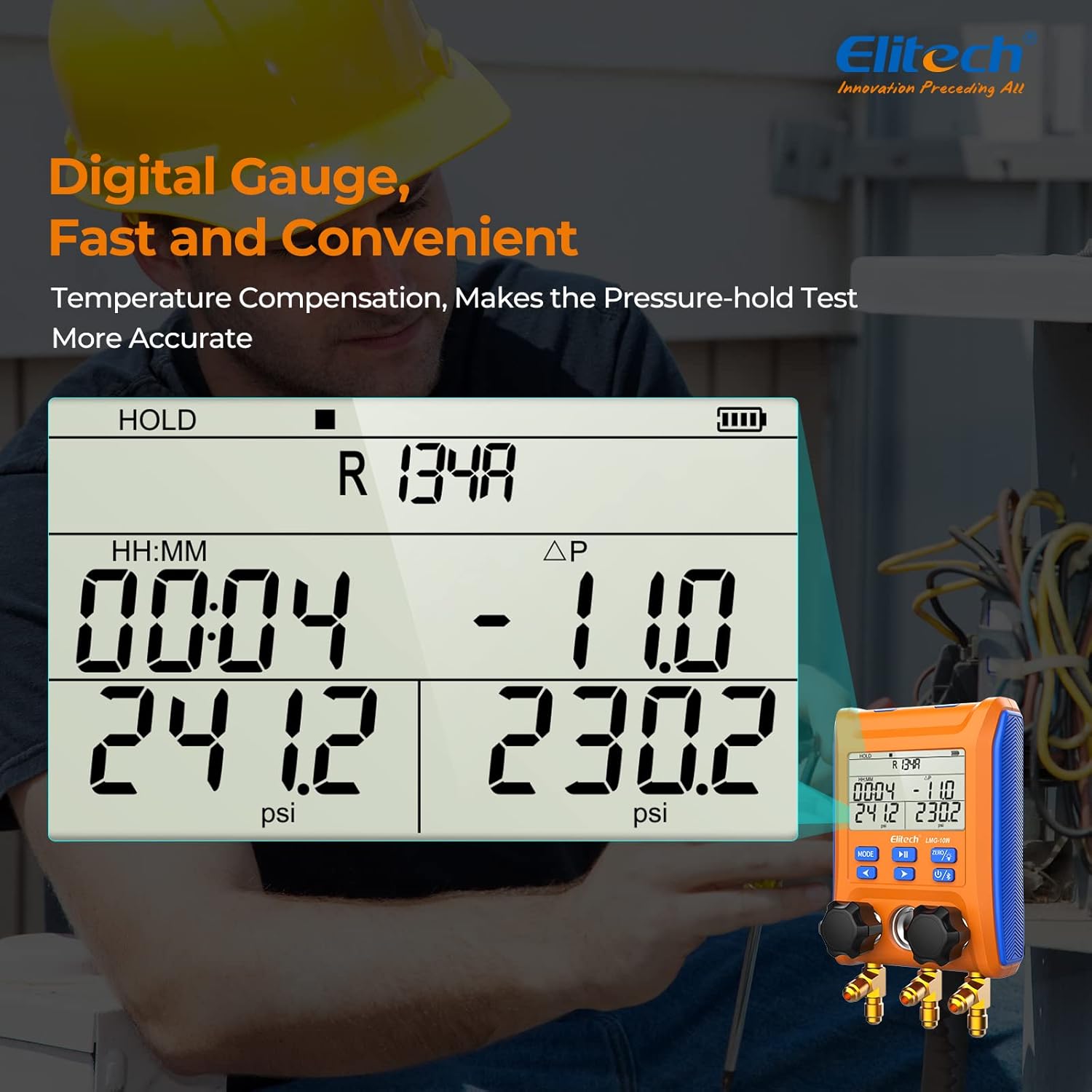

A simple example: you connect for a vacuum leak check, run through your vacuum test routine, then switch over to stabilised conditions for charging. Having the temperature clamps connected while you monitor pressures can make it easier to stay consistent, especially when you’re trying to dial in charge without repeatedly rechecking multiple data sources.
That said, it can be a bit of a “depends” product. If your workflow is strongly based on a specific analogue reading style, or you rely on a larger set of calibration accessories and workflows that aren’t mentioned here, you may find you need time to adapt.
Also worth noting: the broader the refrigerant support, the more attractive it is for general-purpose work. This unit is stated to support more than 140 refrigerant types, with calculations including superheat and subcooling. If you’re handling a wide variety of systems, that’s a genuine advantage.

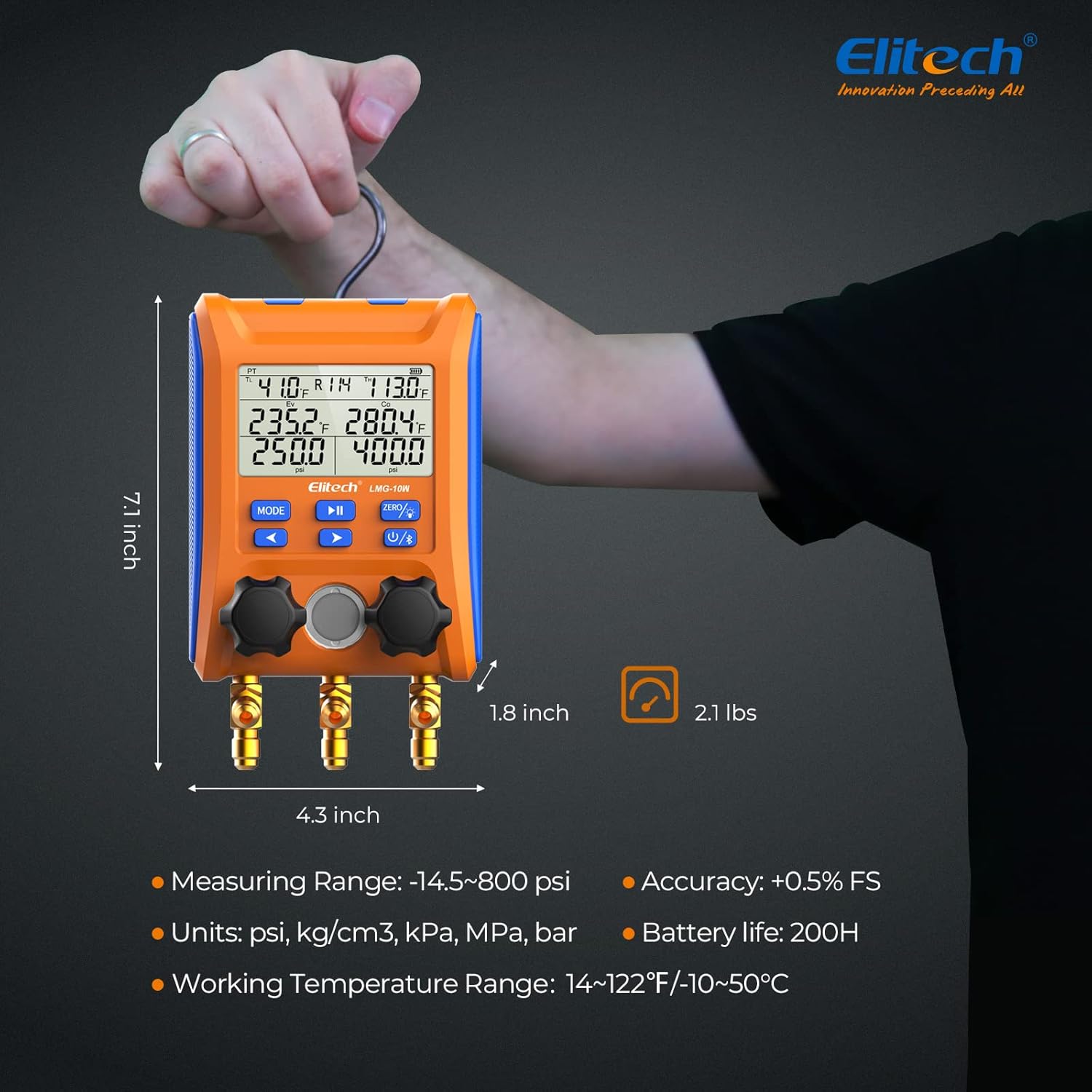

Technical details
- Name: Elitech Digital Manifold Gauge Set 2-Way Valve Wireless HVAC Gauge with APP Monitoring and Temperature Clamps Hose for Refrigeration A/C Heat Pump (LMG-10W)
- Type: Digital manifold gauge set with 2-way valve and wireless app monitoring
- Pressure units: psi, kg/cm2, kPa, MPa, bar
- Temperature units: °F, °C
- Battery: ultra-low energy, listed battery life up to 200 hours, battery is replaceable
- Display/controls: large screen (brand description)
- Included temperature probes: two temperature clamps (brand description)
- Power-saving: automatic shut-off (brand description)
- Refrigerant support: supports more than 140 refrigerants (brand description)
- Calculations: automatic superheat and subcooling calculations, temperature compensation (brand description)
- Connectivity: app monitoring via Elitech Tools (iOS and Android mentioned)
- Support: technical support 24/7 in the USA via email and phone (as stated)
Where it shines (and where it may not)
Where it shines is pretty clear: it’s built around getting useful numbers quickly—pressure plus temperature-based calculations—without making the job feel like you need multiple separate instruments. The multi-unit display, temperature compensation, and automatic superheat/subcooling features are particularly relevant if you do charging and troubleshooting regularly.
It also looks convenient for frequent use, not just occasional testing: the compact design, hanging hook, and long listed battery life suggest it’s intended to live on the van or in the kit, not be reserved for special cases.
However, it may not be the best choice if you’re after a single-purpose, ultra-high-end gauge experience where you want the absolute most refined instrument ecosystem. Since the details provided focus on value and core functions, you may find more demanding users prefer tools with deeper, more extensively documented capabilities (not something we can verify from the provided information).
You might also want to think twice if app-based monitoring is a deal-breaker for you. If you prefer fully standalone tools and don’t want to rely on mobile connectivity, the wireless/app element becomes less useful.
Compatibility and requirements
The product description mentions that monitoring works via the Elitech Tools app on iOS and Android. Beyond that, no specific phone model requirements or compatibility details are provided in the information here, so it’s sensible to check what the app needs in practice before committing.
Should you buy it?
It makes sense to consider the Elitech LMG-10W if you want an affordable digital manifold approach with temperature clamps, temperature compensation, and automatic superheat/subcooling calculations, plus wireless app monitoring for capturing readings more easily.
It’s not the best match if you need a fully specified, high-end testing setup with requirements and calibration details that aren’t covered here, or if you don’t want to factor in an app-based monitoring workflow.
Worth considering if you’re doing A/C and heat pump service and want a portable kit with replaceable battery life and multiple pressure/temperature units to suit different jobs and working preferences.
Mini FAQ
Can it support different refrigerants?
The description states it supports more than 140 refrigerant types, which should help if you work across a mixed range of systems.
Does it help calculate superheat and subcooling?
Yes—automatic superheat and subcooling calculations are mentioned, along with temperature compensation.
How long does the battery last?
It’s listed as up to 200 hours battery life, with a replaceable battery.
Is app monitoring included?
Wireless app monitoring is part of the concept, with the Elitech Tools app mentioned for iOS and Android.
What pressure units can it display?
The unit is stated to support psi, kg/cm2, kPa, MPa and bar, plus temperature in °F/°C.
Final verdict
If you’re after a compact, portable digital manifold gauge set that leans into temperature-compensated measurements and app monitoring rather than analogue-only simplicity, the Elitech LMG-10W looks like a practical value-for-money choice. Just make sure you’re comfortable with the app-based approach and that your expectations match its “affordable but functional” positioning rather than an ultra-premium instrument ecosystem.
