ECO-WORTHY 16.4FT 11AWG Solar Extension Cable (30A/1000V DC) with IP67 Quick Connectors – Red + Black
Product description
What this solar extension cable is for
If you’re putting together an off-grid kit, topping up a solar array, or simply relocating panels and charge components, cable length stops being a “minor detail” pretty quickly. This ECO-WORTHY solar extension cable is built to extend the run between solar panels, controllers and related off-grid components using compatible quick connectors.
On paper, the big themes are straightforward: it’s rated for 30A/1000V DC, it uses a tinned copper conductor, and it’s designed to stay usable outside thanks to an IP67 waterproof rating. That combination is exactly what you’d look for when rain, condensation, or even snowy weather could become part of your routine.
Key points
What you’ll notice most is the focus on stable performance outdoors. The conductor is described as tin-plated/tinned copper, which is meant to reduce oxidation risk and support stable power transfer over time. The connectors are said to be made from PPO (Polyphenylene Oxide), and the jacket is described as UV-resistant HDPE, so it’s not relying on “indoor-only” assumptions.

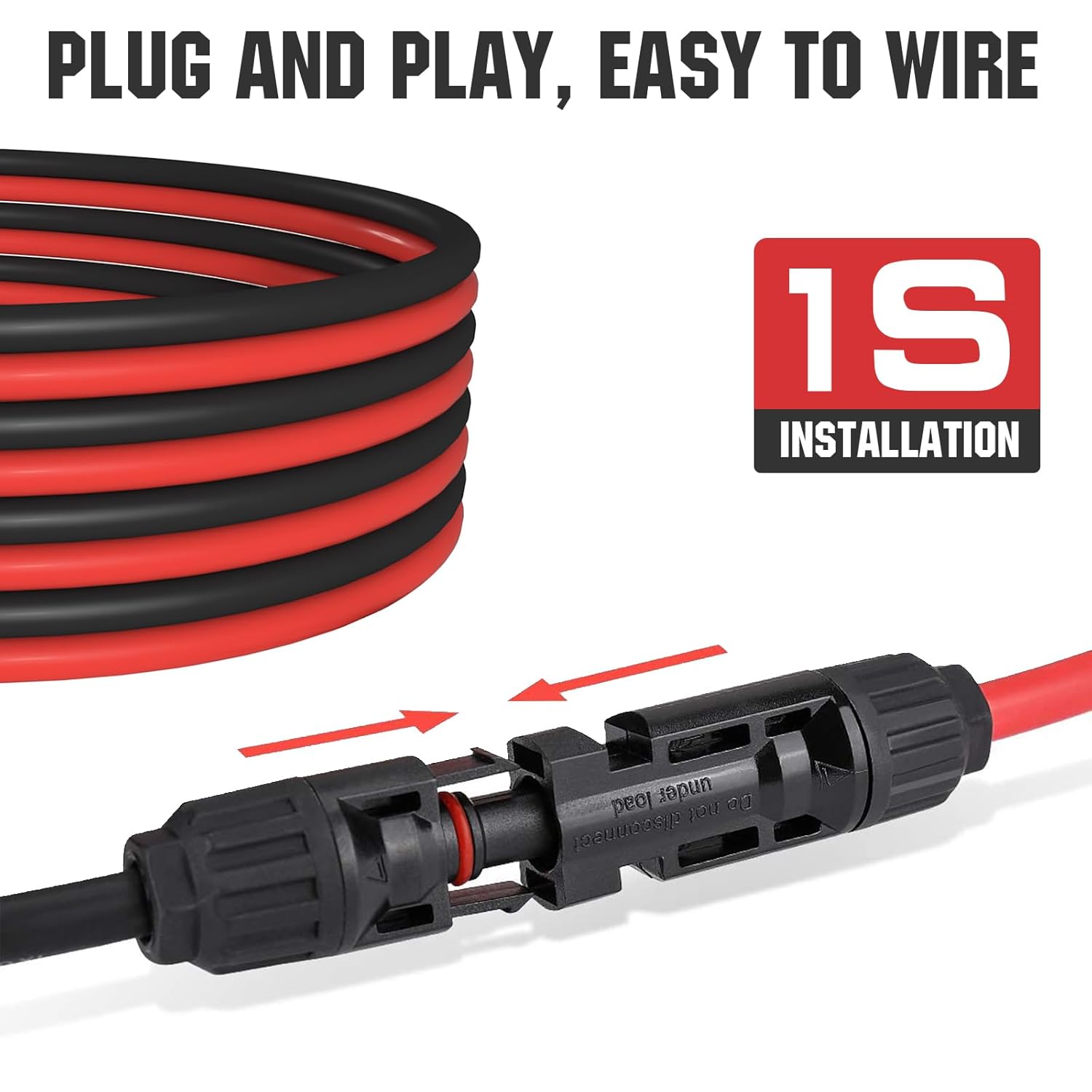

It also comes with red (positive) and black (negative) extension cables pre-attached, so polarity is easier to keep straight during installation. For many people, that “plug-and-go” convenience reduces the fiddly part of building an array where you don’t want to be guessing which side is which.
That said, no cable is magic. If you’re working with a system that isn’t truly compatible with the described connectors and the way your existing wiring is set up, you may still need to do some checking before you buy.
Where it stands out in use

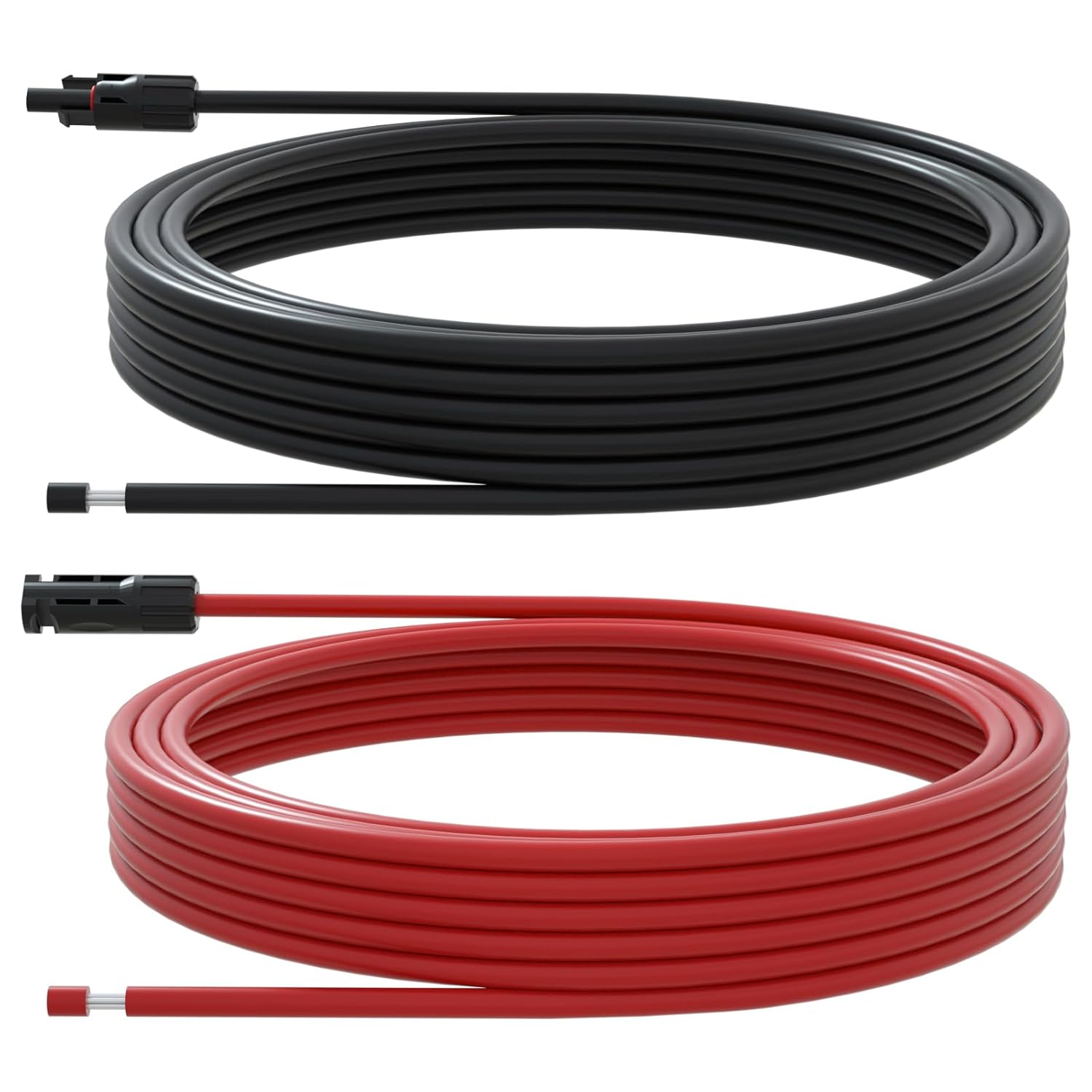

The practical angle here is distance management: each colour is 16.4FT (5 metres) and the full positive-negative pair totals 10 metres (32.8FT). That’s a helpful range if your panels and controller aren’t right next to each other, or if you’re laying out cable routes to avoid sharp bends or awkward mounting points.
The insulation details also point towards outdoor longevity. The insulation is listed as XLPE (Cross-Linked Polyethylene), and the jacket is UV-resistant HDPE. The cable is also described as tested for 2000+ bend cycles, which matters if your installation involves routing through conduits, around roof edges, or through tight cable runs.
Micro example: imagine mounting two solar panel rows at different points on a shed roof. You can run the red and black extension cables along the frame, keep the polarity visually separated by colour, then use the quick connector approach to finish the final join near the controller—without leaving bare connections exposed.

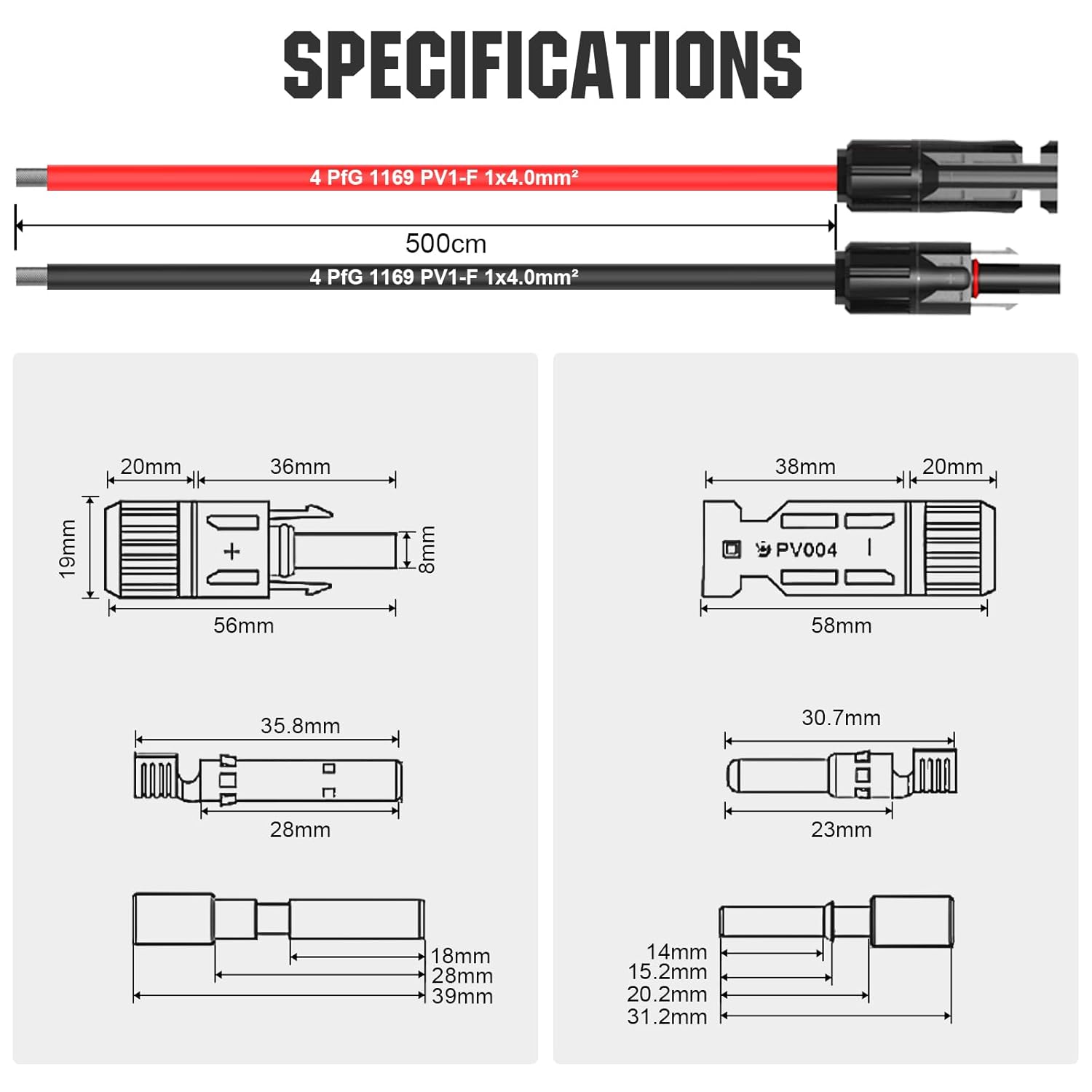

Tech specs
- Name: ECO-WORTHY 16.4FT 11AWG Solar Extension Cable
- Type: Solar extension cable with compatible quick connectors
- Format: Red (positive) and black (negative) extension cables
- Size: 16.4FT (5 metres) per colour
- Capacity: 30A
- Dimensions: Total pair length stated as 10 metres (32.8FT)
- Weight: Net weight per cable 0.65kg (bubble bag packaging noted)

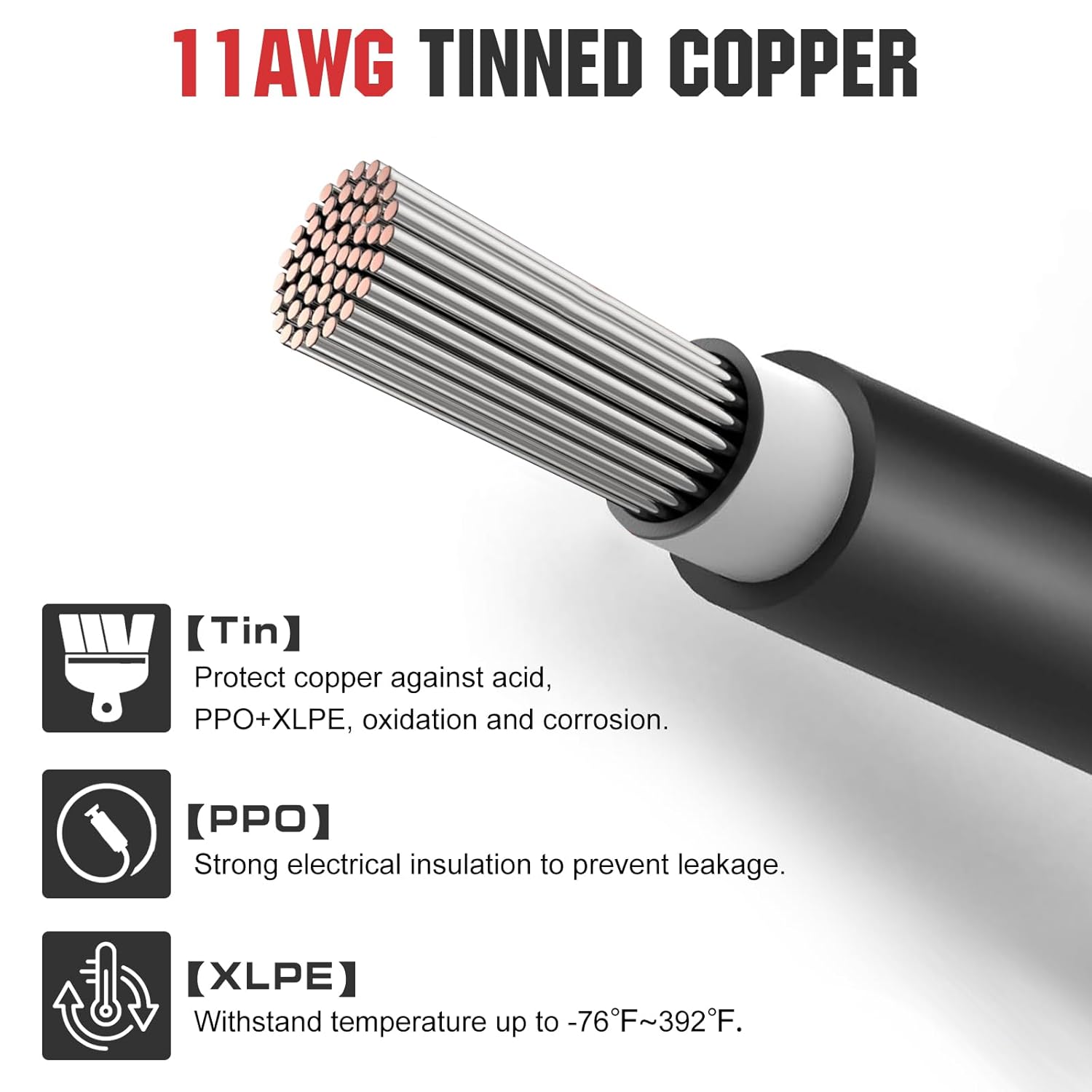

- Material: Tinned copper core, PPO connector material, HDPE outer jacket, XLPE insulation
- Colour: Red + Black
- Display: Not applicable
- Resolution: Not applicable
- Refresh rate: Not applicable
- Processor: Not applicable
- Memory: Not applicable
Also listed: contact resistance ≤0.5mΩ, IP67 waterproof rating, operational temperature range of -40°C to 85°C (-40°F to 185°F), UV-resistant HDPE jacket, 98% dustproof efficiency, designed for 25+ year rooftop or direct burial deployments, contact resistance and bend cycle testing are mentioned (2000+ bend cycles).
Compatibility and requirements

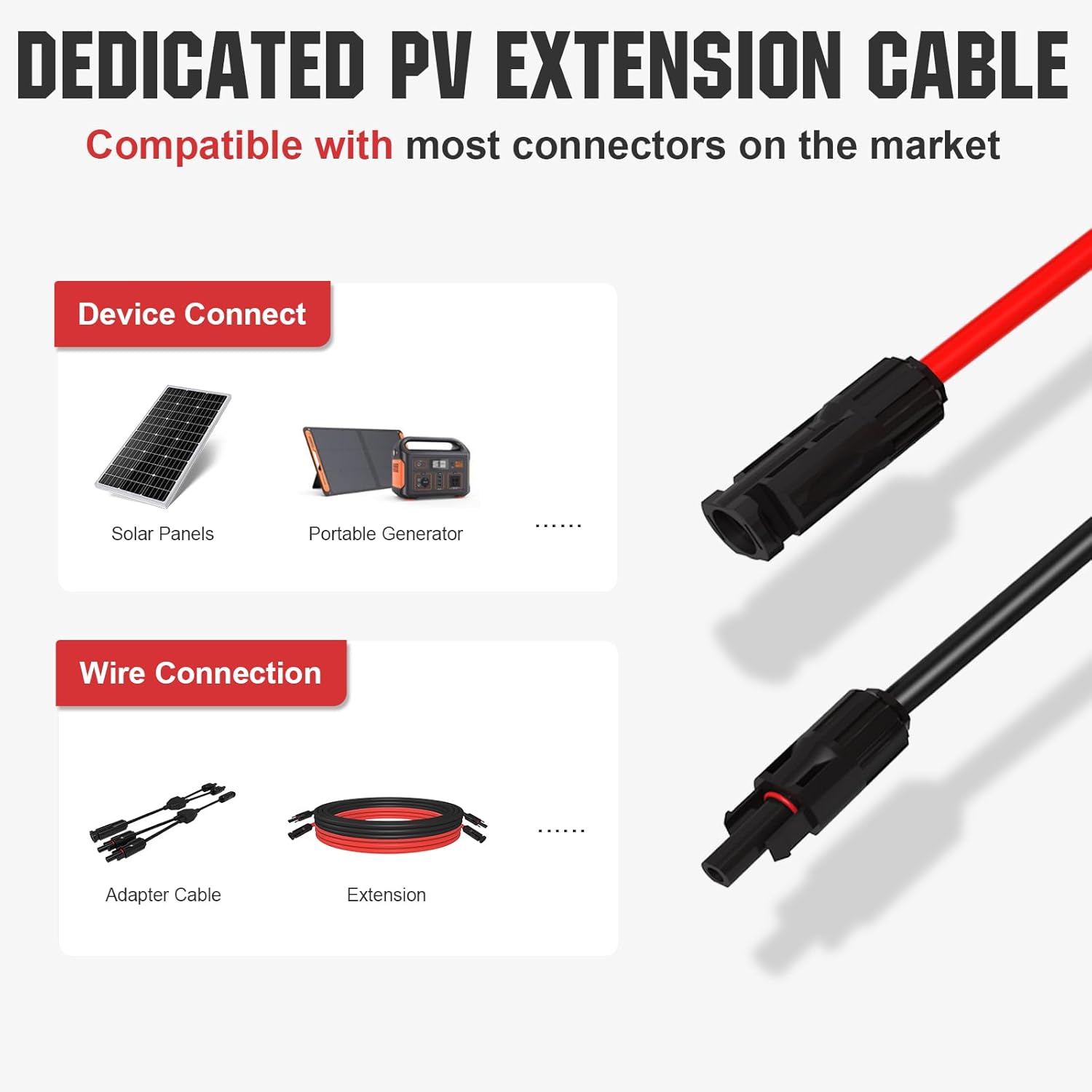

The description says it’s equipped with standard solar connectors and is interoperable with most solar connectors on the market, and it uses “compatible quick connectors”. That’s useful wording, but it also means you should treat compatibility as something to confirm against your own setup.
It’s also worth noting it’s built for DC use at the stated rating (30A/1000V DC). If your system is outside that sort of expectation, or if your existing components require a different connector standard, you may end up with a cable that looks right but doesn’t fit neatly.
A sensible check before ordering: confirm the connector type you already have on the panel and controller side, and ensure the polarity markings and routing plan match how you’ll run the cables.
Care and maintenance

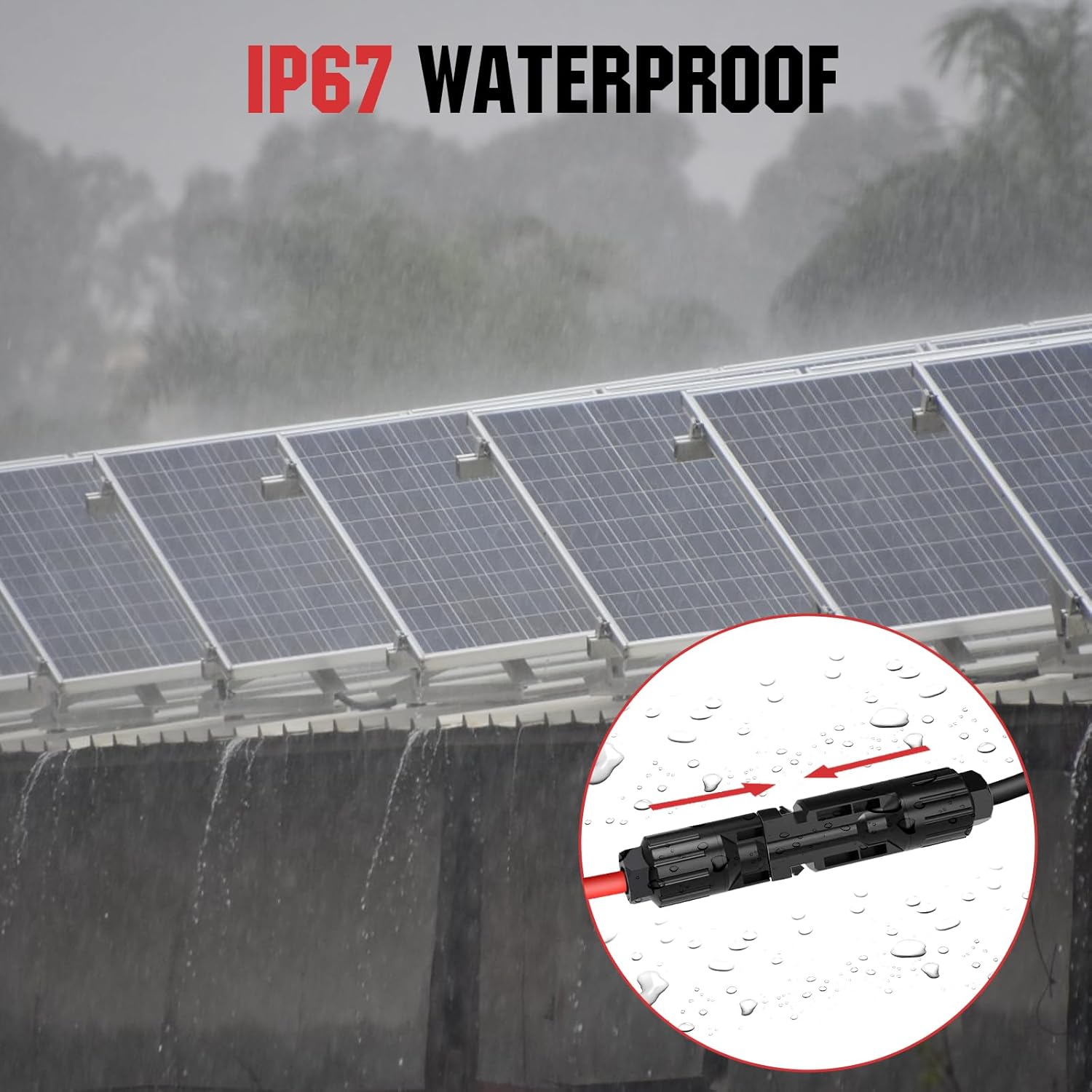

This cable is described as IP67 waterproof and weather-ready, so it’s designed for outdoor conditions. Still, if you’re installing it in a dusty or debris-heavy environment, keeping the connector areas clean before mating them is the safest habit.
Also, even with a jacket rated for UV resistance, avoiding unnecessary abrasion along metal edges is smart—especially if you’re laying cable where it could rub against mounting hardware over time.
Final verdict
Is it worth it?
This is a solid buy if you want a reasonably length-matched solar extension lead with quick-connect convenience, and you care about outdoor durability. The tinned copper conductor, the IP67 waterproof rating, and the UV-resistant jacket are the kind of details that make it feel more “seriously outdoor” than basic extension wire.
It may not be the best choice if you’re unsure about connector compatibility with your existing panel/controller setup, or if your installation doesn’t really benefit from a 5-metre-per-side extension (because any mismatch or rework can cost more effort than simply choosing a shorter route).
Who it suits best
- People assembling or expanding off-grid solar systems who need extra run length
- Buyers who prioritise weather protection (rain/snow) and connector safety around exposed connections
Who should consider skipping
- Anyone who can’t confirm the connector standard and quick-connect compatibility in their specific system
- Buyers who only need very short extensions and want the simplest possible install with no extra cable length
Quick FAQ
1) Is this cable suitable for outdoor solar use?
It’s described as IP67 waterproof and built for outdoor environments, including an operational temperature range of -40°C to 85°C.
2) How long is the cable run?
Each colour is 16.4FT (5 metres), and the full positive-negative pair totals 10 metres (32.8FT).
3) What does “11AWG” mean here?
The listing states 11AWG alongside a 4mm² tinned copper conductor and a 30A/1000V DC rating.
4) Do I need to worry about polarity?
The red (positive) and black (negative) wires are described as pre-attached and intended to make polarity identification easier.
5) Can it handle rain or snowy conditions?
The cable is rated IP67 waterproof, and the description specifically mentions that this helps reduce arc-fault risk in rainy or snowy conditions.
