Dong Cheng 20V Brushless Heavy-Duty Impact Drill (50N.m) with 13mm keyless chuck and hammer function
Product description
The essentials
If you’re shopping for a cordless impact drill that can handle more than just wood and basic screwdriving, this Dong Cheng 20V brushless heavy-duty model is built around a simple idea: strong torque and a hammer mode for masonry-type jobs, without making the tool feel too bulky to live with day to day. On paper it’s aimed at people who want one drill that can move between drilling, driving screws, and hammer drilling for tougher materials.
It’s also designed with control in mind. The clutch has 20+1+1 settings, which is typically what you look for when you need to avoid overdriving and damaging surfaces (especially when you’re tightening screws into softer material). Add in a 13mm keyless metal chuck for quicker bit changes and a brushless motor concept that’s meant to run cooler and efficiently, and it reads like a practical workshop/worksite tool rather than a lightweight DIY toy.
That said, there’s a limitation you should keep in mind: we only have the product’s headline specs and intended uses, not performance tests in your exact conditions. If your jobs are frequent, highly demanding, or you need specialist attachments, you’ll still want to check what’s in the box and whether the included battery and system approach suits how you work.
Key features that affect buying decisions

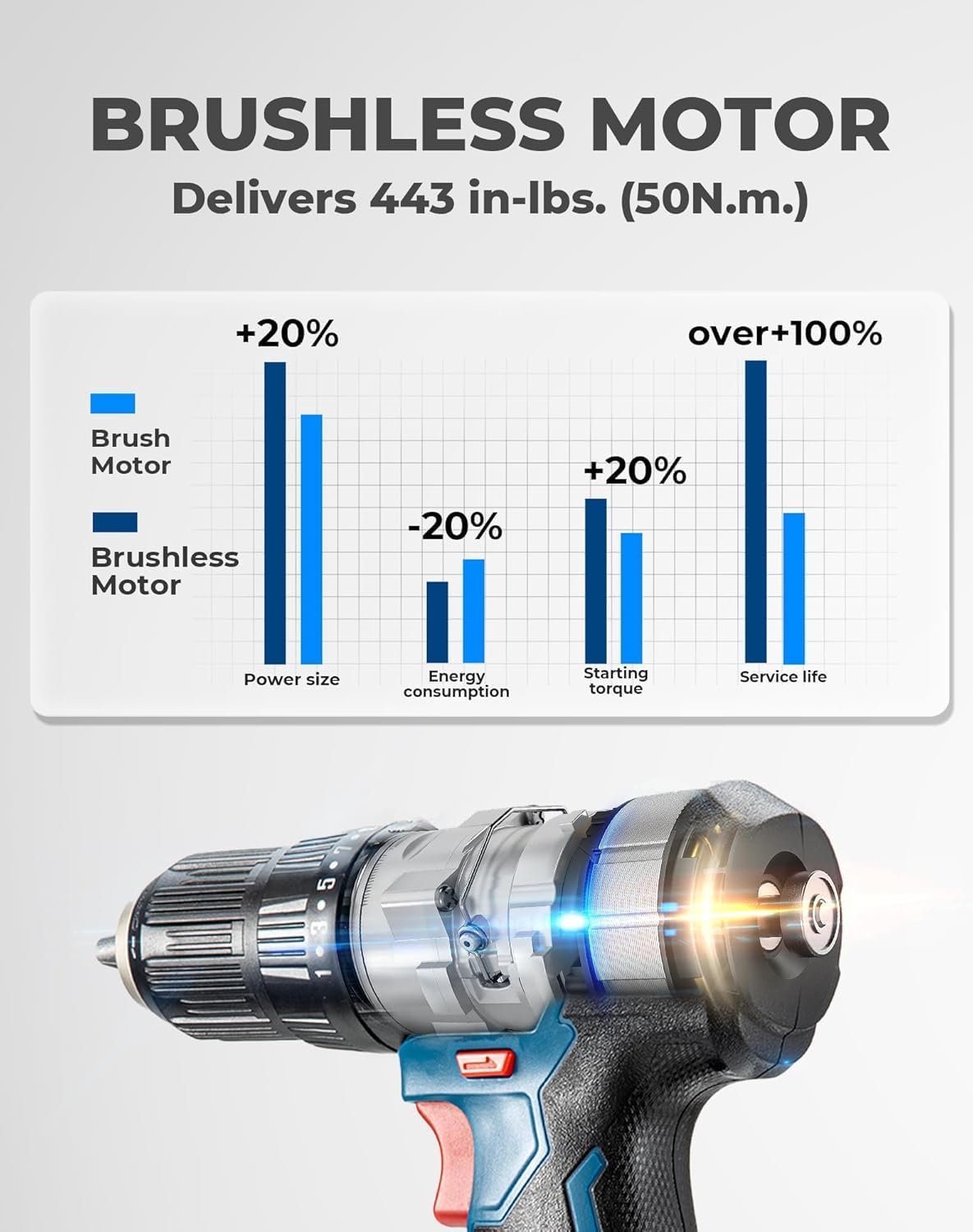

The headline spec is a maximum torque of 50N.m, supported by a brushless motor setup described as running cooler and more efficiently for longer life. For an impact drill in this class, that kind of torque figure is usually what lets you tackle stubborn fixings and denser materials without feeling like you’re fighting the tool.
The 3-in-1 angle matters too. It’s set up with drilling/screwdriving and a hammer function for brick wall and similar masonry-type tasks. The speed control is dual-speed, quoted as 0-550 RPM and 0-1,800 RPM, and it’s also listed with 27,000 BPM/IPM (beats per minute/impacts per minute) for the hammer action. In practical terms, that gives you a sensible spread: lower speed for driver-style work and higher speed when drilling through harder material.
Then there’s the chuck and clutch combination: - The 13mm keyless metal ratcheting chuck is positioned as giving good bit retention and quick changes. - The 20+1+1 clutch is there for controllability, so you’re less likely to strip screw heads or drive fasteners too deeply.
If you’re the kind of user who values fewer surprises mid-job—like when you’re switching between drilling pilot holes and then immediately driving fixings—this layout makes sense.
What you’ll notice in everyday use
A micro scenario can help here. Imagine you’re hanging brackets on a brick wall: you’d start with hammer drilling to get holes started, then once you’re through, switch away from hammer mode for final checks (if you’re drilling through components or adjusting depth), and use the correct clutch setting for the screws. The point is that you’re not just relying on raw power—you’re also using the clutch to keep driving under control.

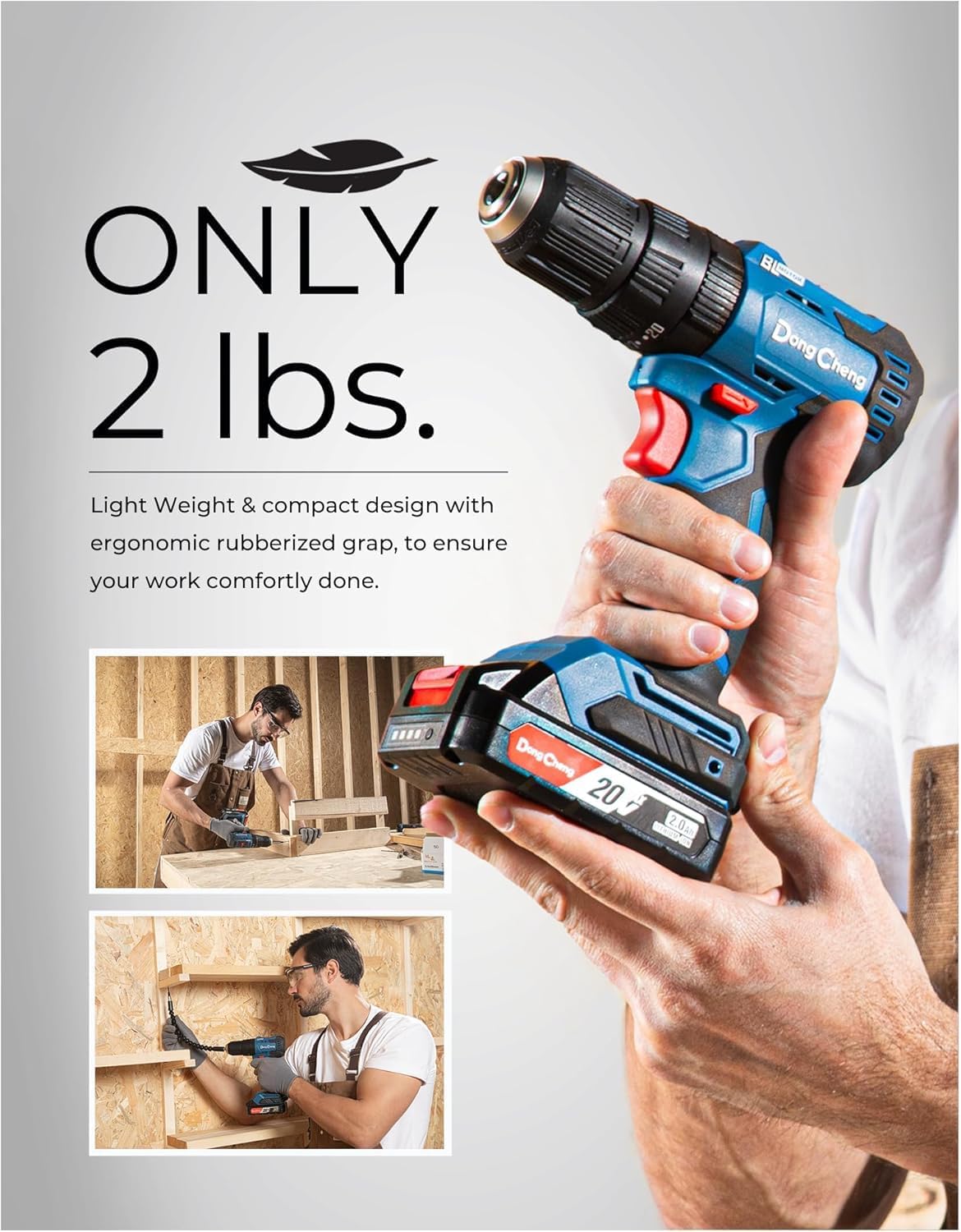

The tool weight is listed at 907g, which is fairly friendly for extended use compared with heavier impact drills. It also mentions an ergonomic, rubberised handle to improve comfort and control, which is the kind of thing you notice after ten or fifteen minutes—especially if you’re using it overhead or in awkward positions.
One more practical detail: if you often swap bits between jobs, the 13mm keyless chuck is the sort of feature that saves time. You’re not hunting for a chuck key, and you can usually change bits quickly by hand once the chuck is loosened.
Who it suits (and who should be cautious)
It’s a solid fit if you want a cordless hammer drill that covers drilling, screwdriving, and masonry-style hammering, and you prefer adjustable clutch control for cleaner results. The included 2.0Ah battery is likely to be fine for typical home-improvement tasks, especially if you’re not running it continuously for long drilling sessions.
It might not be the best match if your work is heavy, time-critical, or you regularly drill large volumes of masonry. In those situations, battery capacity and runtime become the deciding factor more than the headline torque. Also, if you’re expecting ultra-precise, delicate driving every time, you’ll still need to choose clutch settings carefully—because a powerful impact drill can still cause damage if you set the clutch too high or use the wrong mode.
Tech specs (as provided)
- Max torque: 50N.m (443 in-lbs.)
- Motor type: Brushless
- Functionality: 3-in-1 (drilling, screwdriver, hammer)

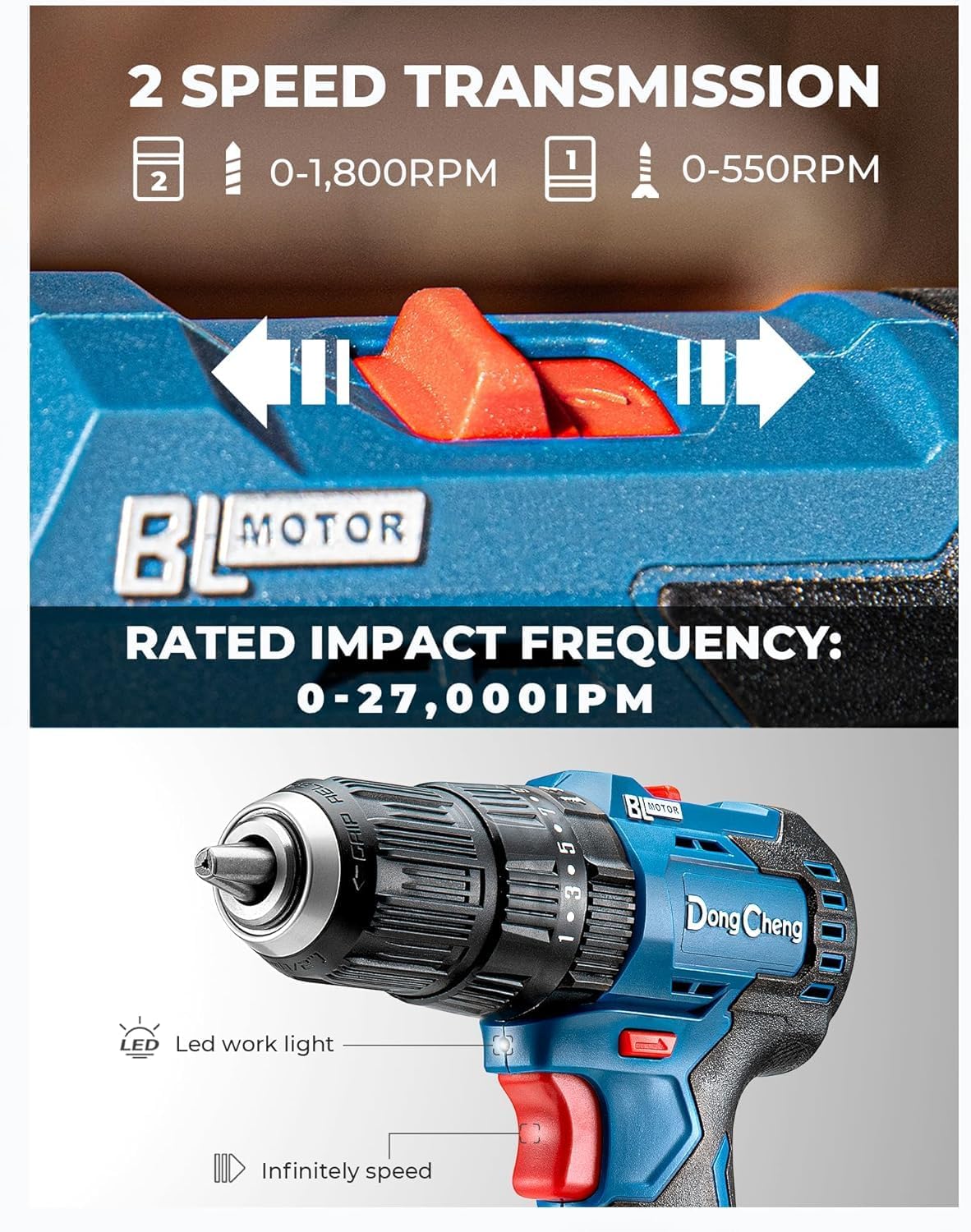

- Speed settings: 0-550 RPM and 0-1,800 RPM
- Impact rate: 27,000 BPM/IPM

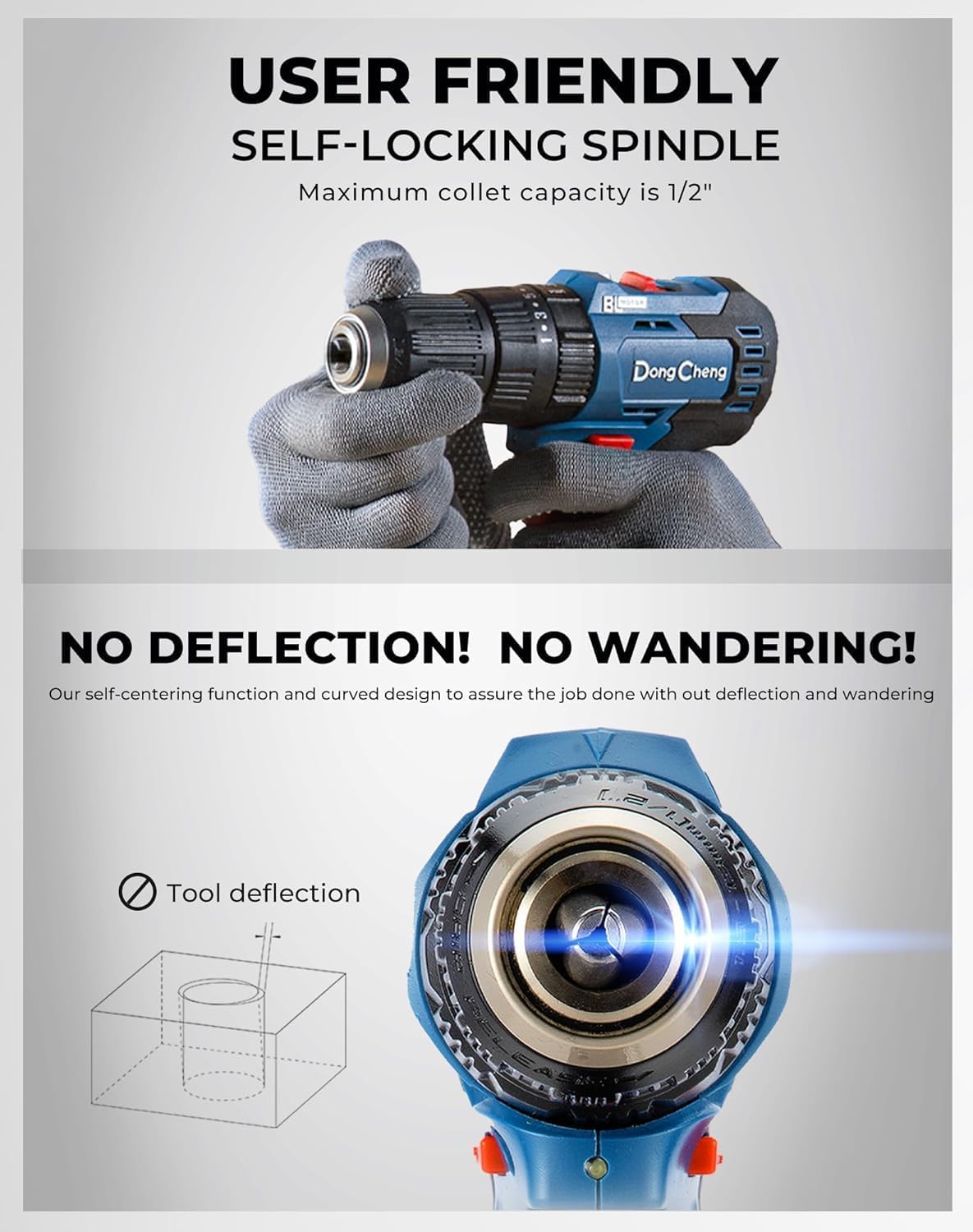

- Chuck: 13mm keyless metal ratcheting chuck
- Clutch: 20+1+1 settings
- Weight: 907g
- Power platform: 20V battery system (shared across Dong Cheng 20V MAX tools)
- Battery included: 2.0Ah
- Intended materials (by description): brick wall, concrete, metal, wood
Care & maintenance
For cordless drills like this, keeping performance consistent is mostly about basic habits. After hammering jobs (especially dust-heavy masonry work), wipe down the chuck area and vents, and make sure the bit and chuck teeth stay clean so the keyless mechanism can grip properly. Store the battery separately from the charger when fully charged, and avoid leaving the tool in damp conditions.
If you notice the drill bogging down, it can also be worth checking that you’re using the right bit type for the material and that the hammer function is actually what you need for that step.
Mini FAQ
Is this drill suitable for brick or concrete?
The description specifically calls out handling concrete and brick via the hammering function, so it’s aimed at masonry-type drilling rather than only light DIY.
What are the speed modes for?
The two-speed setup (0-550 RPM and 0-1,800 RPM) is designed to cover different drilling and driving needs, with the higher range for drilling and the lower end more suited to controlled screwdriving.
Does it have a clutch for screw control?
Yes, it’s listed with 20+1+1 clutch settings to help prevent overdriving and damage, particularly useful when driving screws into more delicate materials.
Is the chuck easy to use?
It’s described as a 13mm keyless metal ratcheting chuck, which is meant to support quick bit changes without needing a chuck key.
What’s the battery situation like?
A 2.0Ah battery is included, and it’s part of a shared 20V battery platform across Dong Cheng 20V MAX tools. If you plan long masonry sessions, having access to additional batteries may matter.
Is it worth it?
Worth considering if you want a cordless 20V brushless impact drill with a strong torque figure (50N.m), dual-speed control, and a hammer function that’s meant for brick/concrete-style drilling, all wrapped in a relatively manageable weight. The 20+1+1 clutch and keyless 13mm metal chuck are the practical details that can make day-to-day use feel less fiddly.
Better avoided if you’re mostly doing light indoor screwdriving and don’t really need hammer mode, because you might be paying for features you won’t use. And if your work is very heavy masonry and you care most about sustained runtime, you should check whether the included 2.0Ah battery is enough for your schedule, since the provided information doesn’t confirm real-world run time.
If you’re somewhere in the middle—typical home fixes, occasional masonry drilling, and plenty of bit changes—this one looks like a sensible “do more with one drill” choice on paper.
