Diamond Core Drill Bit Set by BRSCHNITT: Tile Hole Cutter Kit with M14 Thread and Diamond Blade

What it is

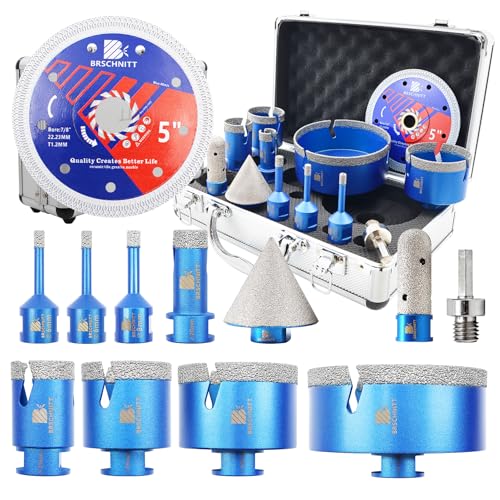

This is a Diamond Core Drill Bit Set from BRSCHNITT designed for drilling clean holes in porcelain, ceramic, marble, granite, and other tile and stone materials. The kit combines a range of core bits (6/6/8/20/35/50/68/110mm) with a 125mm diamond blade, plus a 20mm finger bit and a 50mm chamfer bit, all featuring an M14 thread for compatible tile drilling on standard angle grinders.

How it’s built

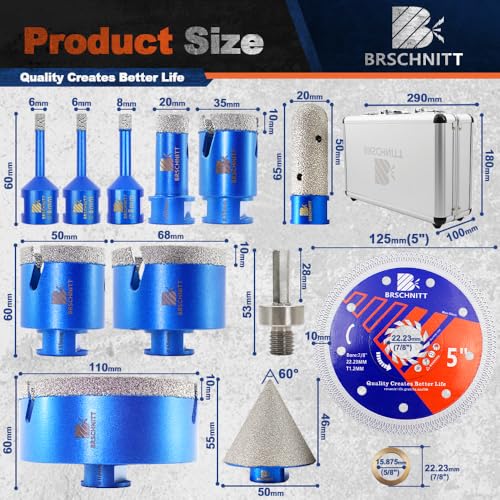

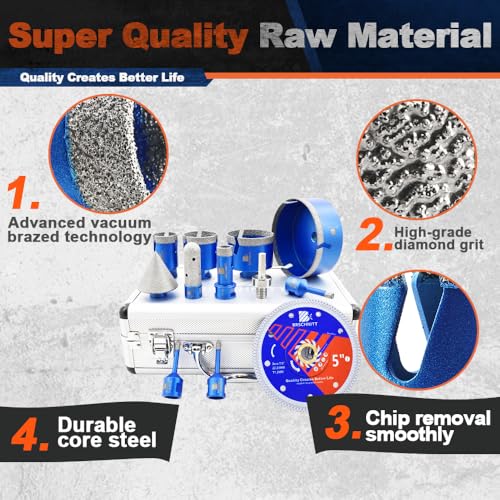

The core bits use vacuum brazed technology, which aims to improve diamond retention, temperature resistance and cutting longevity. The diamond grit is set into a high-grade core steel body to promote durability and reduce deformation during work. The overall design includes a 10mm diamond height and a total length of 60mm, with serrated teeth and a chip-evacuation pattern intended to deliver smoother drilling and reduce edge breakage.

What you’ll notice in use

On paper, the set targets straightforward tile and stone drilling tasks. The wide size range means you can start with larger core holes for plumbing or wiring with the larger diameters, and use the smaller sizes for precise passes in tight spaces. The serrated cutting edges and chip evacuation help move material away from the entry face, potentially resulting in neater edges and less heat buildup when used with water irrigation.

Pros you might value

• Broad size selection catering to common tile and stone applications.
• Vacuum brazed diamond tips designed for improved durability and temperature tolerance.
• M14 threaded bits compatible with many UK market angle grinders.
• Includes a 125mm diamond blade, plus a 20mm finger bit and a 50mm chamfer bit for a more complete kit.

Cons and limits to consider

• Real-world performance depends on proper technique and cooling, dry drilling can increase wear, so water use is recommended to prolong life.
• The description notes high-quality materials but doesn’t provide independent third‑party testing data, so cautious buyers may want to temper expectations about longevity.
• The 60mm length and 10mm diamond height are standard but not oversized, which may limit performance on very dense or extremely hard materials.

Who it’s for

This kit suits DIYers and tradespeople who regularly cut holes in tile or stone while needing a compact, multi-size solution. It’s a practical option if you’re planning broader tile work (porcelain, ceramic, marble or granite) and want a single kit with multiple diameters plus a diamond blade for finishing tasks.

Who it isn’t ideal for

If your priority is heavy-duty, continuous industrial drilling or you require non-slip performance under dry grinding in very hard substrates, you may encounter limits in durability and life span compared with higher-end professional sets. Also, if you don’t use M14-compatible grinders, you’ll need an adaptor or a different spindle.

When it makes sense to buy

• You need versatile tile-hole cutting across a range of diameters in one purchase.
• You value a kit that includes both core bits and a diamond blade for broader workflow coverage.
• You’re working with common UK tile materials and want a pragmatic, value-oriented option rather than investing in premium bespoke bits.

What to check before buying

• Confirm your angle grinder has an M14 spindle to ensure compatibility.
• Plan on using water for cooling to maximise bit life, as suggested by the material and use-case notes.
• Consider your typical tile material, porcelain and granite can demand more from diamond bits, so session length and cooling are important.

How this compares to other approaches

If you routinely drill small, precise holes, a single-size bit might be simpler, but this set offers breadth of diameters and the convenience of a bundled blade. For occasional projects, a more compact, fewer-diameter kit could be lighter and cheaper. For heavy or frequent tile work, you may expect better value from a higher-grade, single-diameter professional option—this kit sits between casual DIY and more demanding trades usage, leaning toward versatile value.

Practical use example

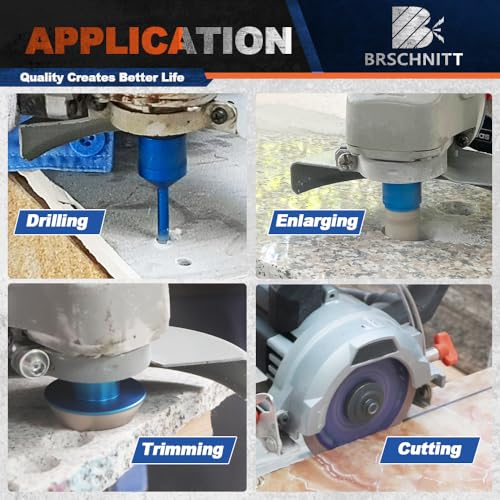

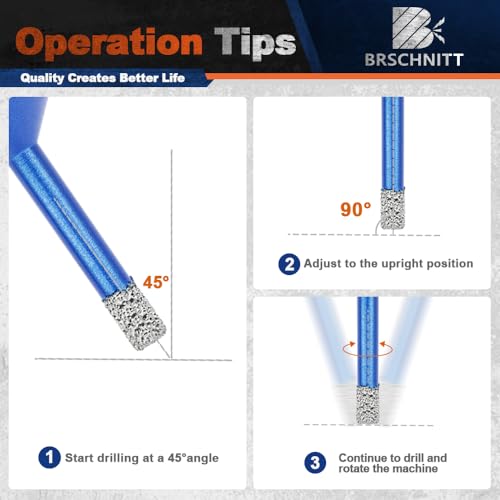

Imagine you’re retrofitting a bathroom and need multiple hole sizes for plumbing fixtures and fixtures’ brackets. You’d use the smaller diameters to start a pilot hole, then widen progressively with larger sizes, keeping water cooling handy. The included 125mm blade would help in trimming or edge finishing on larger tile sections when needed.

FAQ (brief)

• Is water required? Yes, using water can prolong bit life and reduce heat.
• Will it fit my grinder? It’s designed for grinders with M14 thread spindles.
• Are the sizes fixed? The kit covers 6/6/8/20/35/50/68/110mm, which covers common needs but may not fit unusual projects.

Should you buy it? Final considerations

Worth considering if you want a practical, all-in-one tile drilling kit that covers a broad range of common sizes and includes a diamond blade. It’s not the absolute cheapest option, and its durability claim rests on material quality and usage practices. If your use case is light to moderate tile work on porcelain, ceramic, marble or granite, this kit offers a sensible balance of versatility and value.
