CIGMAN CD-120G bilateral laser distance meter (120m) with point finder camera and IP68 protection
Product description
The essentials
If you’re measuring outdoors where distance and visibility fight back, the CIGMAN CD-120G is built around that problem. On paper, it targets large, real-world spaces—think warehouses, exhibition halls, shopping malls and office buildings—where you want a repeatable way to measure from a remote spot rather than creeping into position.
It combines a green laser for an extended outdoor range, a built-in point finder camera to help you lock onto the measurement target, and a 360° high-precision tilt sensor for capturing point-to-point distance from a single location. There’s also an IP68 rating for dust and immersion resistance, plus a flipable display and an IPS backlit screen to make readings easier when you’re working in bright light.
That said, it’s not perfect for every job. If you mostly measure indoors on short distances, you may not use several of the features (like the camera aiming help and the long outdoor range) and could look at simpler meters instead.
What it’s for (and how it fits the job)

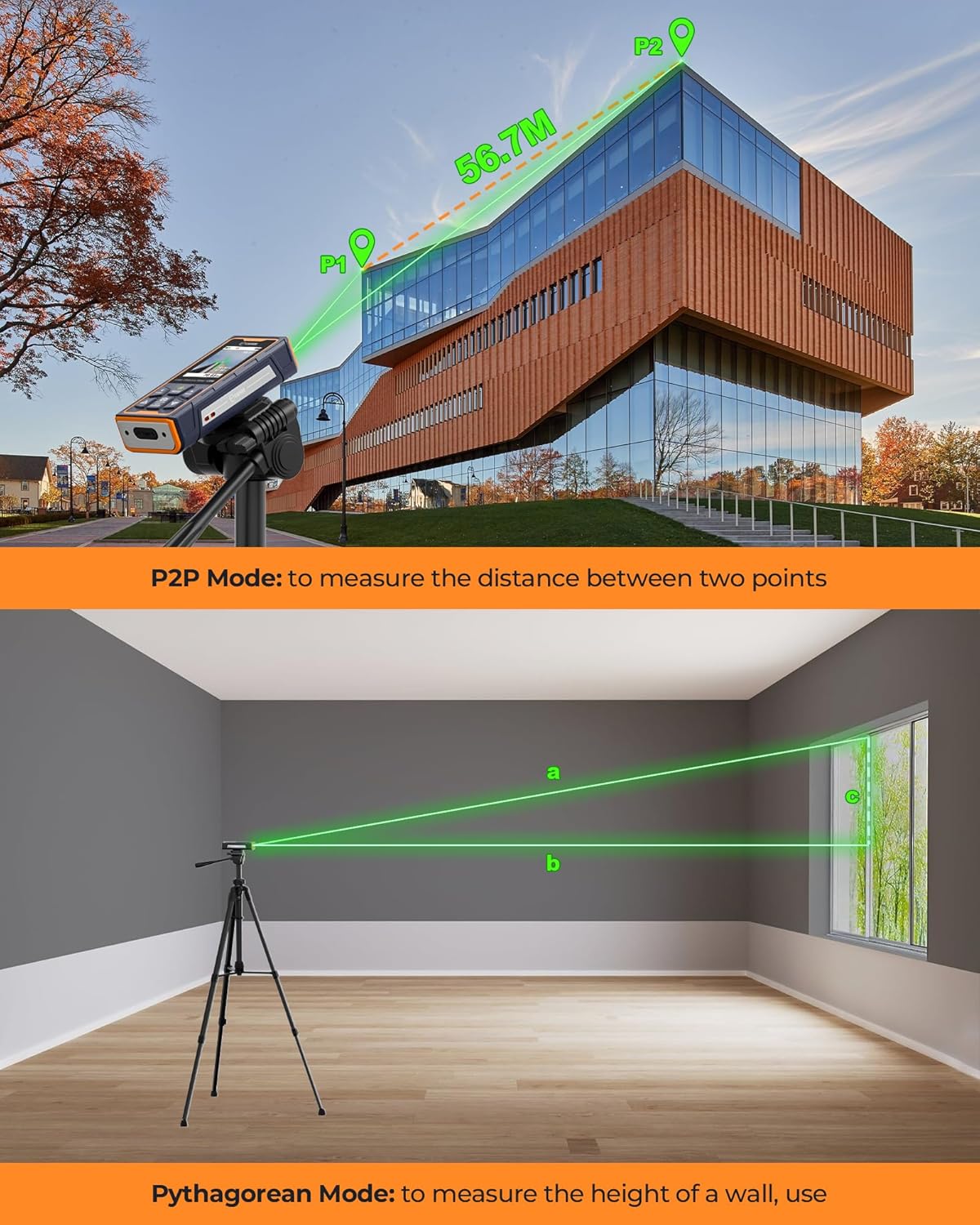

The CD-120G makes the most sense when your measurement points are separated and you can’t easily line up the tool with both targets. The point-to-point approach (single remote location) is the key idea: you capture distance between any two points without having to physically move the main measuring unit.
A typical scenario might be this: you’re setting out a layout across a large hall from one accessible position. Instead of hunting for the right spot manually, you use the camera’s on-screen aiming crosshairs to find where you’re measuring from, then trigger the distance reading. The vibration reminder is also there to confirm when the data is obtained, which can reduce “did I actually capture that?” moments on busy sites.
Key takeaways
- Longer outdoor reach is the headline, with up to 120m outdoors, aimed at large-scale measurement work.

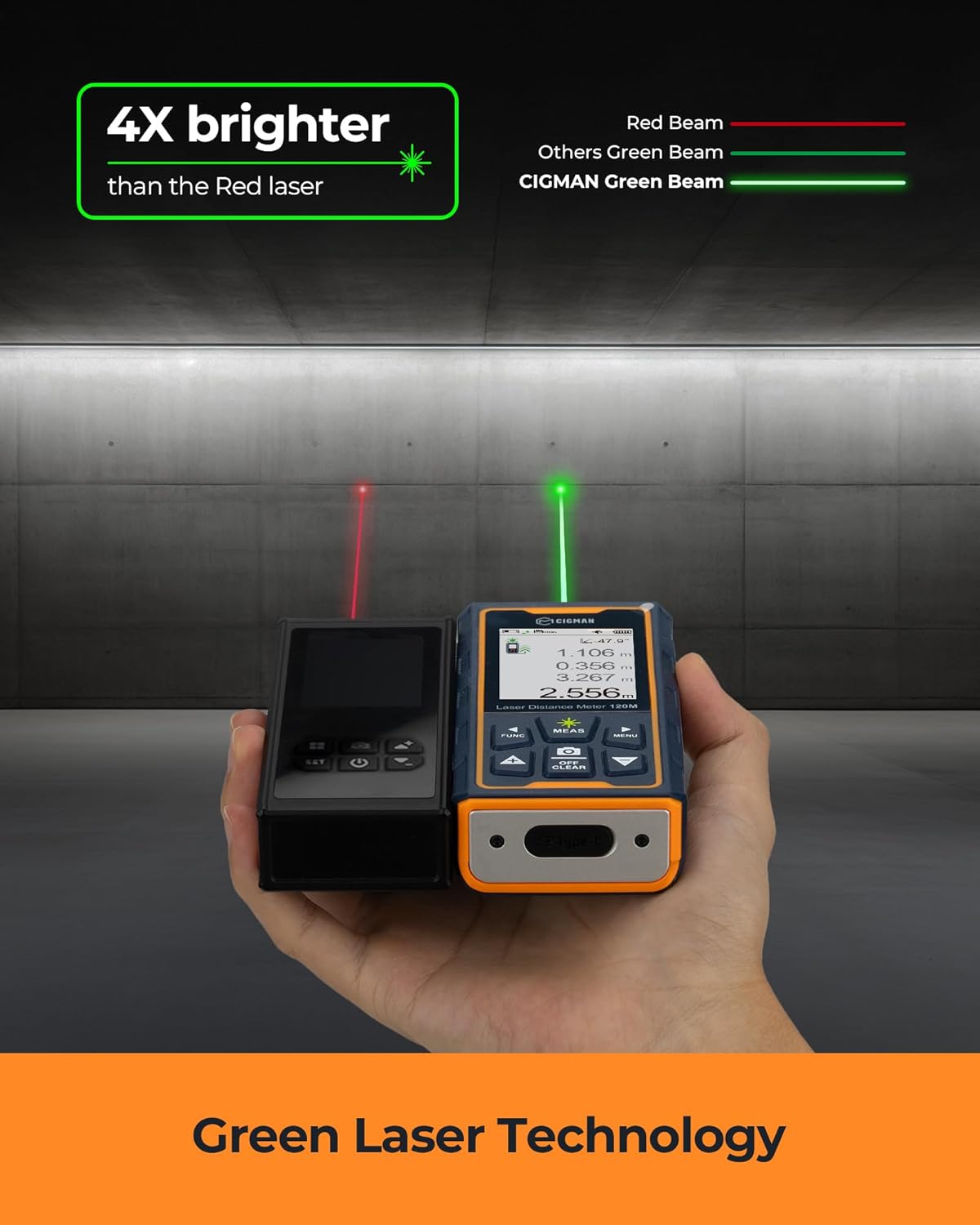

- Green laser tech is used to improve visibility for outdoor conditions compared with more basic approaches.

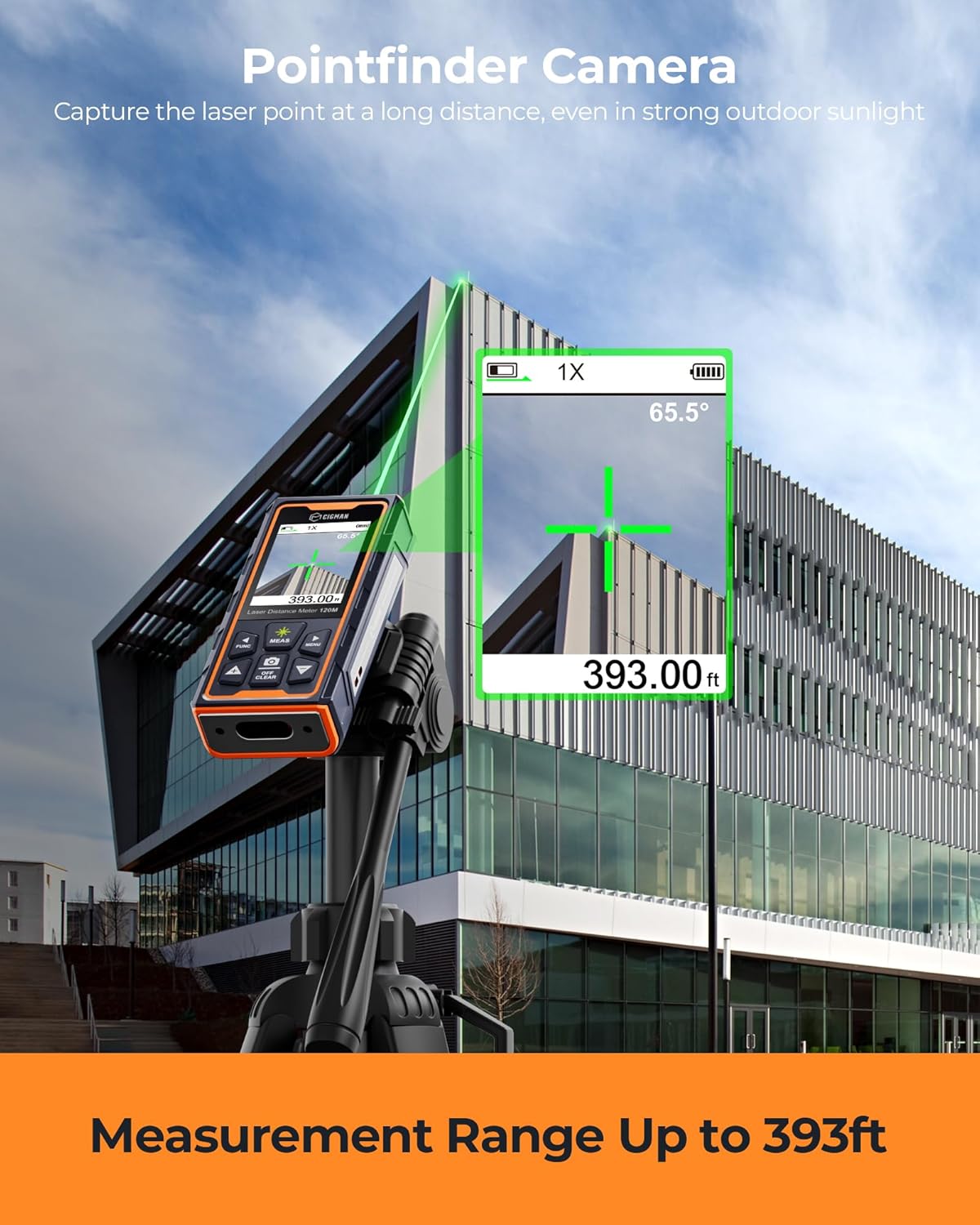

- The built-in point finder camera (with 4x digital zoom) and aiming crosshairs are designed to make target alignment easier, especially in bright light.
- A flipable display helps keep readings readable from different angles.
- IP68 protection (dust intrusion resistance and immersion in 1m deep water) plus an ABS-wrapped body suggests it’s meant for tougher field use.
Tech specs
- Name: CIGMAN Bilateral Laser Measure Device (CD-120G)
- Type: Laser distance meter / portable laser measurement tool
- Format: Handheld device with LCD display and built-in aiming camera
- Size: 2.4-inch IPS backlit display

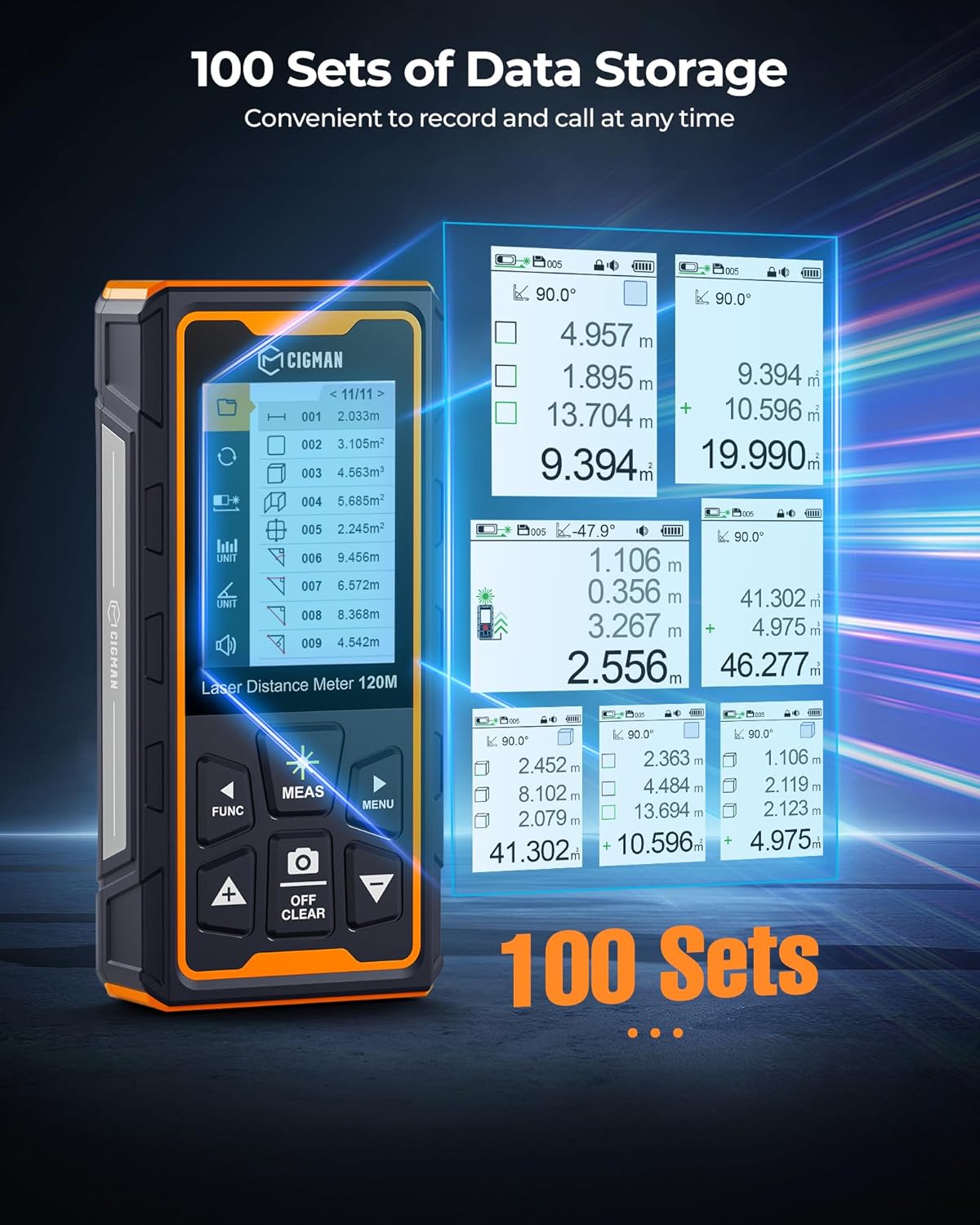

- Capacity: Stores up to 100 sets of data
- Accuracy: +/-2 mm (as stated)
- Measurement range: up to 120m outdoors
- Laser: Advanced green laser technology (green laser)
- Display: Flippable LCD, 2.4-inch IPS backlit screen
- Point finder: Built-in camera with 4x digital zoom and on-screen aiming crosshairs
- Sensor: 360° high-precision tilt sensor (P2P method, tripod sold separately)
- Protection: IP68 (resistant to dust intrusion, immersion in 1m deep water)
- Body: ABS-wrapped for shock absorption

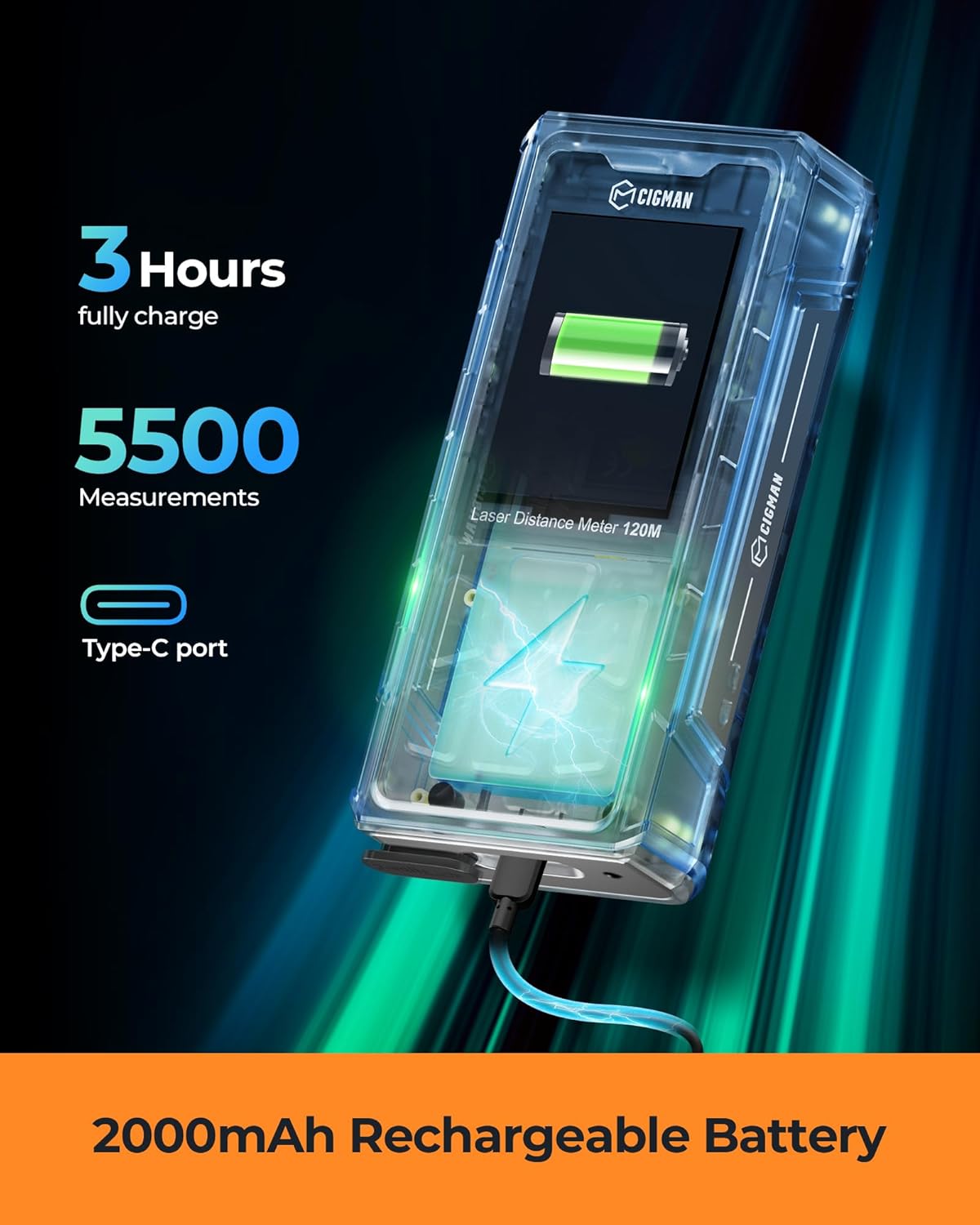

- Battery: Rechargeable battery built-in
What stands out in day-to-day use
The combination of range, aiming support, and the “measure from one remote spot” idea is what makes this feel less like a basic gadget and more like a field tool. The point finder camera is particularly relevant when the line-of-sight is awkward. With the on-screen crosshairs, you’re not relying purely on what you can see through a small window.
The screen also matters in real conditions. The IPS backlit 2.4-inch display and flip function are meant to keep the reading direction sensible as you move around your measuring position. And the vibration reminder is a small but practical touch: it helps you confirm the measurement moment without constantly looking back at the screen.
A limitation to note: a tripod is required for the described P2P workflow, and tripods aren’t included based on the information provided. If you’re expecting a fully “standalone set-up” without additional kit, that’s one thing to plan for.
Where it may not be the best match
This meter is aimed at outdoor, large-scale measurement tasks. If your work is mostly short-range indoor measuring, or you don’t need point-to-point measurement from a remote location, the added complexity (camera aiming, the tilt/P2P approach, and the outdoor-focused range claims) might not give you much extra value.
Also, while the stated accuracy is +/-2 mm, real-world results depend on how you set up and how stable the measuring conditions are. If your job involves lots of quick, casual measurements with no tripod planning, you may find simpler tools easier day to day.
Buying verdict
A solid pick if you need longer outdoor laser measurements for large spaces, want help aligning a distant target (especially in bright sunlight), and can use a tripod for the point-to-point approach.
You may want to skip it if you mostly measure indoors at shorter distances, don’t plan to use a tripod, or you prefer a simpler, lower-feature device where aiming support and long-range performance won’t be used.
Mini FAQ
How does the built-in point finder help?
It’s designed to support target alignment at distance using a built-in camera with 4x digital zoom and on-screen aiming crosshairs.
Is it suitable for outdoor use in bright conditions?
The design focus is outdoor measurement, and the on-screen aiming crosshairs plus the IPS backlit display are meant to make readings and alignment easier even when working in bright sunlight.
Do I need a tripod?
For the described P2P method with the 360° tilt sensor, the information provided says a tripod is needed, and it needs to be purchased separately.
How robust is it for on-site work?
It’s rated IP68 for dust intrusion resistance and immersion in 1m deep water, and it uses an ABS-wrapped body for better shock absorption.
Final question: is it worth buying for my use?
If your work involves measuring across large indoor/outdoor areas where you can’t easily place the tool near the target points, it’s likely to feel more “purpose-built” than basic laser distance meters. If you’re mainly doing quick, close indoor measurements, you may not get the same payoff from the extra features.
