Awgem Portable Soldering Iron Kit 100W 🔧
Product description

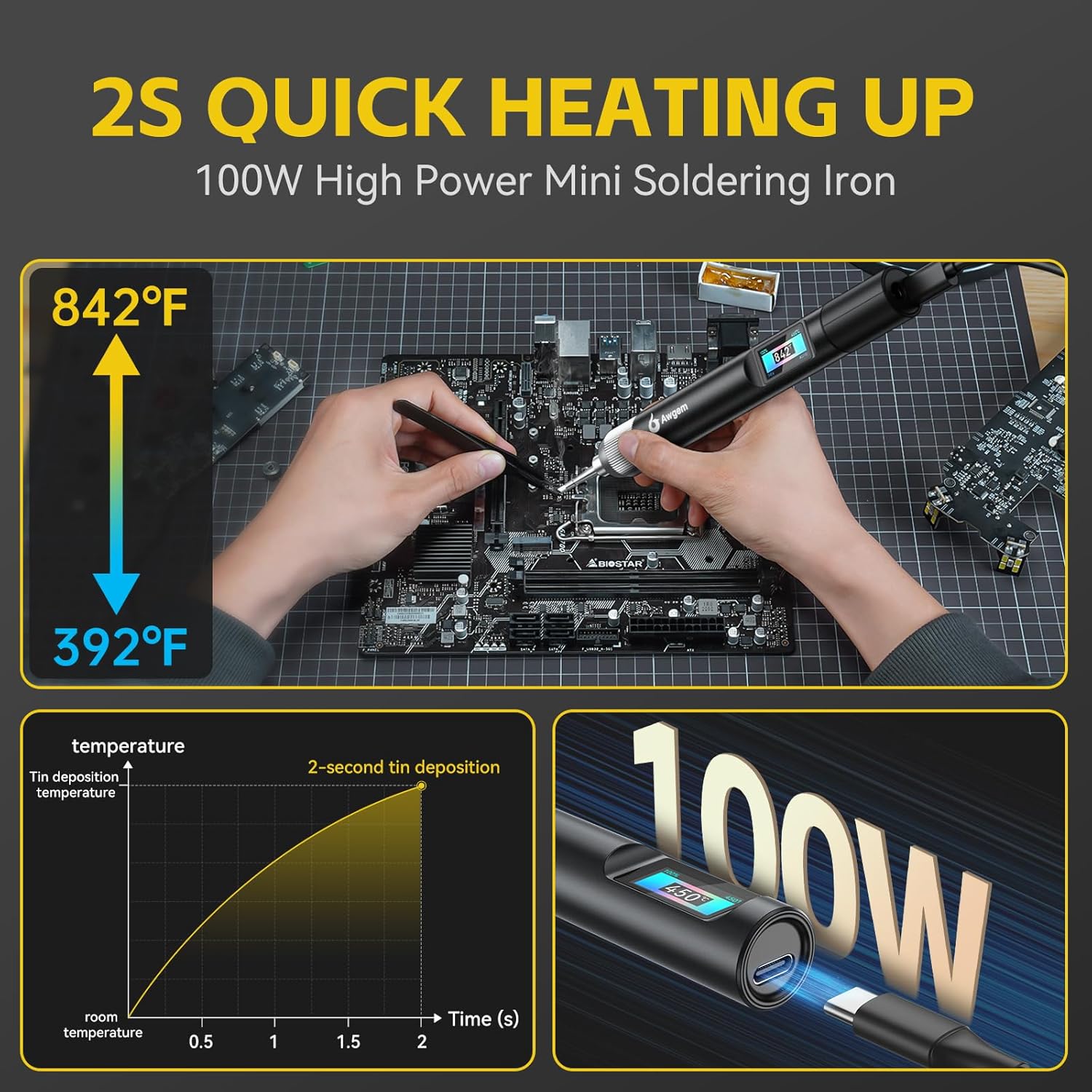

This compact portable soldering iron kit is aimed at quick precision repairs where fast heat and accurate temperature control matter. The Awgem SJ1 model reaches working temperature in as little as 2 seconds and offers three pre-set temperature groups between 390°F and 840°F, making it suitable for small electronics, hobby projects and component rework.
Key Points

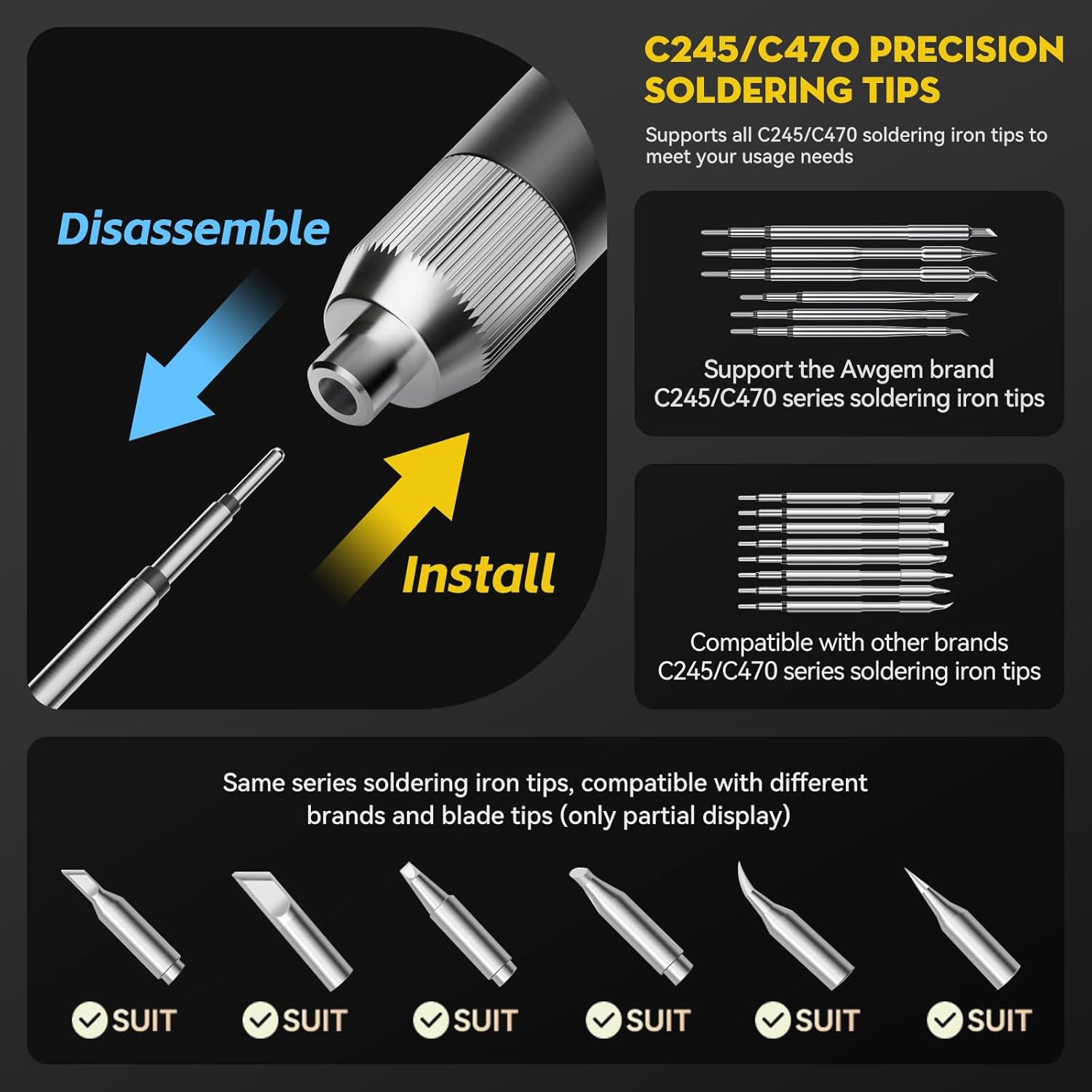

The kit includes the C245-I rapid heating tip, noted for faster tinning and anti-oxidation properties, which helps reduce rework time and prolong tip life. An intelligent gravity sensor puts the tool to sleep after 60 seconds of inactivity and automatically resumes the selected temperature when picked up, helping to save energy and reduce accidental overheating. There is compatibility with other C245 and C470 heads, so existing tips can be reused if you already own them. According to the manufacturer, a 65W fast charging head and a static eliminator are part of the package to support stable operation during mobile use. ⚡️
Technical Specifications
Name
: Awgem SJ1- Power: 100W maximum
- Tip type: C245-I rapid heating soldering tip

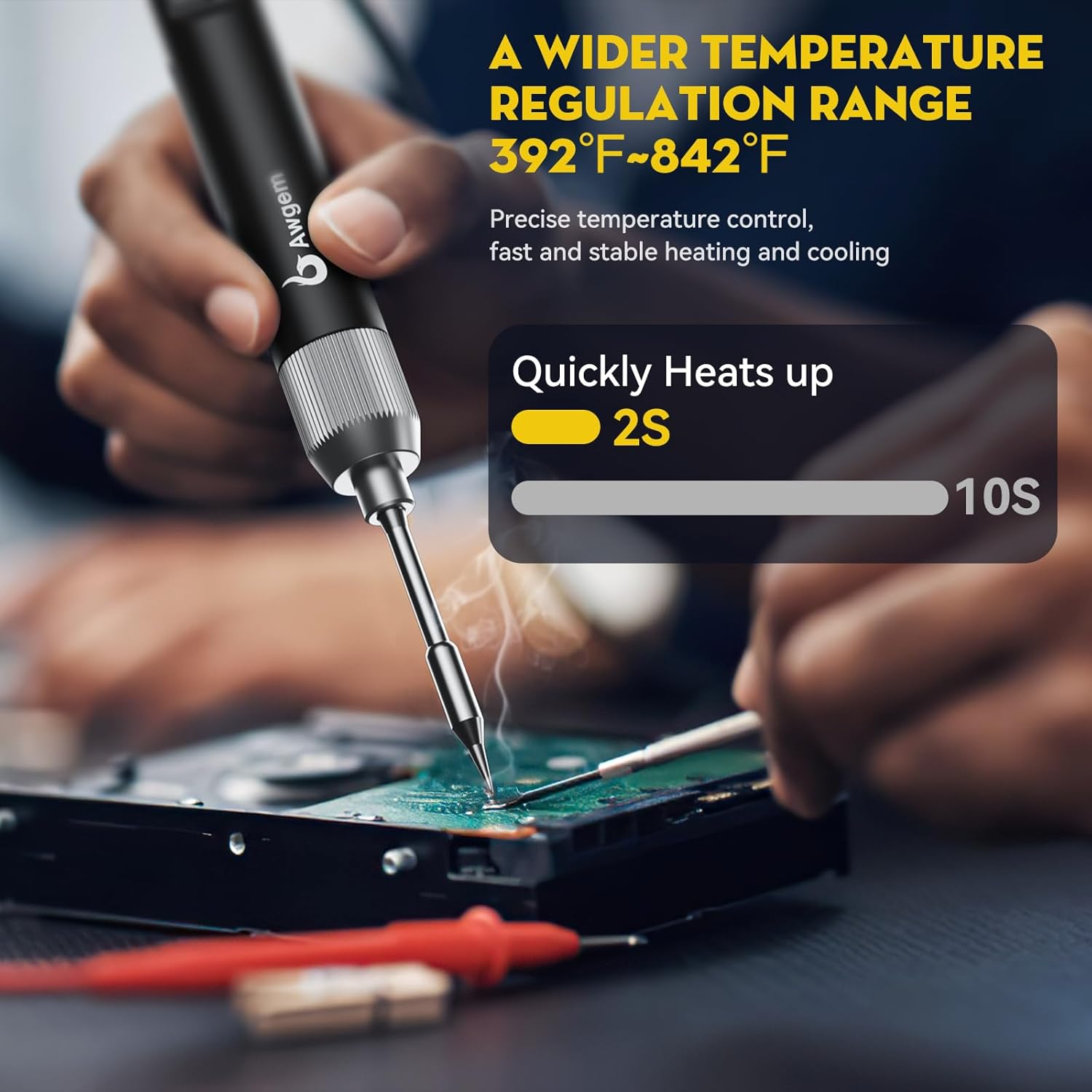

- Temperature range: 390°F–840°F (60°C–450°C)
- Heating time: fastest reheat in about 2 seconds
- Operating voltage/current: 20V ≥ 3.25A, 15V ≥ 2.5A, 12V ≥ 2A, 9V ≥ 1.5A
Usage Recommendations

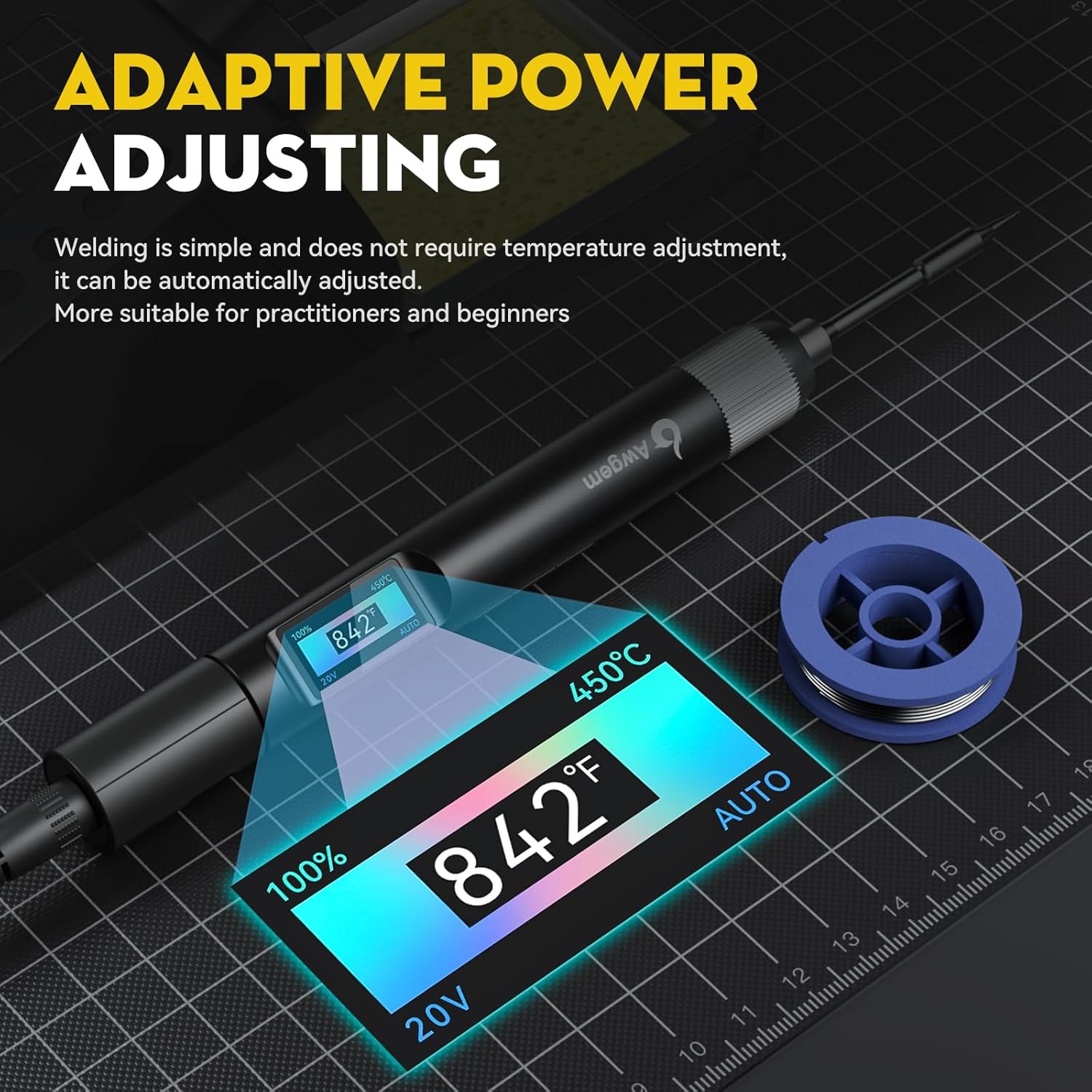

Short pressing the OK button cycles the three temperature levels for quick adjustments on the workbench. The unit also has an intelligent detection chip that can sense the size of the solder joint and adapt temperature accordingly, which can be helpful when switching between fine-pitch SMT work and larger leads. For uninterrupted performance, consider matching your adapter output to the listed voltage and current requirements, because insufficient adapter power may cause the unit to restart during heating. 🔧
Advantages
The fast heat-up and auto-sleep features reduce idle energy consumption and speed up repetitive soldering tasks, especially useful during small repair runs. The ability to reuse C245 or C470 tips makes maintenance and tip replacement more flexible. A minor point to note is that performance depends on the adapter used, and the device may need a higher-output supply for continuous heavy-duty work. 🔁
