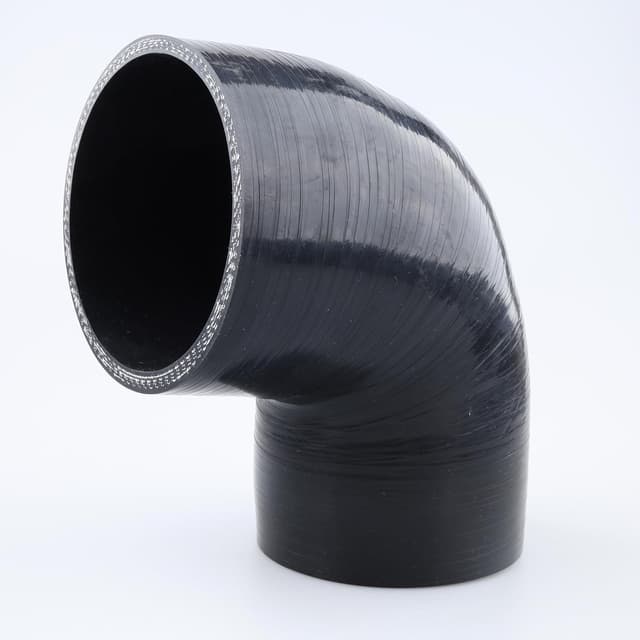

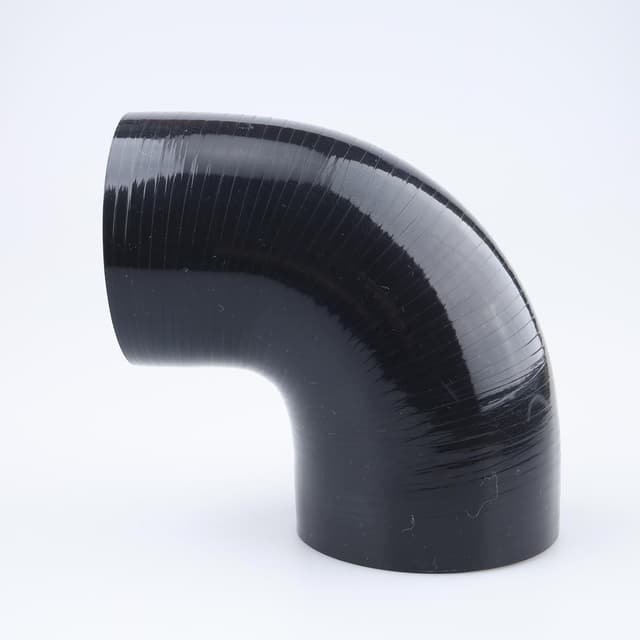

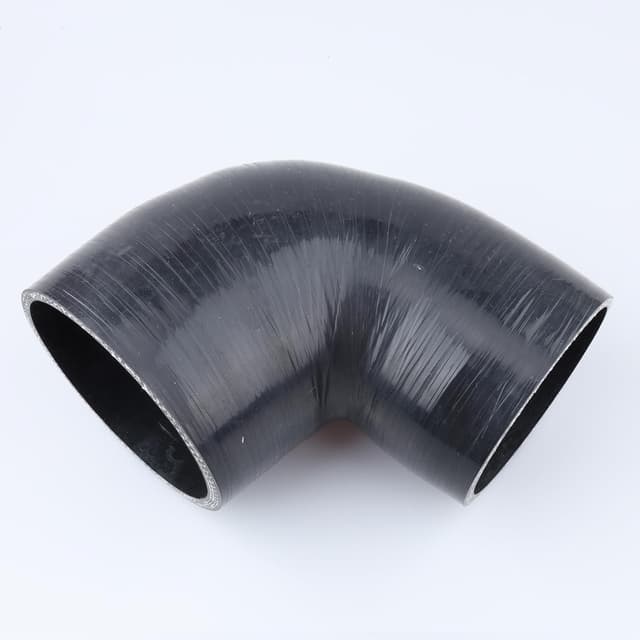

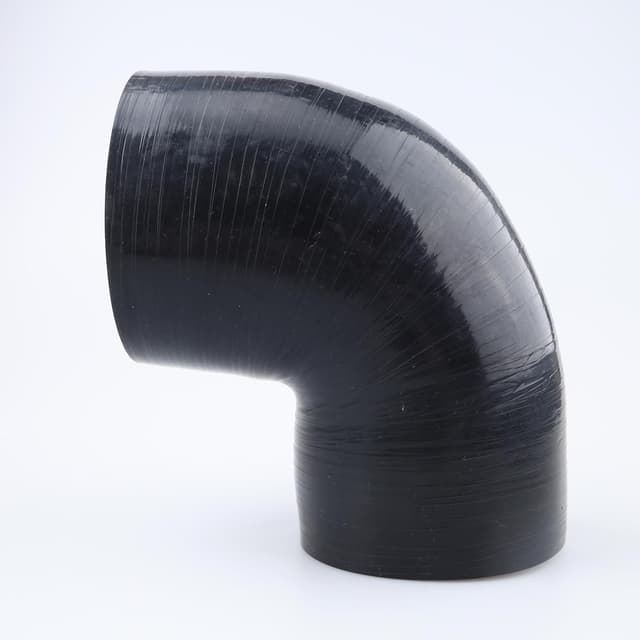

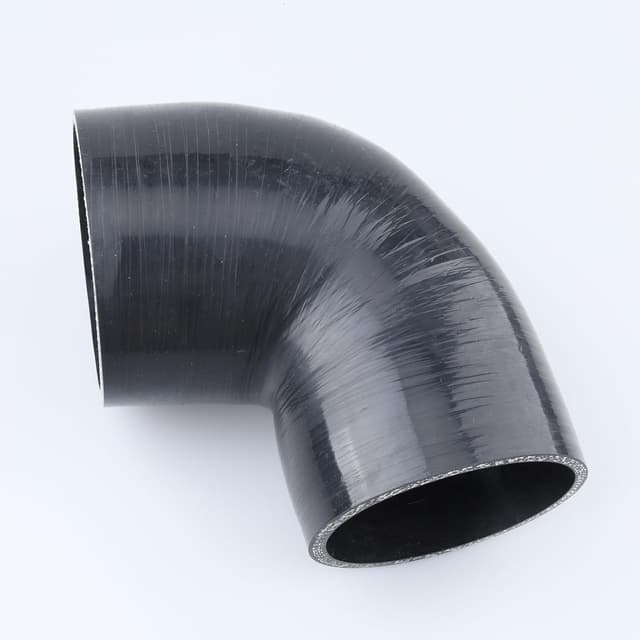

AC Performance 4in to 3.5in 90 Degree Elbow Reducer Coupler silicone hose (102mm to 89mm)
Product description
The essentials
If you’re building or repairing turbo, intercooler, intake, or cooling pipework, this 90 degree elbow reducer coupler is the sort of part that makes the layout actually work. It’s designed to connect hose sections across two different internal diameters (4in down to 3.5in), while keeping the bend compact with a 90 degree angle.
On paper, it reads like a practical, reinforced silicone option: high-temperature reinforced silicone, a 4-ply reinforcement construction, and a stated maximum pressure rating. It’s also described as UV and ozone resistant, which matters more than people expect if you’re running pipework where it sees daylight, engine bay heat cycles, or industrial exposure.
That said, it’s not a magic fix for every install. If your system needs a specific type of end fitting beyond “silicone hose coupler”, you’ll still need to check how it will clamp and seal in your setup.
What it’s for
This AC Performance 90 degree reducer elbow coupler is aimed at fabrication and replacement jobs rather than one-off decorative plumbing. The use cases mentioned include marine and industrial applications, custom turbo or intercooler piping fabrication, and DIY intake or radiator cooling system pipework.
A concrete way it helps in the real world: say you’ve mocked up charge piping and you need to change direction but also step down from a 4in hose to a 3.5in hose at the same time. An elbow alone won’t reduce diameter, and a straight reducer won’t solve the angle. This is meant to do both in one piece, which can simplify your route and reduce the number of joints.
Worth noting that it’s a universal-style automotive silicone hose part, so you’ll still be relying on your chosen hose length, clamps, and how well it matches your system layout.
Key features that affect day-to-day reliability
Where this part leans more convincingly is in the reinforcement and temperature/pressure figures. The manufacturer states: - Temperature resistance from -40C to 250C - A maximum pressure rating of 200 PSI - 0.2inch (5mm) wall thickness - 4-ply polyester reinforcement construction - It meets the SAE J20 standard
Those numbers matter because elbows and reducers often see more stress than straight sections. The reinforcement and thicker wall are intended to help it hold up under heat cycles and operating conditions where a thin, basic silicone piece could be a weak link.
It’s also described as UV and ozone resistant, which is useful if any part of your run is exposed or if the system lives in environments where rubber-like materials can degrade over time.
Tech specs
- Type: 90 degree elbow reducer coupler
- Name: AC Performance ID 4in to 3.5in (102mm to 89mm)
- Leg length: 3.5in (90mm)
- Hose diameter reduction: 4in down to 3.5in (102mm to 89mm)
- Wall thickness: 0.2inch (5mm)
- Construction: 4-ply polyester reinforcement
- Material: universal automotive silicone hose (black)
- Temperature resistance: -40C to 250C (stated -76F to 482F)
- Maximum pressure rating: 200 PSI
- Standard: meets SAE J20 standard
Where it shines (and where it may fall short)
This coupler is a strong fit if your priority is a reinforced silicone 90 degree reducer that’s suitable for DIY and fabrication work where heat and pressure tolerance matter. If you’re piecing together marine/industrial piping, or doing a custom turbo/intercooler layout, it’s the kind of part that can reduce how many components you need at a tight corner.
But there are a couple of limits to keep in mind. Firstly, the part is “universal” by description, yet real-world installation still depends on clamp choice, hose stretch, and how your mating components are made. Secondly, without details on bore finish, exact clamp sizes, or how it behaves under your specific pressure pulses, you should treat the pressure rating and temperature range as guidance for suitability, not a guarantee for every application.
It might not be the best choice if your system demands very precise OEM-style interfaces or if you’re trying to avoid reinforcement-heavy couplers because you’re working in an extremely tight packaging space.
Compatibility & requirements
Because this is a hose coupler that reduces from 4in to 3.5in and includes 3.5in (90mm) legs, it only really helps if your pipework uses those corresponding internal diameters. It also assumes your system uses silicone hose clamping and sealing rather than a rigid, flanged, or threaded connection style.
Before you buy, it’s worth checking: - that your existing hose ends are sized for 4in and 3.5in (102mm to 89mm) internal diameters - whether the 90 degree direction matches the space you’ve got - that you can achieve a proper clamp bite across the 3.5in (90mm) leg length
Is it worth it?
Buy it if you need a 90 degree elbow reducer for reinforced silicone hose work—especially for turbo/intercooler piping fabrication, radiator cooling plumbing, or marine/industrial setups where UV/ozone resistance and temperature tolerance are relevant on the spec sheet.
Skip it if you’re not actually stepping down from 4in to 3.5in, if your system uses a different kind of end connection than a silicone hose coupler expects, or if you can’t confirm how you’ll clamp and seal it in your particular build.
For the sort of DIY fabricator or maintenance job where layout matters, this coupler makes sense: it combines the angle and diameter change in one reinforced piece, which can mean fewer joints at a high-stress corner.
Mini FAQ
Will this coupler handle high temperatures?
It’s stated to have temperature resistance from -40C to 250C, which suggests it’s intended for hot-running automotive and industrial pipework rather than basic low-stress uses.
What pressure rating should I rely on?
A maximum pressure rating of 200 PSI is listed. As always, treat it as the product’s maximum stated figure and make sure your overall system design and installation are appropriate.
Is the part suitable for turbo or intercooler piping?
The description specifically mentions custom turbo or intercooler piping fabrication, so it’s clearly aimed at that type of build.
Does it reduce diameter and change direction at the same time?
Yes. It’s a 90 degree elbow reducer coupler, designed to go from 4in to 3.5in (102mm to 89mm) while turning 90 degrees.
How long are the hose legs?
Each leg length is listed as 3.5in (90mm), which you can use to gauge clamp placement and fit in your layout.
