12V 10A Lithium Battery Charger 14.6V LiFePO4 🔋

This compact smart charger is built for 12 V LiFePO4 deep cycle batteries and brings a three-stage charging routine to boats, RVs and other leisure applications, allowing safe top-up and maintenance charging. If you need a 12V 10A lithium battery charger for regular use, this unit offers automatic float/cut-off behaviour and a low-voltage recovery feature to revive deeply discharged cells.

Key Points

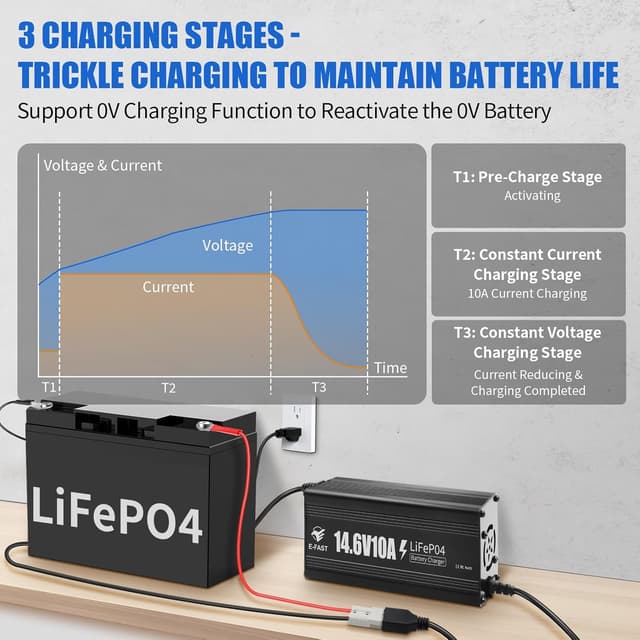

The charger includes a 0 V reactivation mode to bring depleted LiFePO4 batteries back into nominal range, which can be useful after prolonged storage or deep discharge. It operates with an intelligent three-stage algorithm, switching between constant current, constant voltage and float according to battery state, and it has built-in protections against reverse polarity, short circuit and overheating. The housing is aluminium alloy with an integrated cooling fan to help maintain stable output under load. 🔋

Technical Specifications

• Name: YIFASITE 12V 10A LiFePO4 Charger
• Charging voltage: 14.6 V
• Rated charging current: 10 A (model name indicates 10 A), according to the manufacturer a charging current of 20 A is also referenced.
• Input voltage: 100 V–240 V AC, 50 Hz–60 Hz
• Suitable battery: 12 V LiFePO4 (12.8 V) deep cycle rechargeable batteries

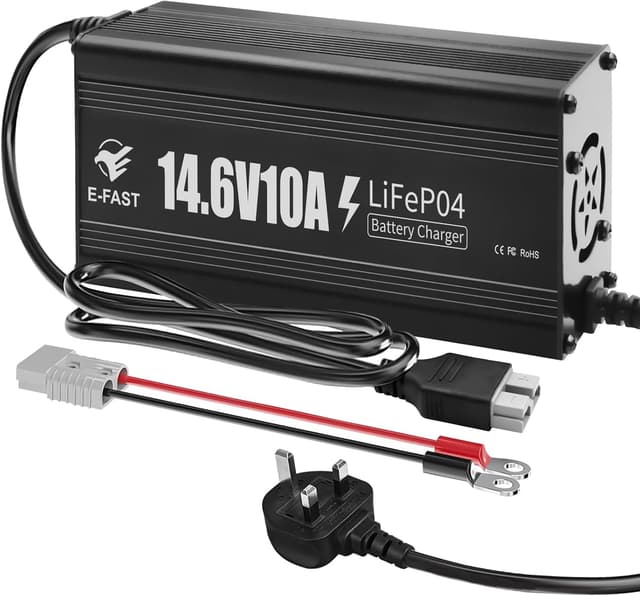

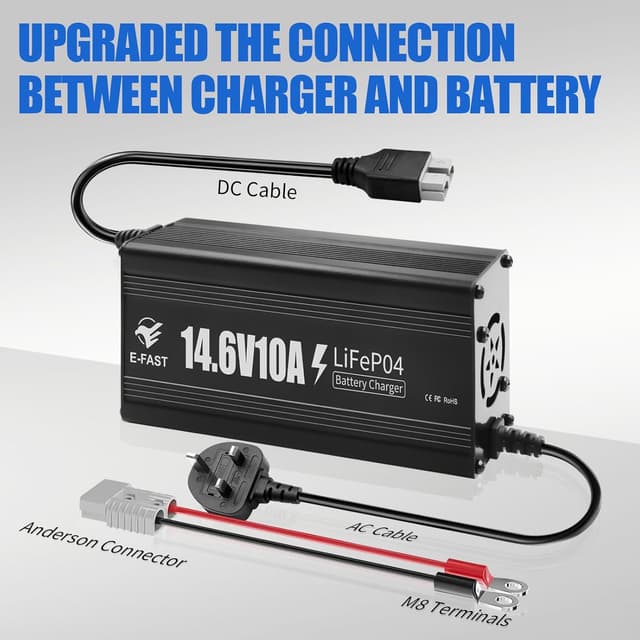

• Connector: M8 terminals and 50 A Anderson connector
• Cooling: Aluminium alloy case with built-in fan

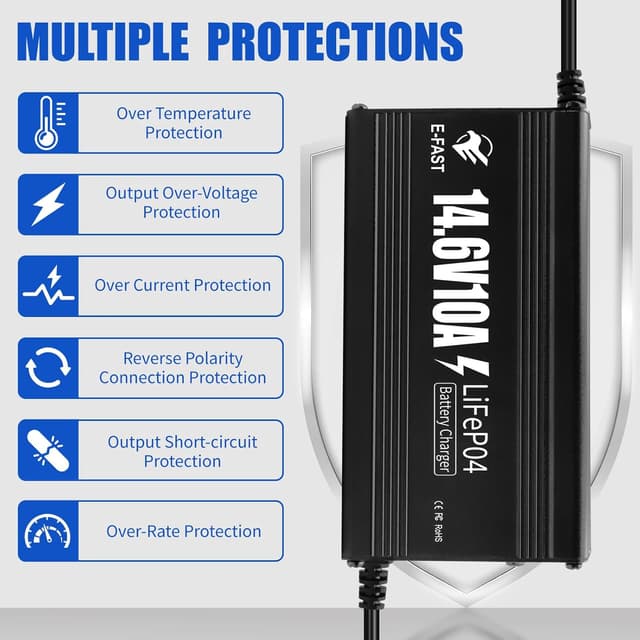

• Protections: overvoltage protection, short-circuit protection, overheating protection, reverse polarity protection, automatic CC/CV and float cut-off.

Benefits

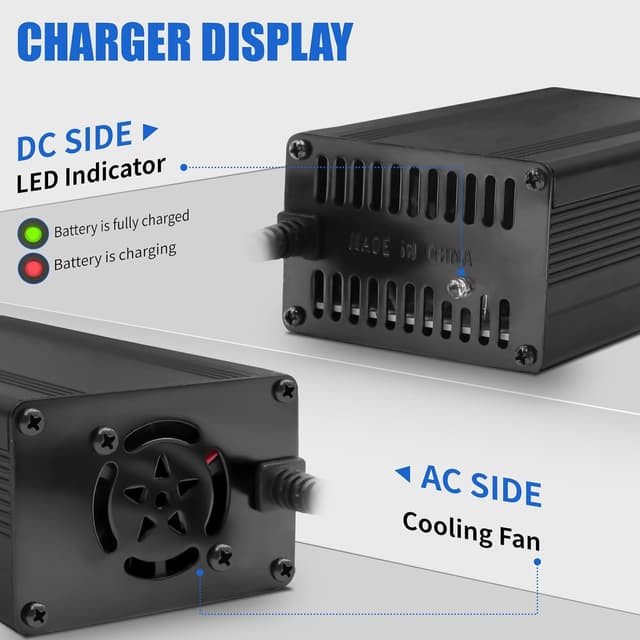

This charger simplifies battery maintenance by combining rapid recharge capability with automatic switching to a maintenance float mode, so batteries can be left connected without overcharging. The Anderson connector and upgraded M8 terminals make it quicker to hook up on boats or in mobile setups. For users monitoring status, an indicator shows charging progress and alerts for fault conditions. ⚡

Usage Recommendations

Use this charger exclusively with LiFePO4 chemistry as specified. Consider that the product title and the body specs mention different charging current figures, so match the unit to your battery's recommended charge current before prolonged use, especially with larger capacity packs. The unit is suited to applications such as marine leisure and recreational vehicles where reliable, ventilated charging and a compact footprint are valued. 🔧.
