BGS 8653 Glow Plug Thread Repair Kit for M8, M9, M10 and M12
Product description
Some glow plug thread repairs need a tool set matched to a particular thread, others call for more size options in one kit. The hand-operated BGS 8653 is designed to repair the glow plug mounting thread in a cylinder head. Its reamers, taps, assembly tools and threaded sleeves cover M8, M9, M10 and M12 sizes. That range helps you select the components for the thread being repaired.
Usage tips
Start by identifying the original thread size and pitch, then choose the matching reamer and tap from the set. The five reamers cover M8 x 1.0 mm, M9 x 1.0 mm, M10 x 1.0 mm, M10 x 1.25 mm and M12 x 1.25 mm. Matching taps are provided for preparing the threaded sleeves, alongside a separate set of taps for trimming the original thread. The assembly tools are used to insert the sleeves, so the kit brings together the tools for the different stages of this repair.
The sleeves are supplied in several sizes and lengths: M8 x 1.0 mm and M9 x 1.0 mm sleeves are 11 mm long, M10 x 1.0 mm sleeves are available at 12 mm and 19 mm, while M10 x 1.25 mm sleeves are 12 mm long. For M12 x 1.25 mm, the available lengths are 12 mm, 19 mm and 26 mm. Matching both the thread specification and sleeve length to the repair helps you choose the appropriate components for the job.
Benefits
Rather than being centred on one thread size, this kit covers several common glow plug thread specifications, including both M10 pitches. That makes it useful for repair work across different thread requirements without relying on a single-size tool set. The dedicated reamers and taps give each operation its own matching tool, while the assembly tools support sleeve insertion.
The range of sleeve lengths adds another practical choice when selecting a replacement for the damaged mounting thread. For a workshop carrying out glow plug thread repairs, having the relevant sizes and insertion tools together can make it easier to prepare for a job once the original thread has been identified. The hand-operated design also means the tools are operated manually.
What to know

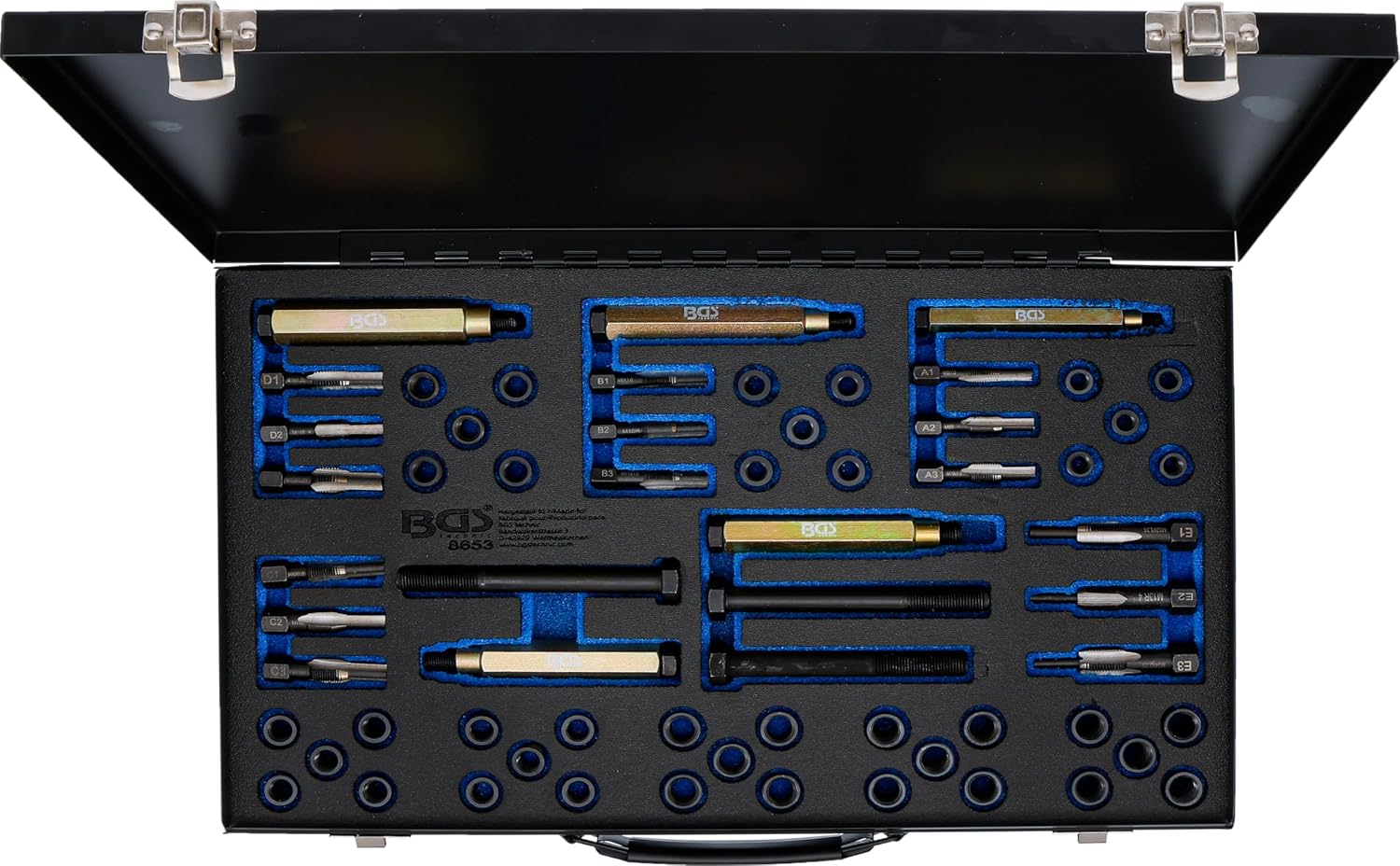

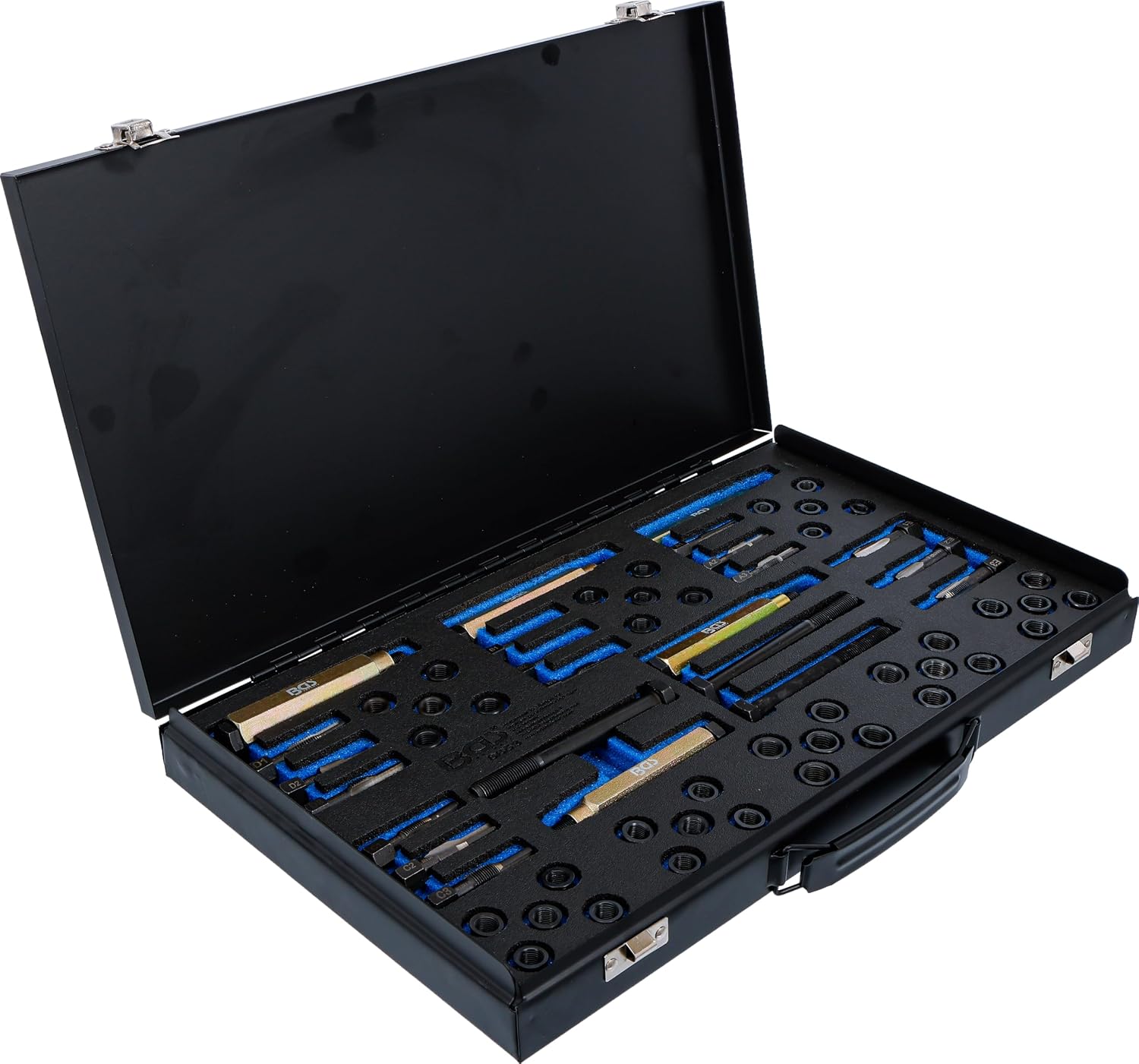

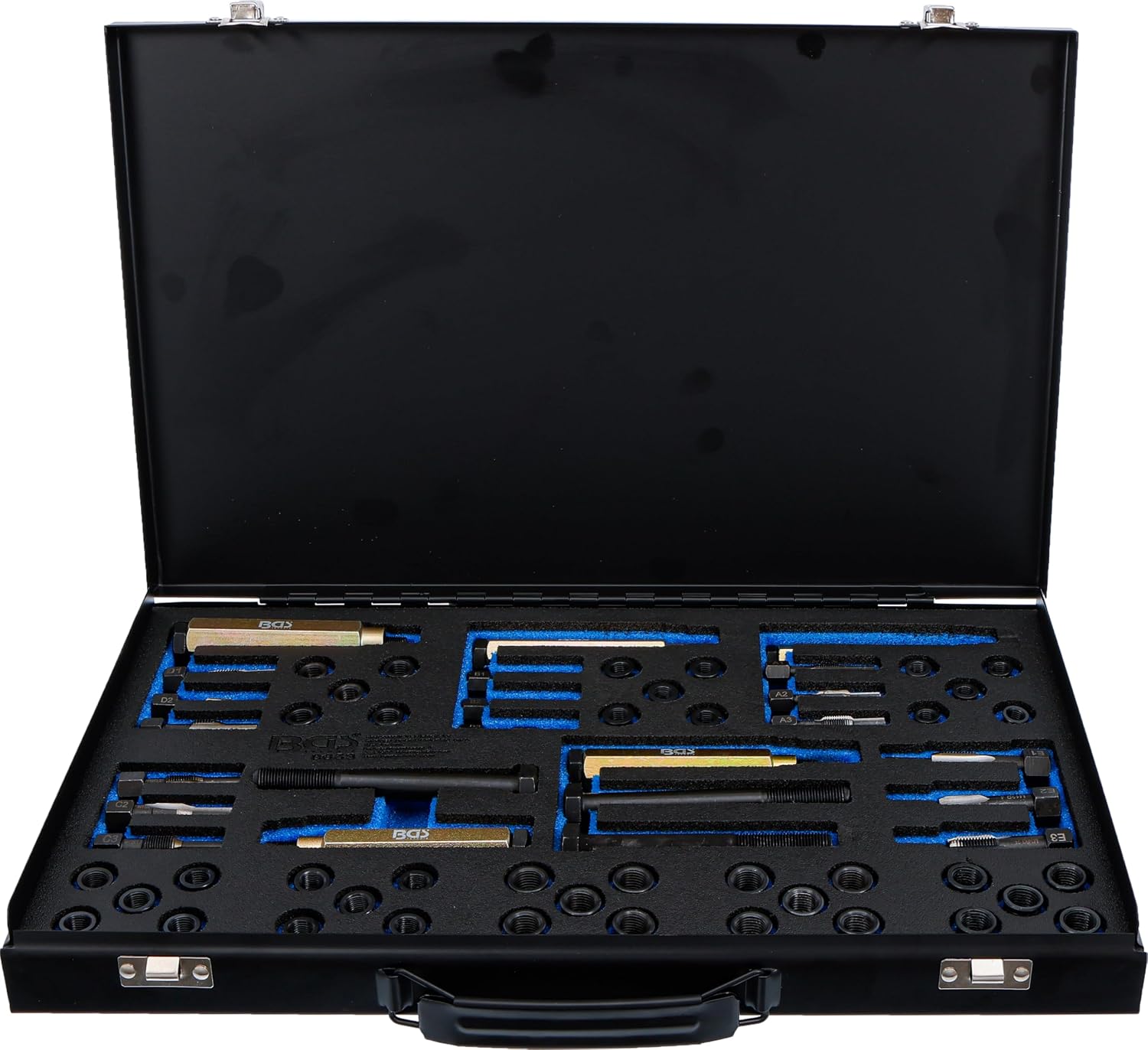

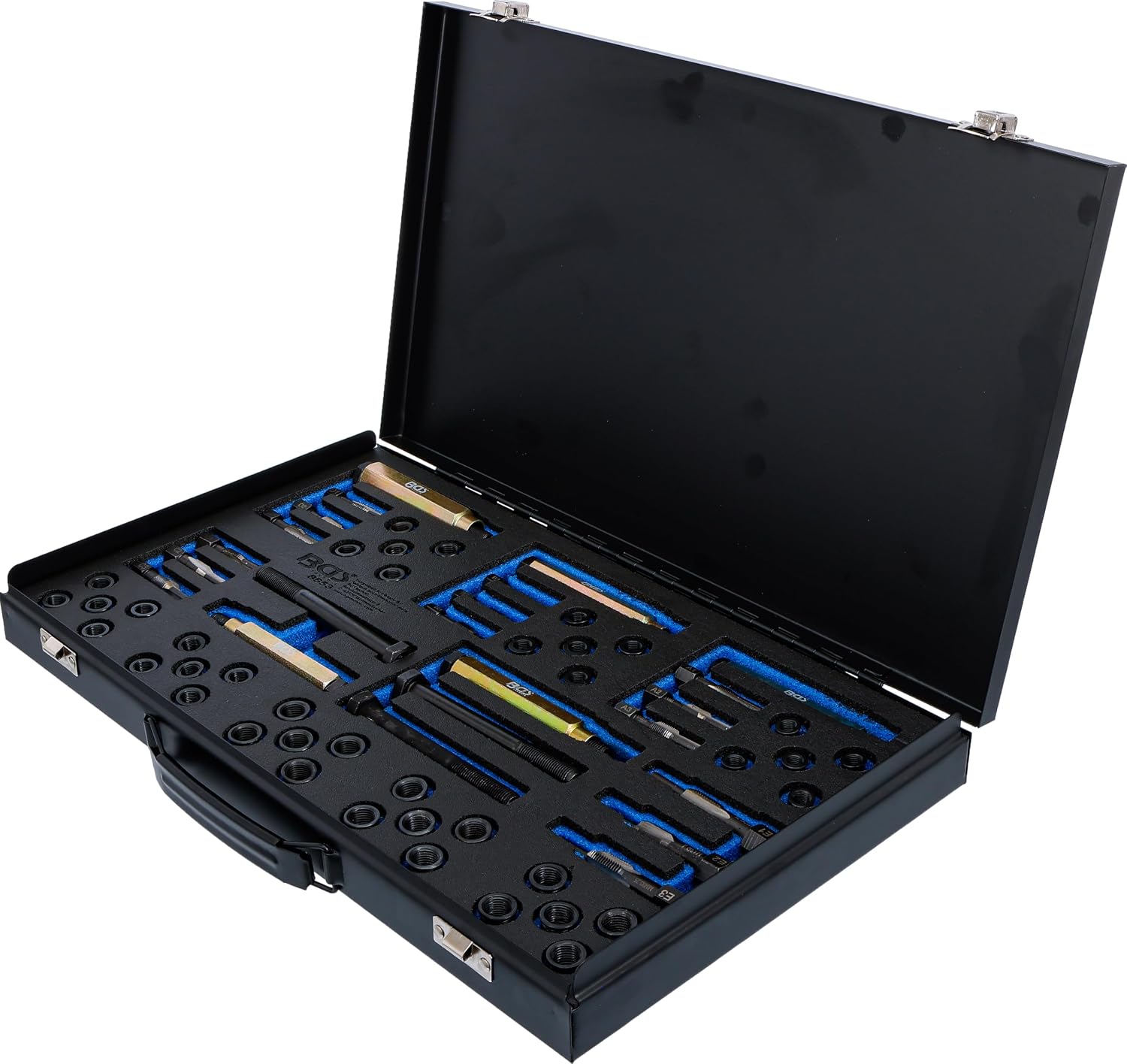

The BGS 8653 is specifically intended for repairing the glow plug mounting thread in a cylinder head. Its reamers and taps cover M8 x 1.0 mm, M9 x 1.0 mm, M10 x 1.0 mm, M10 x 1.25 mm and M12 x 1.25 mm. The set includes five reamers, five taps for threaded sleeves, five taps for trimming the original thread and five assembly tools for inserting sleeves.
Threaded sleeves are supplied in packs of five for each listed size and length: M8 x 1.0 mm (11 mm), M9 x 1.0 mm (11 mm), M10 x 1.25 mm (12 mm), M10 x 1.0 mm (12 mm and 19 mm), and M12 x 1.25 mm (12 mm, 19 mm and 26 mm). Checking the original thread specification against these sizes is the key step in choosing the right components for a repair.
Is it worth it?
For mechanics or vehicle owners undertaking a glow plug thread repair, the main benefit is having tools and sleeves for several thread sizes and sleeve lengths in one hand-operated kit. It is a practical fit for work on cylinder-head glow plug mountings where the original thread needs repair and the correct size can be matched to the job.
