XMSJSIY RCA-to-Phoenix audio cable, 50 cm
Product description
A Phoenix-terminal audio processor can be awkward to connect to equipment with an RCA socket. This short cable bridges the two connector types, so you can make the connection without assembling a custom lead.

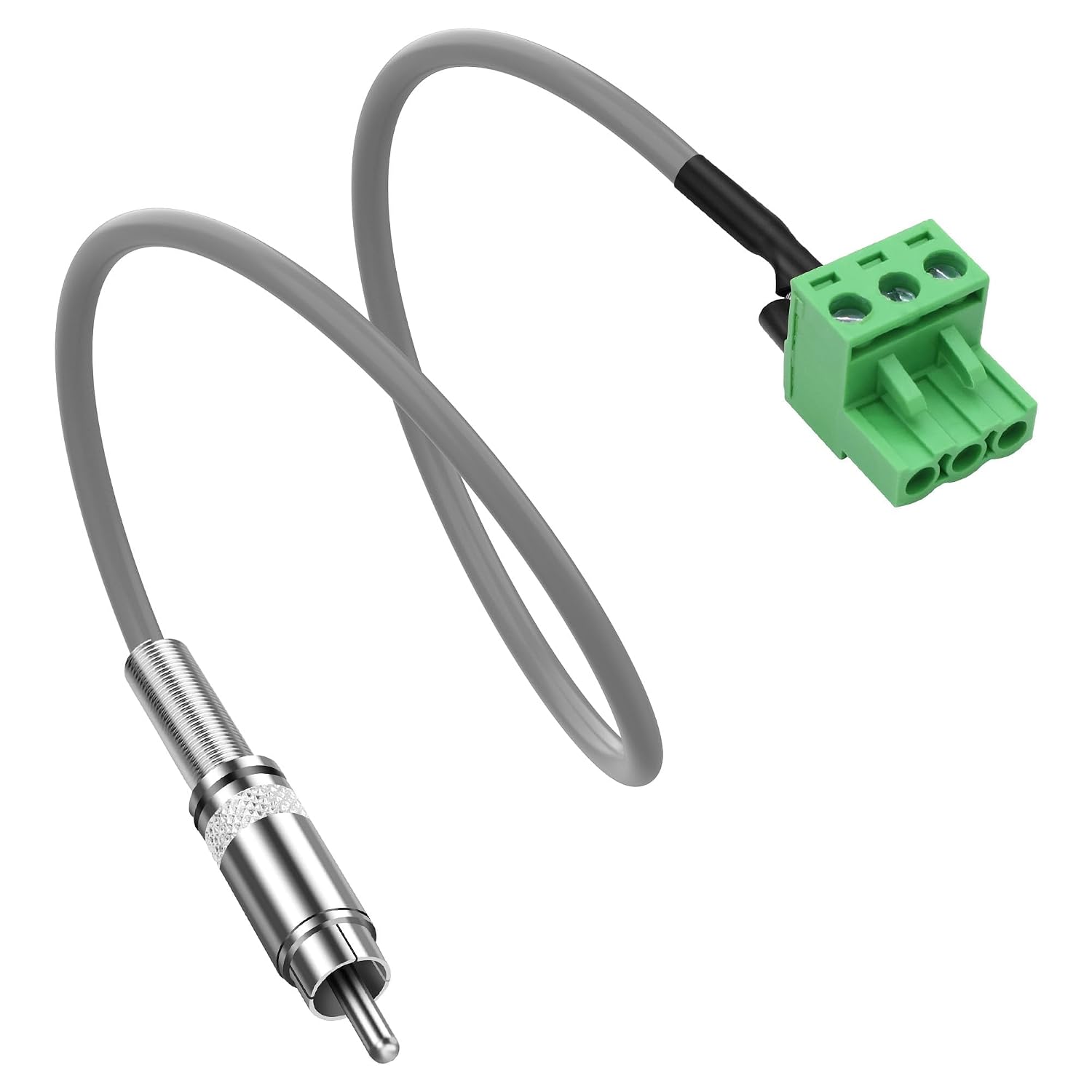

One end has a male RCA plug, the other is a three-pin Phoenix terminal block with a 5.08 mm pitch. The cable is 50 cm long, making it a focused connection lead rather than a solution for a long run.
For example, it could link an RCA-equipped audio source to a compatible amplifier or processor input with screw terminals. If you prioritise a quick connector-to-terminal bridge, this format is practical, if you prefer a longer, ready-made RCA-to-RCA lead, this is the wrong layout.
Getting the most from it

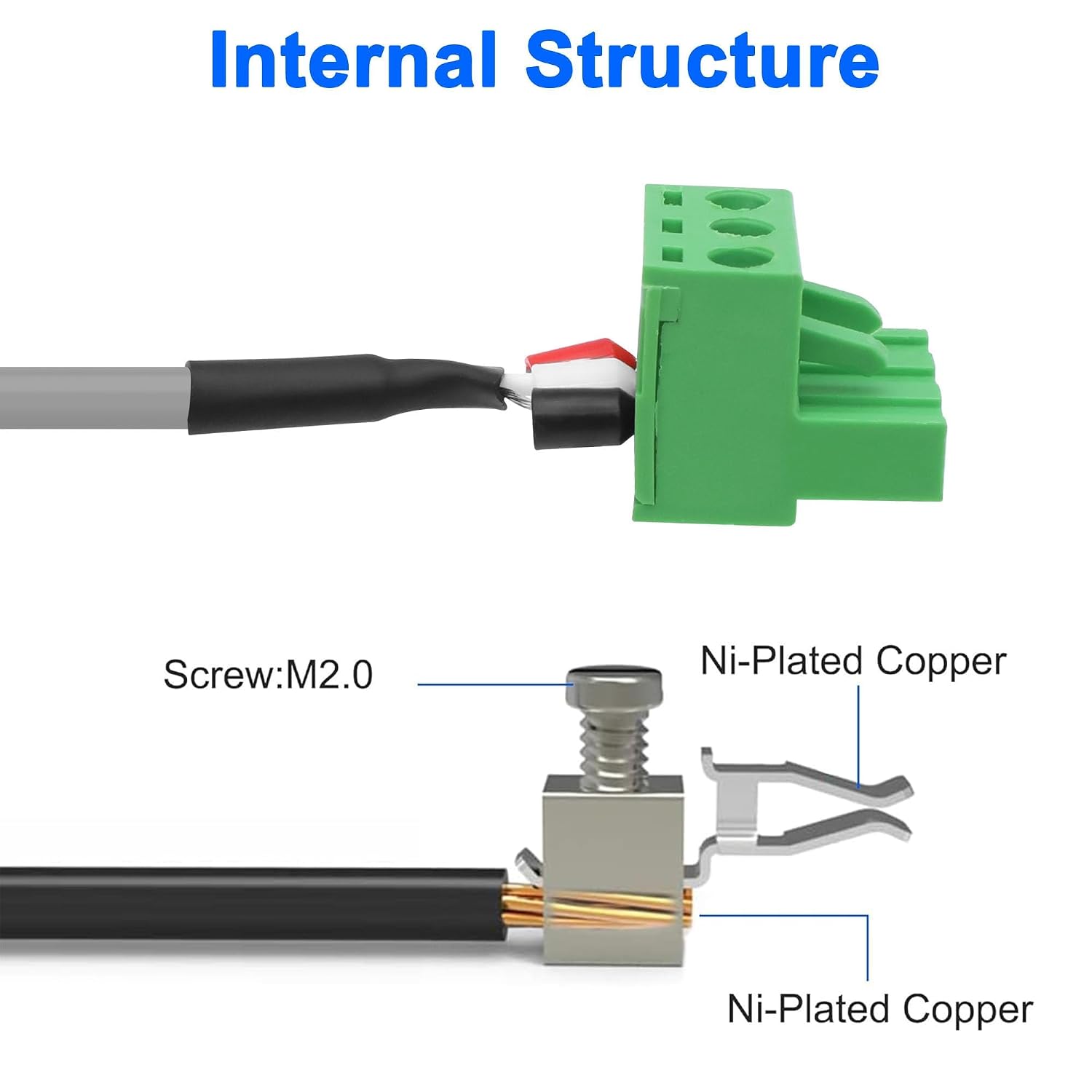

Insert the RCA plug into the matching socket, then connect the wires at the Phoenix block. The terminal screws can be loosened with a Phillips screwdriver, which allows the wire to be secured or replaced. The listed wire range is 12–24 AWG, and the release length is 7–8 mm, so strip only enough insulation to fit the terminal securely.
Before wiring, identify the signal and ground positions required by your equipment. The product details specify three pins but do not provide a pin-by-pin wiring diagram, the connector’s pin count alone does not confirm how a particular device assigns them. This matters when connecting audio processors, amplifiers or other equipment with screw terminals.
Why it’s worth it

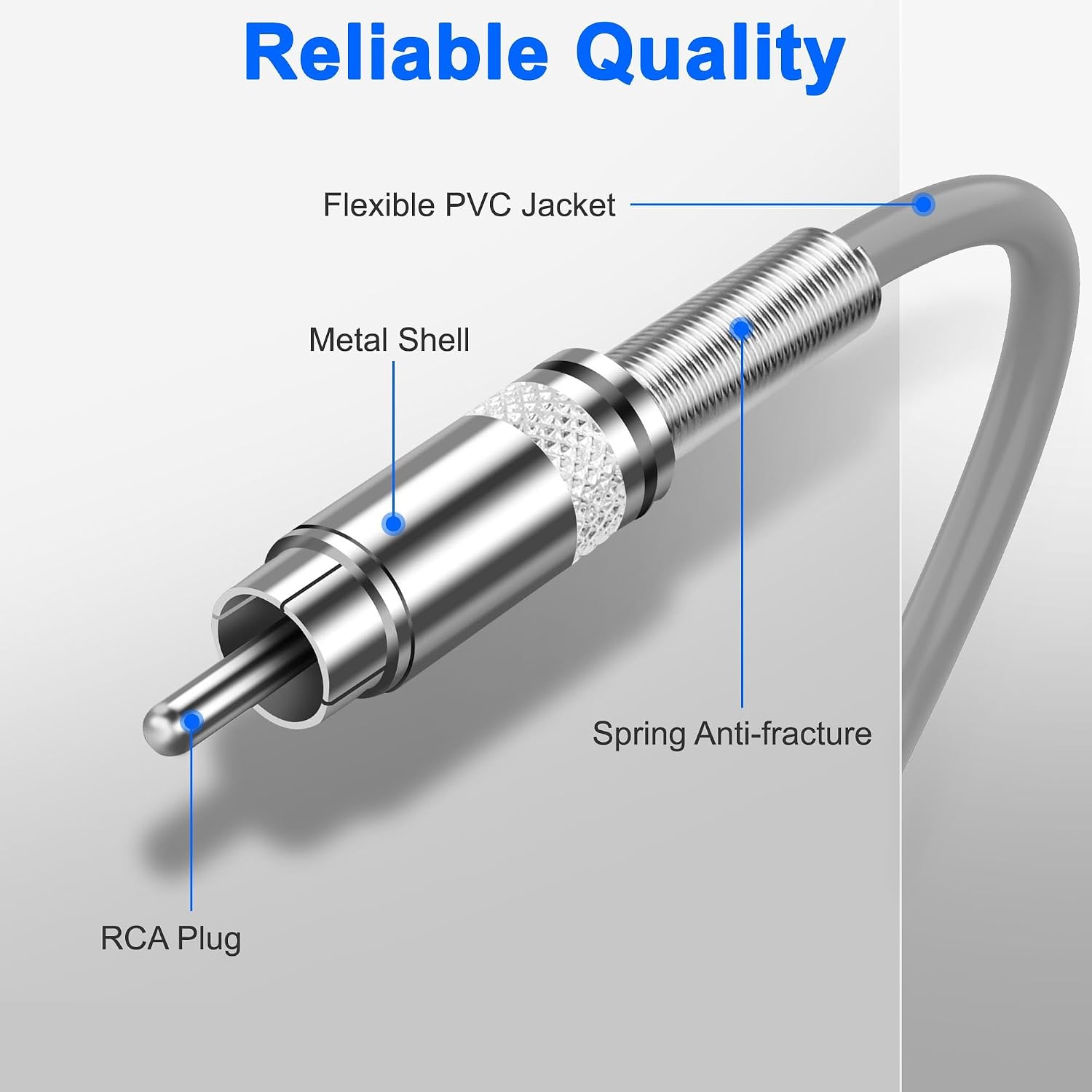

The main benefit is the direct change from a male RCA connection to a Phoenix terminal block, avoiding a separate adapter-and-cable arrangement. At 50 cm, it suits a nearby connection in a home theatre, car-audio installation or monitoring setup where the devices are close together. The spring protection at the cable joint is intended to reduce strain from twisting, while the terminal screws make the wired end easier to service than a permanent splice.
The listing describes metal RCA joints and oxygen-free copper core pins for signal transmission, according to the manufacturer. It also gives a rated voltage of 300V and a current of 20A, those figures do not replace checking the requirements and wiring layout of the audio equipment you plan to connect. This is a connector cable, not a longer run of speaker wire or a complete installation kit.
Key takeaways

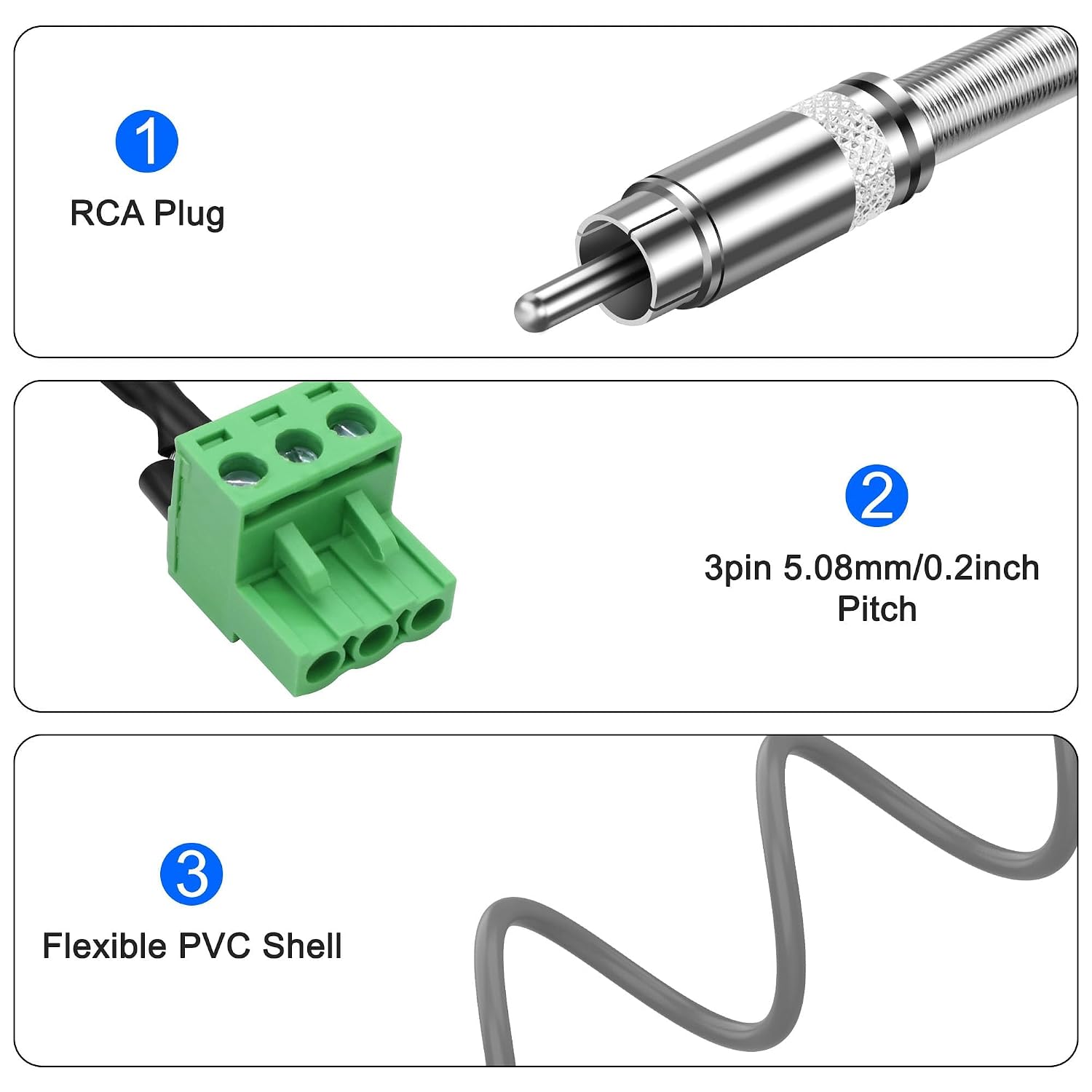

- Male RCA plug to three-pin Phoenix screw terminal block.

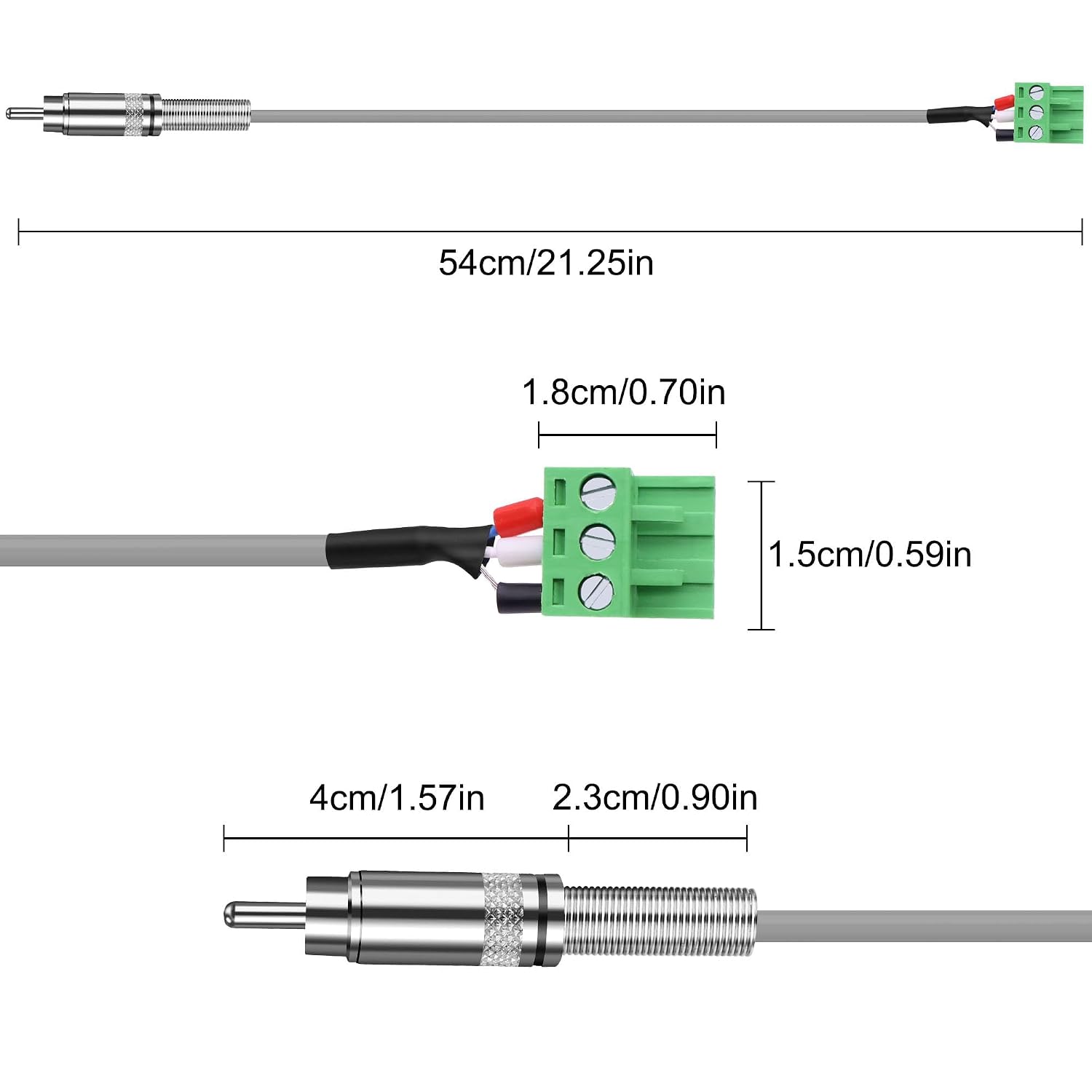

- 5.08 mm terminal spacing and 50 cm cable length.

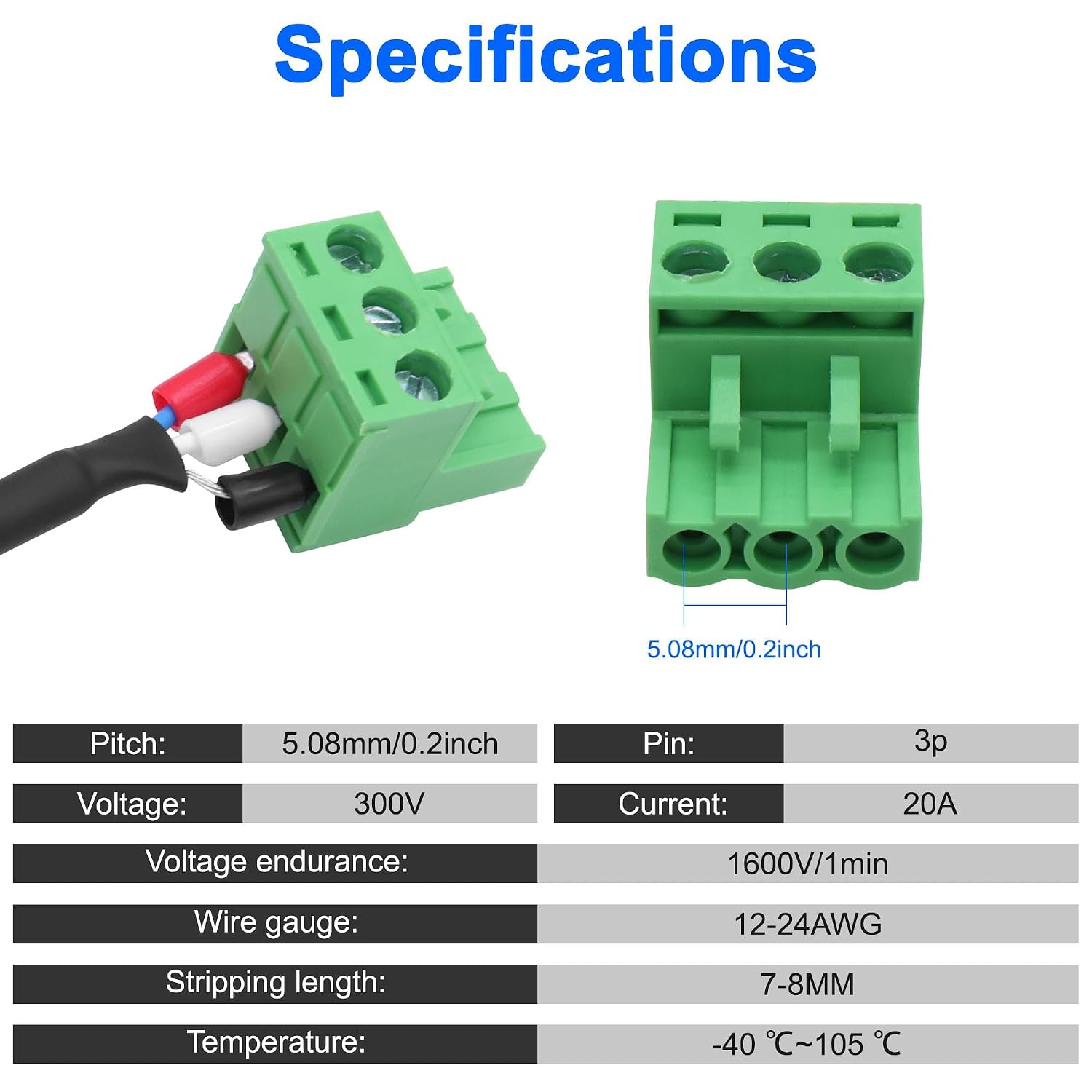

- Listed wire range: 12–24 AWG, release length: 7–8 mm.
- Intended for audio connections involving compatible subwoofers, amplifiers, speakers and audio processors.
- The product details do not specify the pin assignments, so match the wiring to your device before connecting.
It suits you if you need a short, serviceable bridge between an RCA socket and a Phoenix terminal. It is not worth it if your equipment uses matching RCA sockets at both ends, needs a longer cable, or requires a confirmed pinout that the listing does not provide.
When to choose it
Choose this cable when the connector mismatch is the specific obstacle and the devices sit within its 50 cm reach. It can keep a small audio setup tidy—for instance, with an RCA source beside a Phoenix-equipped processor—without adding another adapter at the terminal end. For a longer distance, a different cable length is the more appropriate approach, for an unfamiliar terminal layout, confirm the wiring requirements before buying. That distinction is more useful than focusing on the connector alone: the cable solves the physical connection, but it cannot establish whether the devices’ signal assignments match.
