USX MOUNT XML008 Full-Motion TV Wall Mount, 132 lb, VESA 600 × 400 mm

Dual articulating arms let you swivel, tilt and extend your TV to suit different seats around the room. The USX MOUNT XML008 supports TVs up to 132 lb and offers a broad VESA fit. Could a more adjustable viewing position make your room easier to use? Its arm reaches out when you need it and retracts close to the wall when you don’t.

At a glance

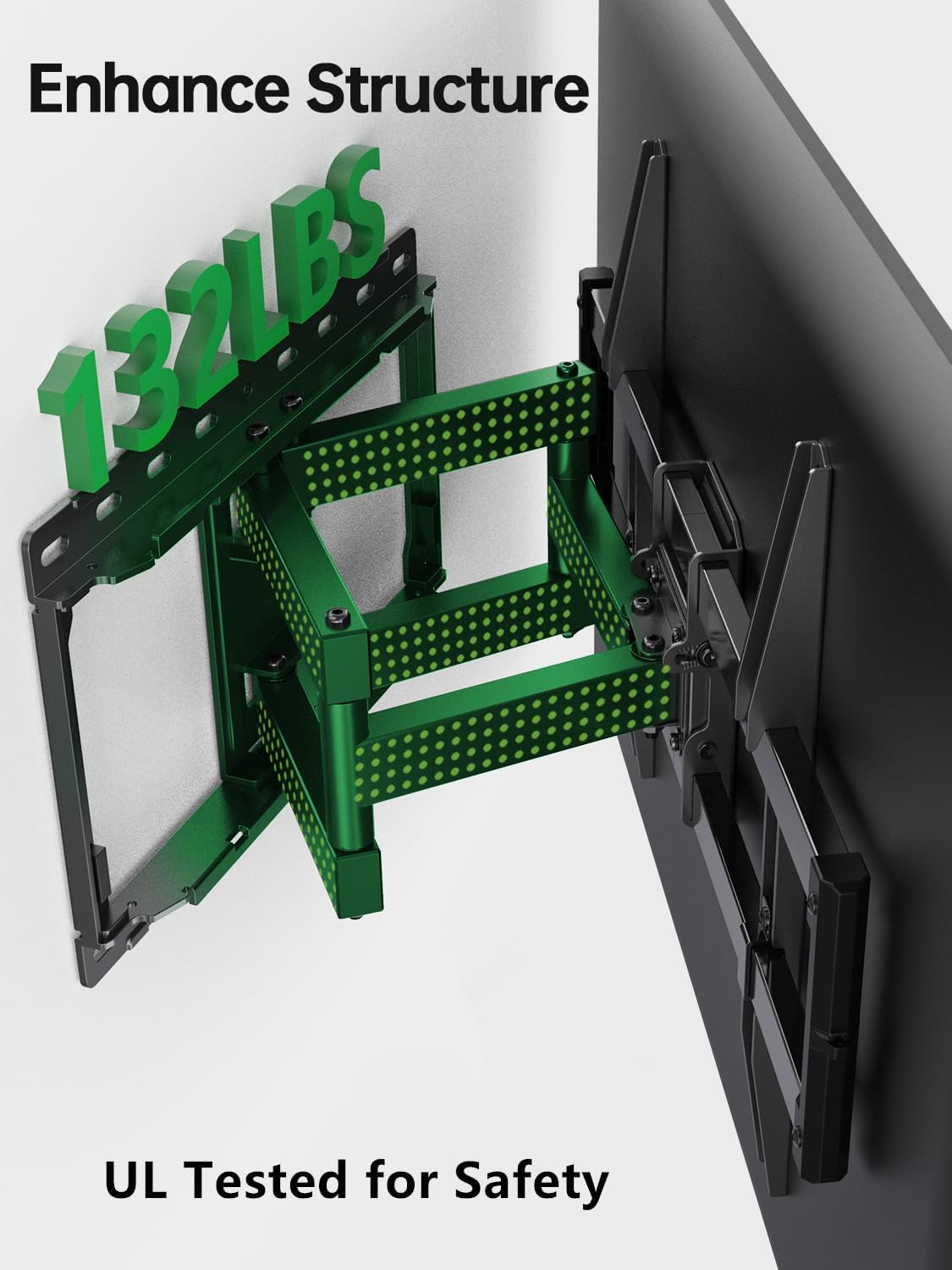

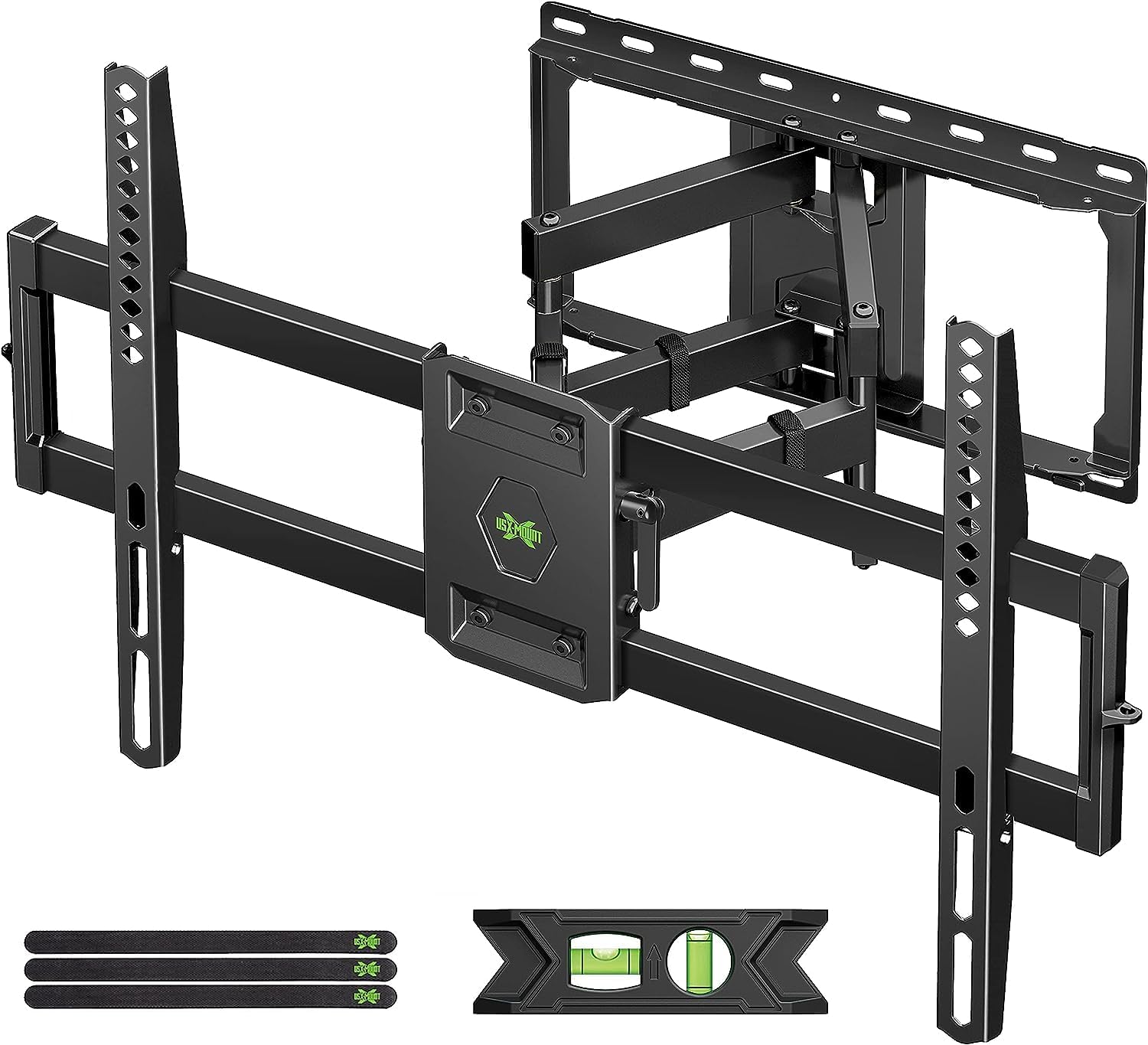

This full-motion wall mount is made from alloy steel and finished in black. It accommodates compatible TVs with VESA patterns from 200 × 100 mm to 600 × 400 mm, with a maximum supported weight of 132 lb. The dual-arm design combines tilt and swivel adjustment, while post-installation adjustment helps fine-tune the TV’s level. That flexibility is useful in living rooms where seating is spread out or where the screen needs to move between viewing positions.

How it fits

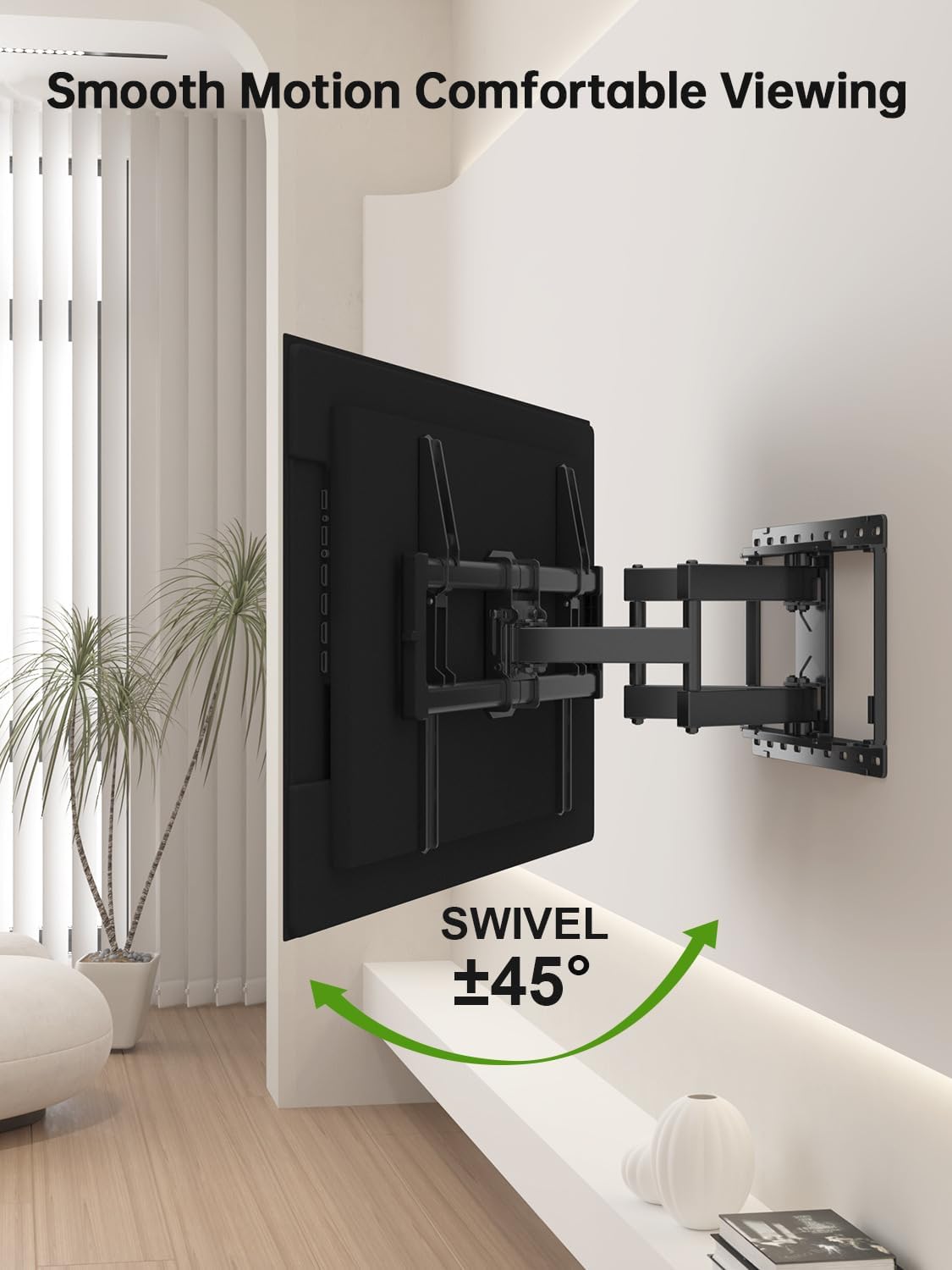

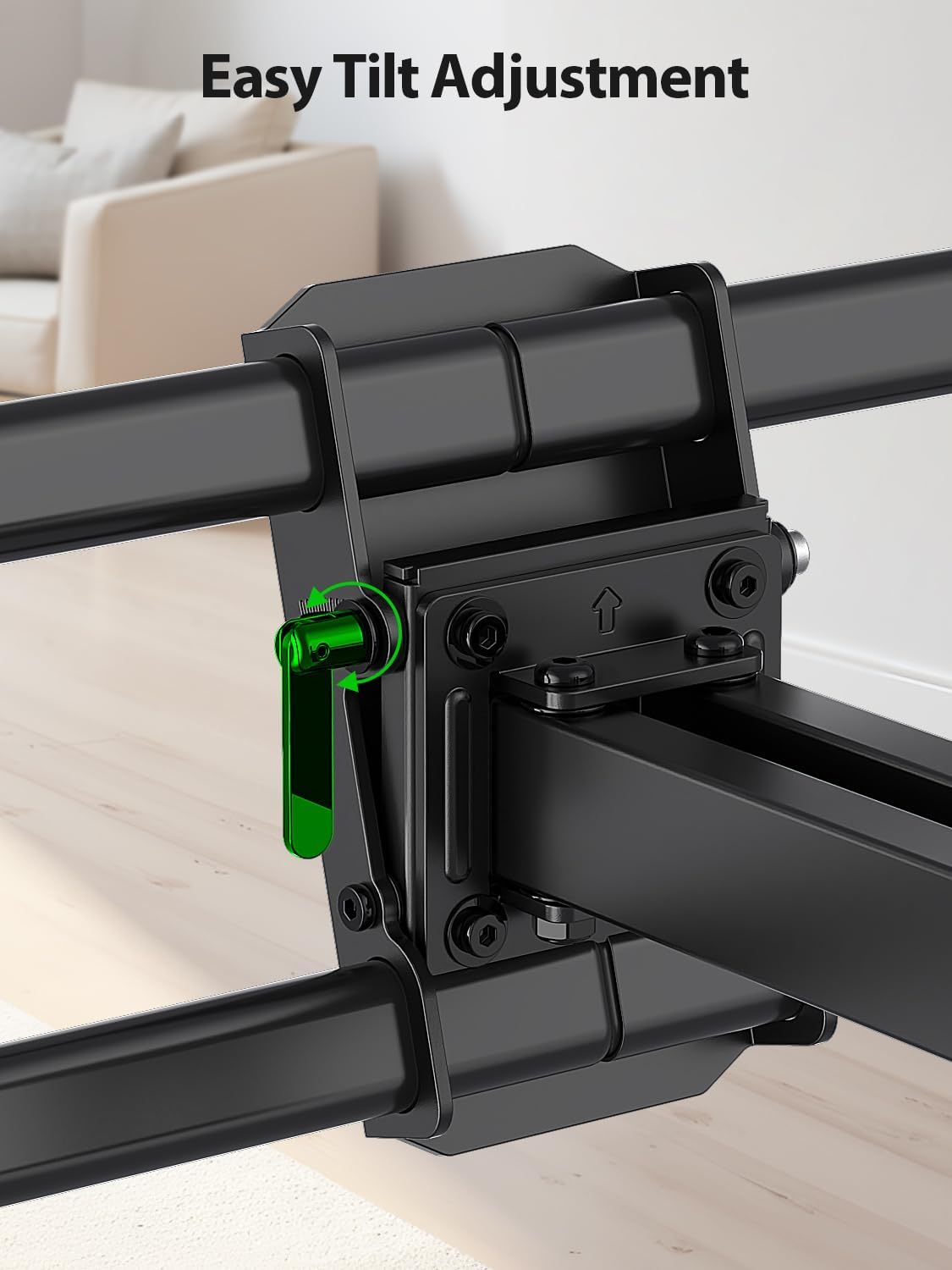

Extend the mount up to 16.49” for a more accessible viewing angle, then retract it to 2.40” from the wall to keep the setup closer to the wall when the TV is not being adjusted. The arms provide +5°/-15° tilt and up to ±45° swivel, the maximum swivel angle depends on the TV. After mounting, ±3° adjustment helps centre the screen visually. These movements make it easier to direct the picture towards a sofa, dining area or another seat without relocating the television.

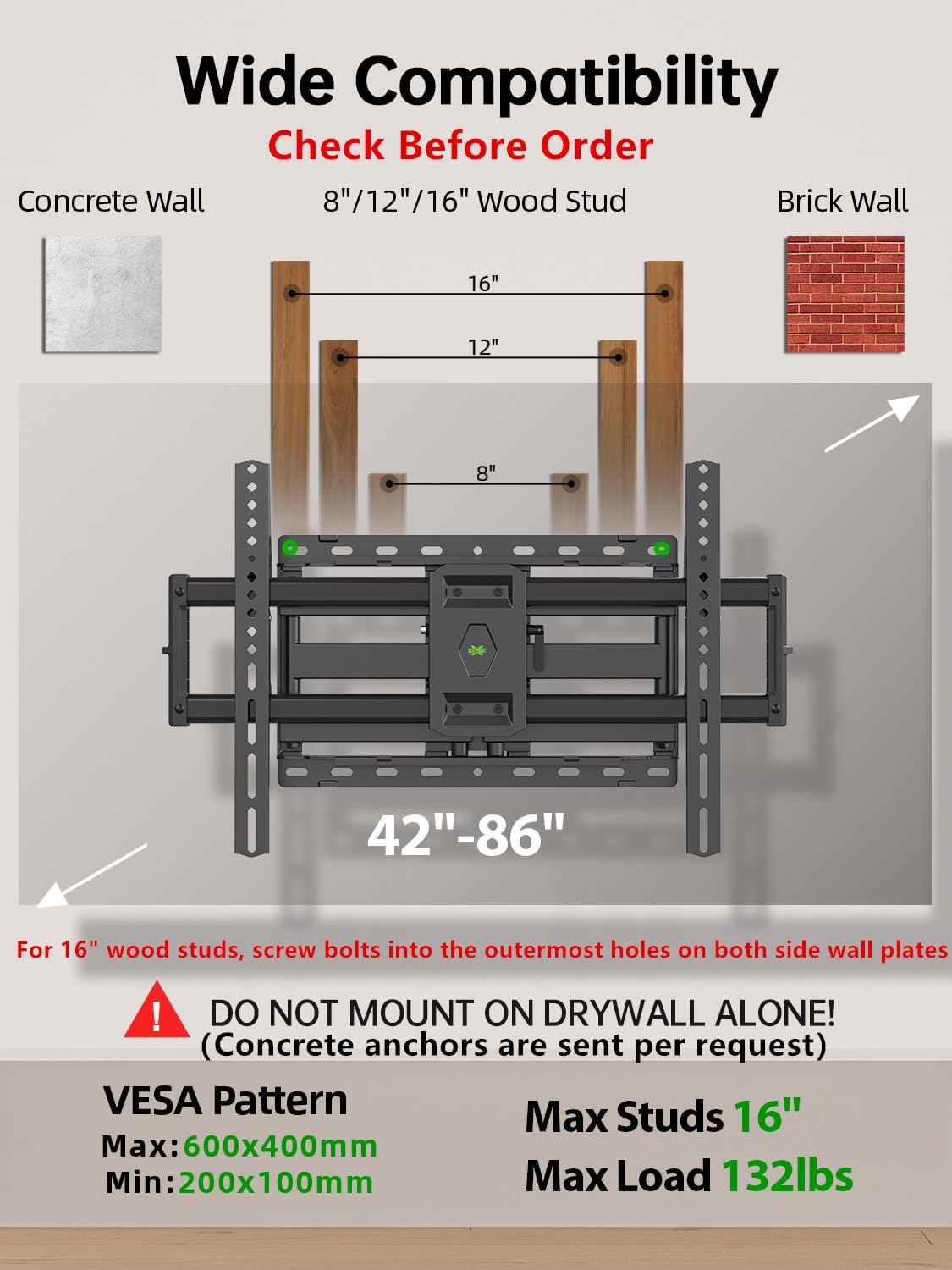

Installation is designed for wood studs or a solid concrete wall, and the mount fits wood stud spacing up to 16”. It is not intended for installation on drywall alone. For a concrete wall, arrange suitable concrete anchors, the package does not include them. The installation kit includes a mounting template, bubble level, user manual, cable ties and standard mounting hardware in labelled bags, making it easier to identify the hardware during setup. Match the TV’s VESA pattern and weight to the mount before installation, and secure it to an appropriate wall structure.

Who it’s for

Choose this style of mount if a fixed bracket would leave the screen facing only one part of the room. The XML008 gives you room to pull the TV forward for an adjusted viewing position, angle it with the swivel and tilt movement, or bring it back towards the wall when you want a tidier layout. It suits you if you want adjustable positioning while keeping the installation anchored to wood studs or solid concrete. For a straightforward screen position that never needs to change, a fixed mount takes a different approach, this model is built for greater flexibility.

Practical questions

What VESA patterns does the XML008 support? It fits compatible patterns from 200 × 100 mm through 600 × 400 mm. The TV must also be within the mount’s 132 lb weight limit.

How far can the TV move from the wall? The arm extends up to 16.49” and retracts to 2.40”. It also tilts +5°/-15° and swivels up to ±45°, depending on the TV.

Can it be installed on a concrete wall? Yes, it is designed for solid concrete as well as wood studs. Concrete anchors are not included, so arrange suitable anchors for that installation. Do not mount it to drywall alone.

Final verdict

The USX MOUNT XML008 is a practical fit for a TV setup where viewing direction matters as much as wall space. Its VESA range, 132 lb capacity and adjustable dual arms support a flexible arrangement, while the retracting design brings the screen closer to the wall between adjustments. Choose it for a compatible TV when you want to adjust the screen for different seats and have a suitable wood-stud or solid-concrete mounting surface.
