UGREEN NVMe PCIe Adapter 2280

If you’re adding NVMe storage to a desktop with an available PCIe slot, this adapter is aimed at that job, it isn’t a general-purpose M.2 converter. Its heatsink and included thermal pads also make it more suited to a build where the SSD will be installed inside the computer than to someone looking for a simple external drive enclosure.

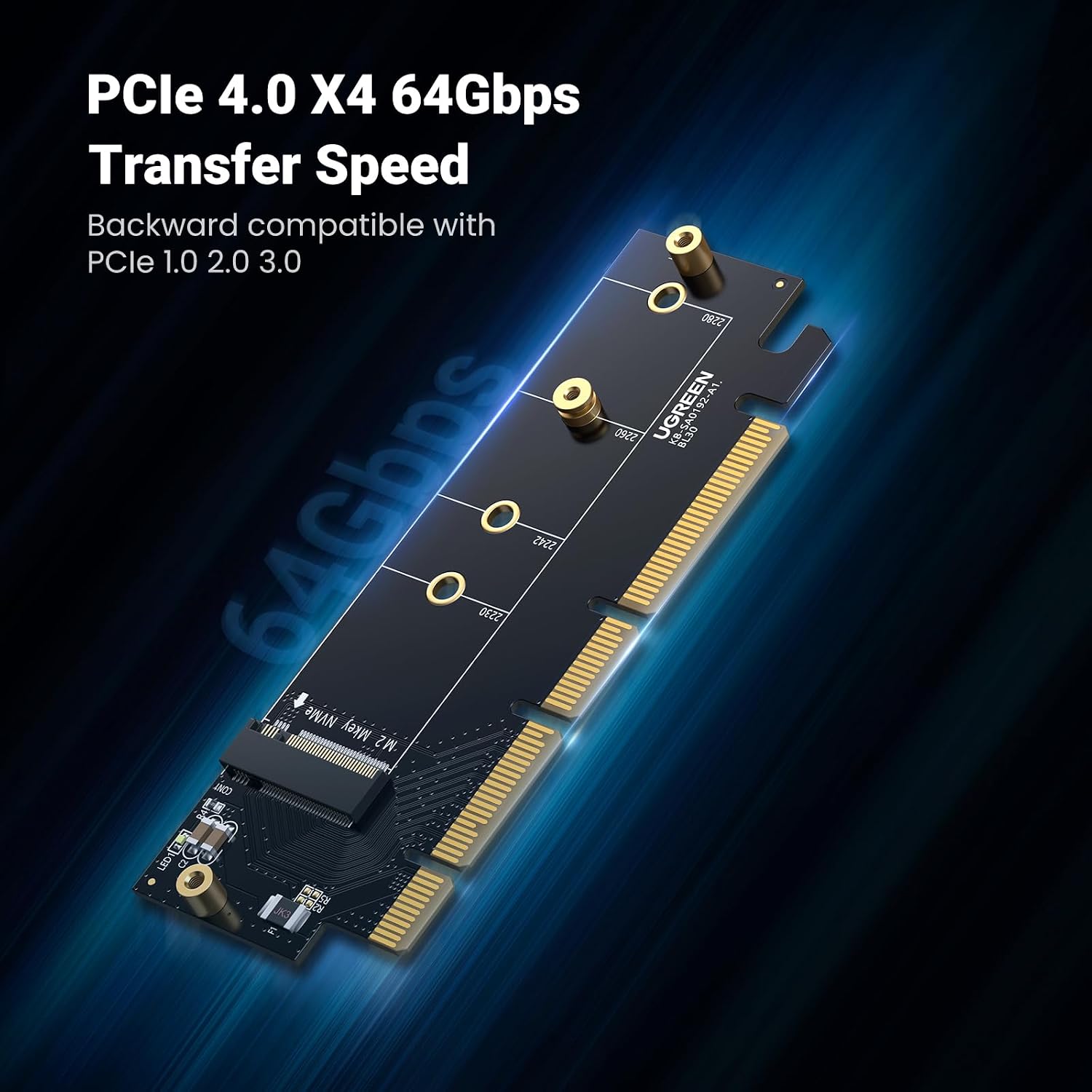

The listing gives a maximum transfer rate of 64Gbps, but that is not a promise of the speed every system or SSD will reach.

What to know

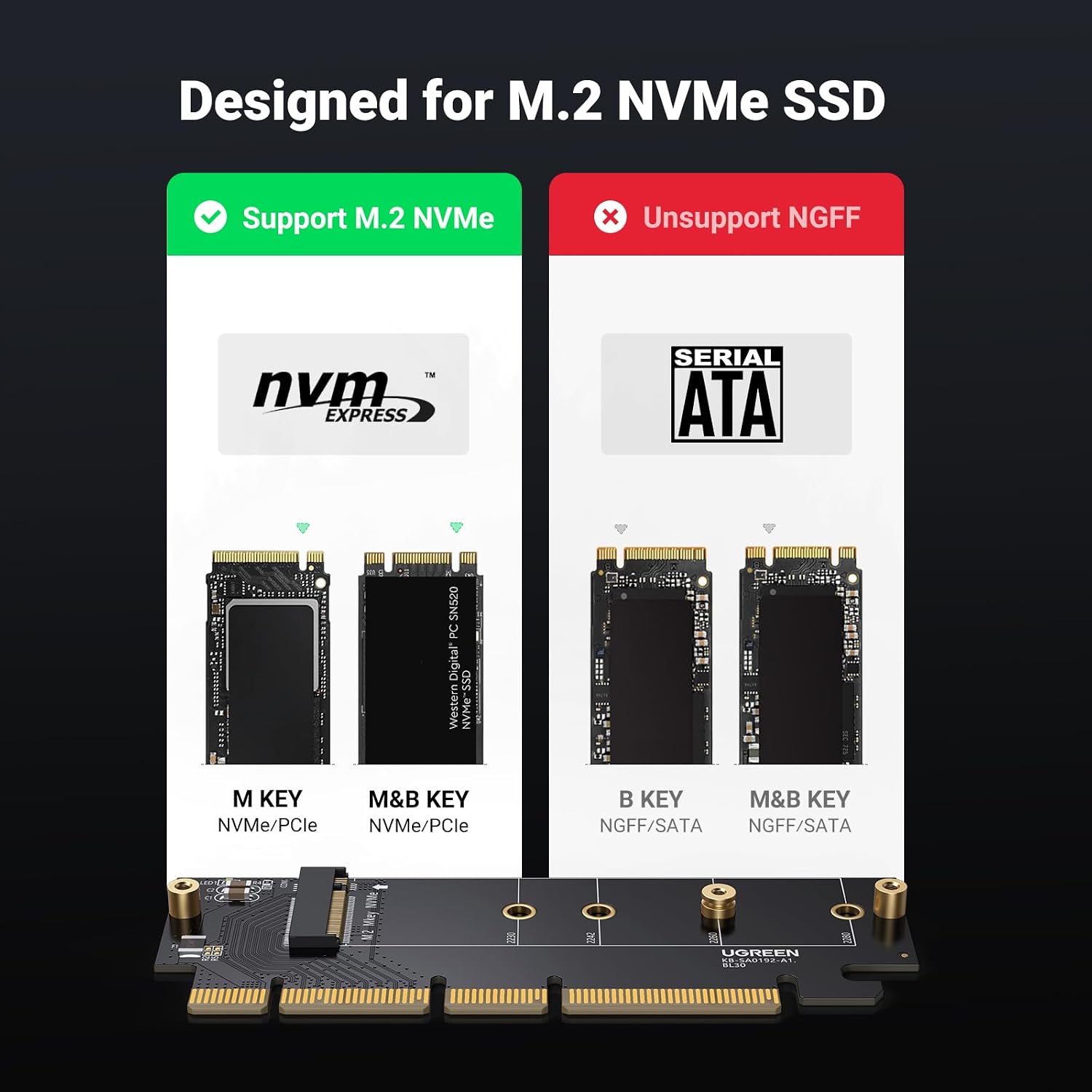

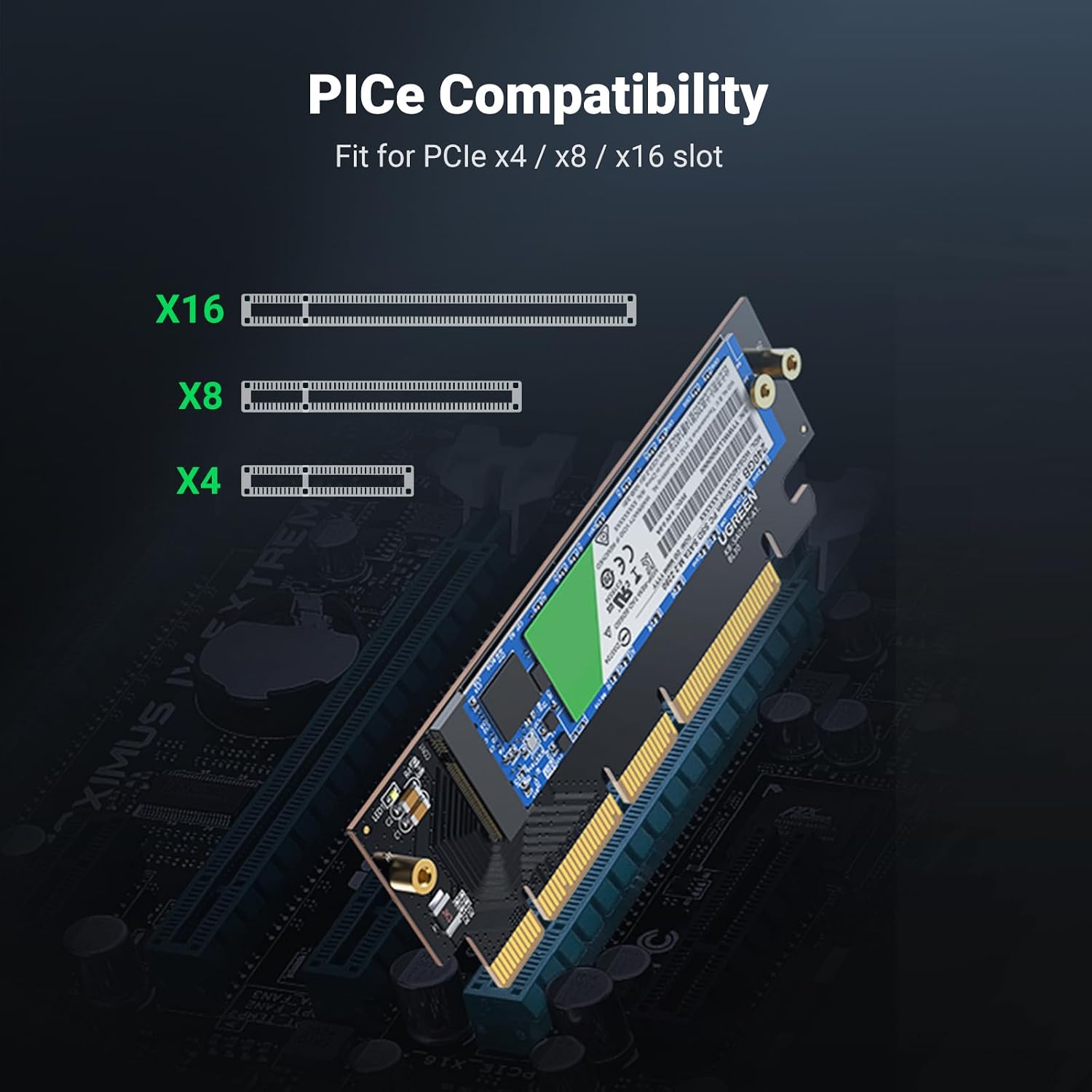

The UGREEN card fits PCIe x4, x8 and x16 slots, using a PCIe 4.0 x4 connection in a 16x physical-size card. It’s also listed as backward compatible with PCIe 3.0, 2.0 and 1.0. That flexibility is useful when a motherboard has a suitable slot but not necessarily the newest PCIe generation. The SSD itself must be an M.2 NVMe drive with an M Key or M+B Key, in 2230, 2242, 2260 or 2280 size. NVMe AHCI SSDs are listed as compatible too.

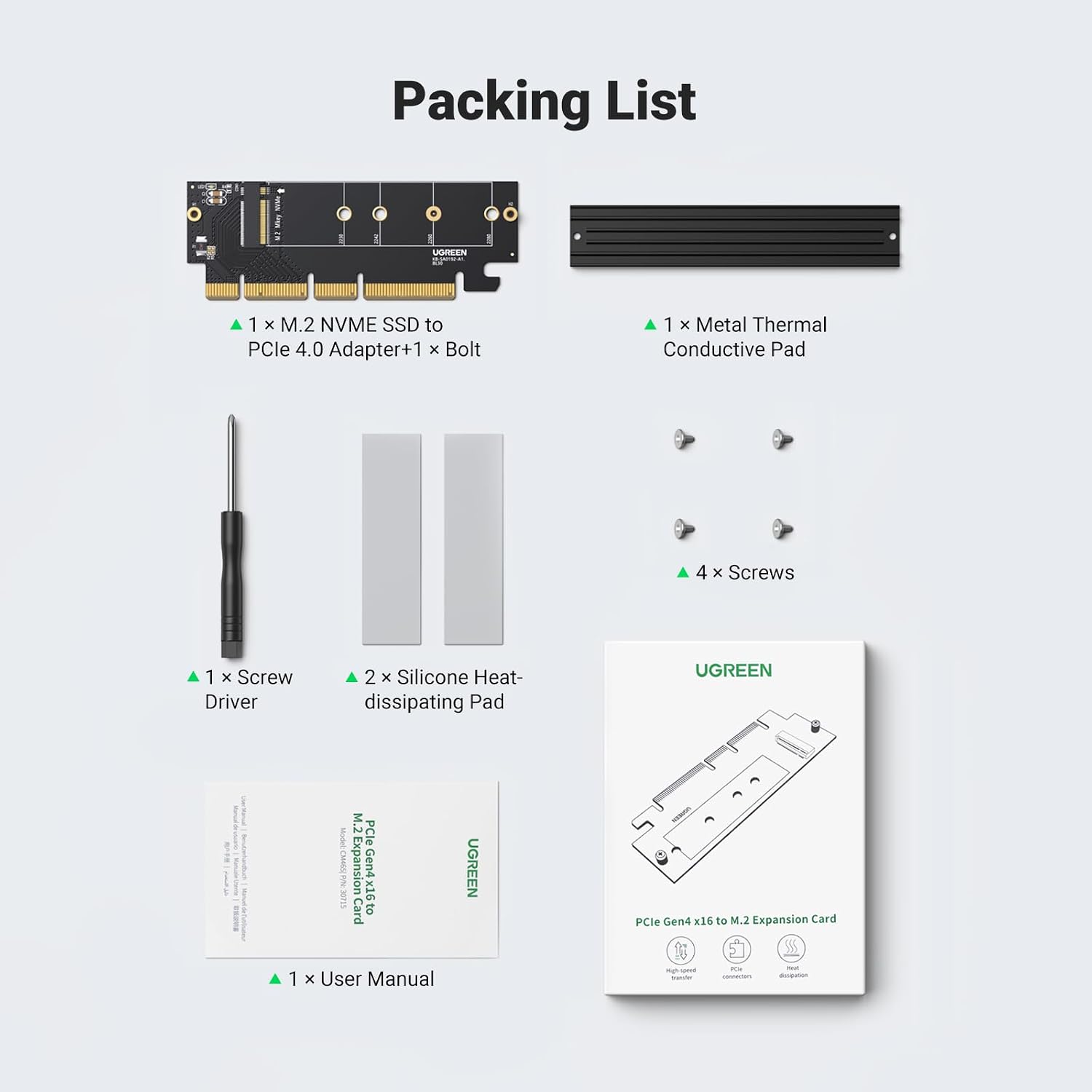

Ten en cuenta que this adapter does not support SATA NGFF M.2 drives. A similar-looking M.2 SSD can use a different interface, so check the drive’s specification before choosing this card. A heatsink and two silicone thermal pads are included, along with screws, a screwdriver and a user manual. The product also lists short-circuit, over-current, over-voltage and EMI protection, a falta de ese dato, the listing doesn’t establish the actual transfer rate you’ll get in a particular computer.

How to use it

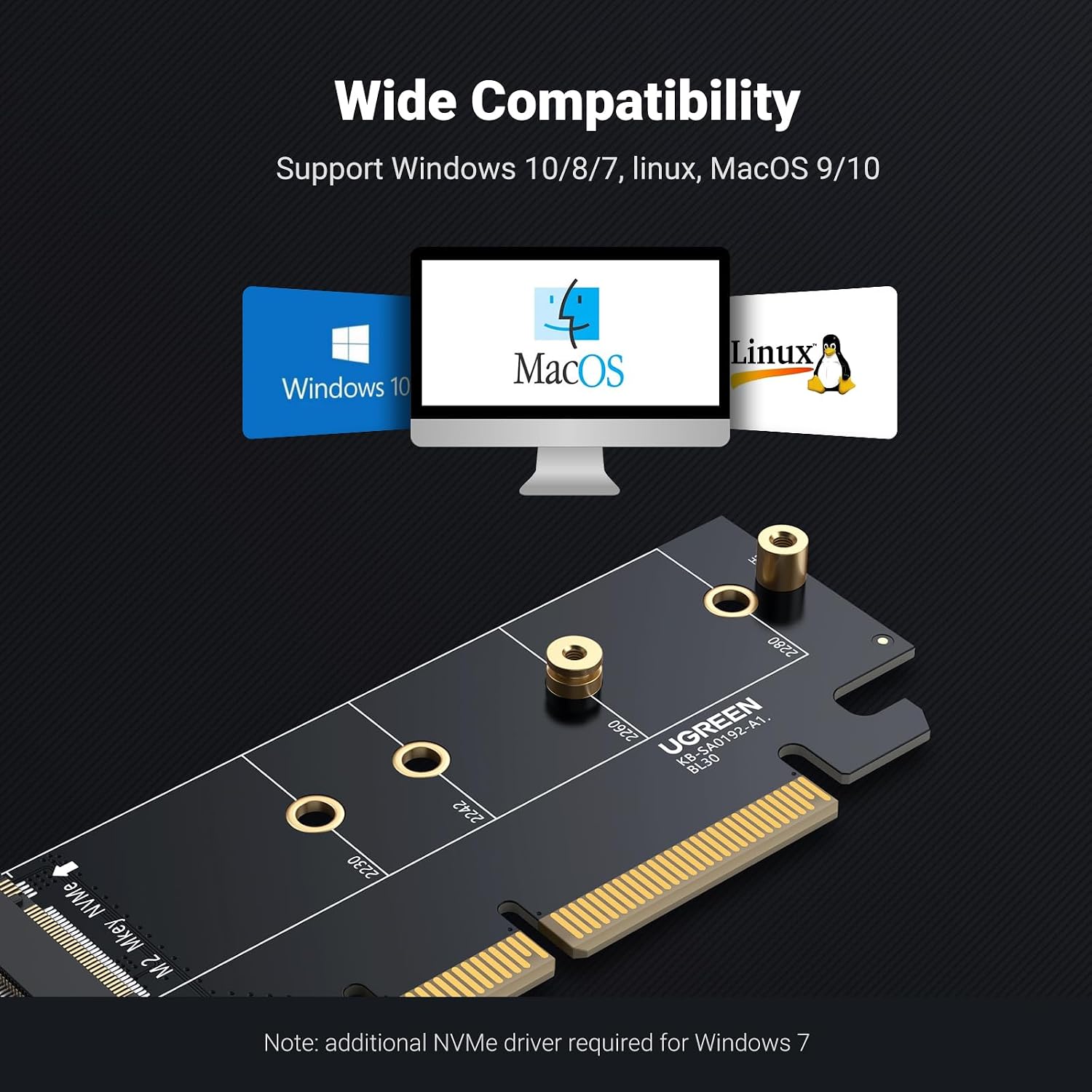

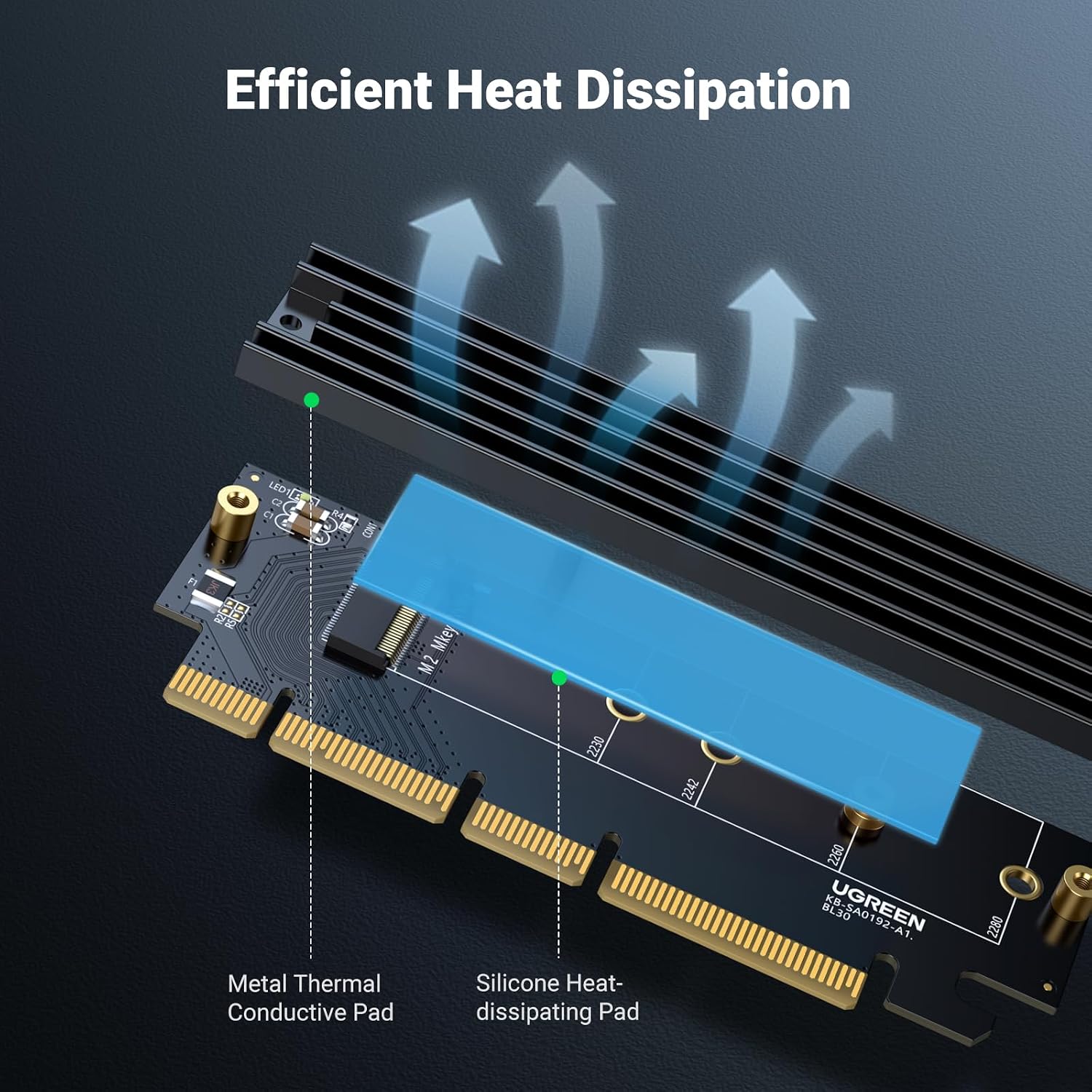

This is an internal expansion card: the M.2 SSD sits on the adapter, which then goes into an available PCIe slot. The included pads and heatsink are intended to help dissipate heat from the SSD. For a typical desktop upgrade, that means checking both the drive’s M.2 size and key, and whether there’s an accessible PCIe slot, before opening the case. The card is described as plug and play, with no driver required, and support is listed for Windows 7, 8 and 10, Linux, and Mac OS 9 and 10.

Practical tips

Use the interface, not just the shape of the connector, to decide whether your SSD will work. If the drive is SATA NGFF, this adapter isn’t the right match. If it is NVMe and one of the listed sizes, the card offers a straightforward way to install it through a PCIe slot. For example, when adding an NVMe drive to a desktop that has a free slot but no convenient M.2 connection, this card provides the mounting point and heatsink in one package. It’s a different approach from buying an external enclosure: the drive stays inside the computer and depends on an available PCIe slot.

Before deciding

Will it fit my PCIe slot? The listing specifies x4, x8 and x16 slots, with a 16x physical-size card.

Which M.2 sizes are supported? 2230, 2242, 2260 and 2280, with an M Key or M+B Key NVMe SSD.

Does it support SATA M.2 drives? No. SATA NGFF SSDs are explicitly not supported.

For your setup

It’s a good fit if you have a compatible NVMe SSD and want to install it internally through an available PCIe slot, with a heatsink and thermal pads included. It may not be the best fit if your M.2 drive is SATA NGFF, or if you need an external enclosure rather than an internal card. The advertised maximum is useful for comparing the connection, but your drive and system determine the result in practice.
