RV 50-amp electrical protector
Product description
A campground power supply that’s wired incorrectly or fluctuating can put your RV’s electrical equipment at risk. This 50-amp protector is designed to flag several wiring faults and help guard against high and low voltage and sudden power fluctuations.
Its indicator lights give you a quick visual check when you connect your RV cord. That’s useful before settling in for the night or plugging in appliances at a new site.
It also has a high-temperature warning and a waterproof cover for outdoor use. Keep in mind that a warning light can identify a problem, but it can’t repair faulty campground wiring.
Key points

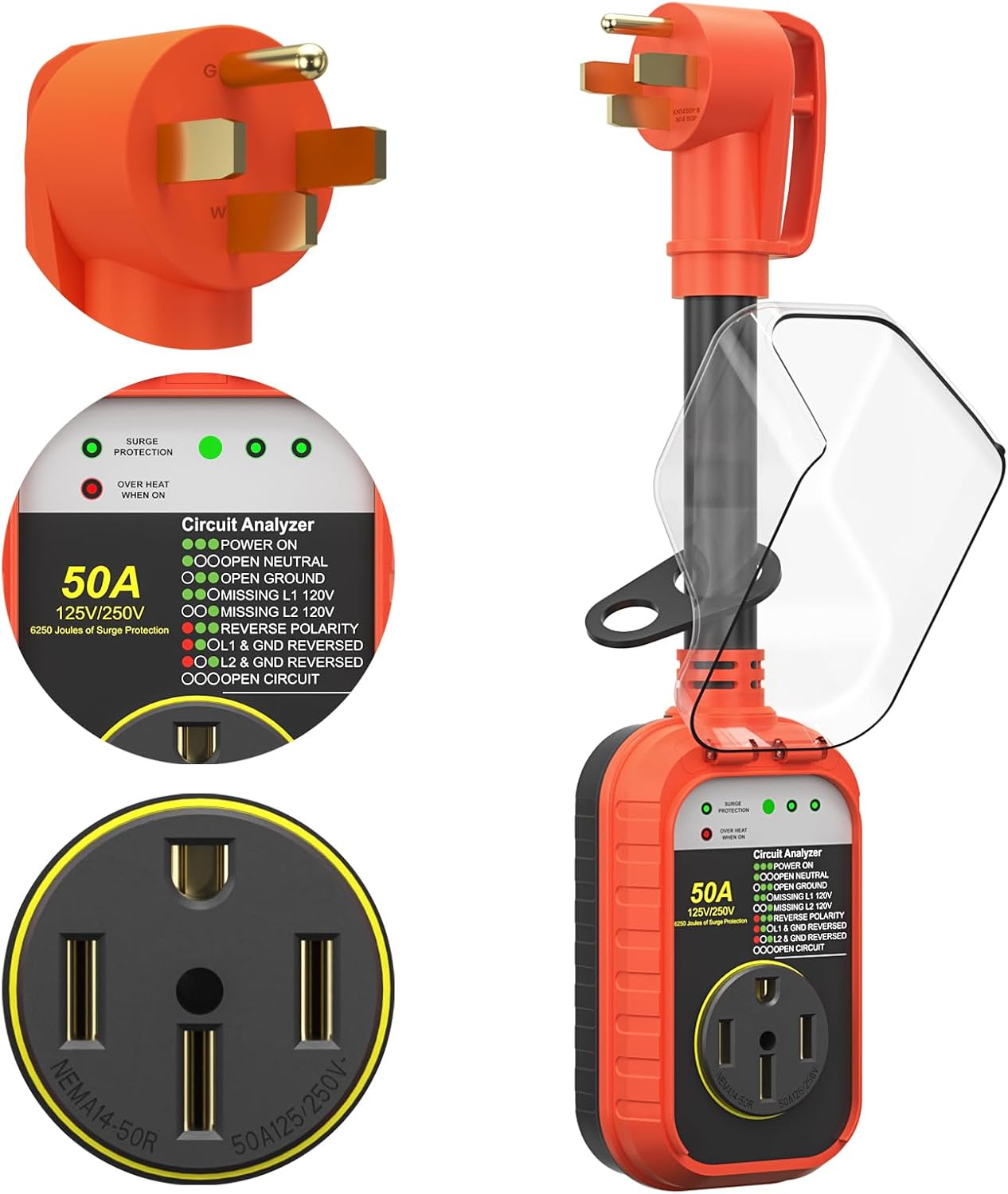

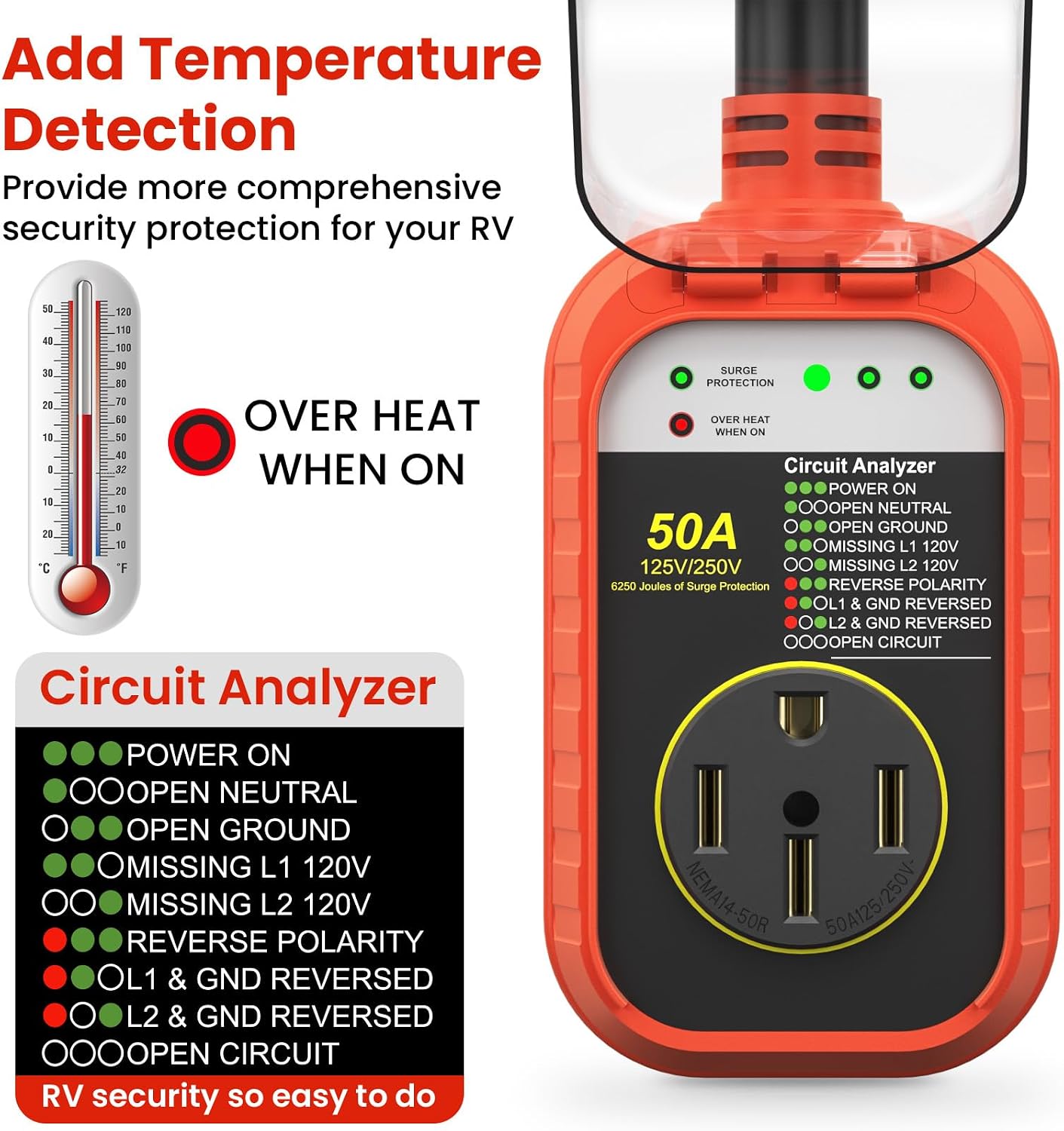

The circuit analyser uses LED indicators to report conditions including correct wiring, power on, open ground, open neutral, missing L1/L2 and reversed L1/L2 neutral. That makes it more informative than a basic adapter that only connects a cord to an outlet, especially when you want an early indication of a supply issue.
The protection circuit is rated up to 6250 joules, with a maximum spike rating of 45,000A and a stated response time of less than 1ns. The product is listed for 50A/125V/250V and connects a 50-amp plug (N14-50P) to a 50-amp receptacle (NEMA14-50R). A temperature warning LED is designed to light when the internal circuit temperature exceeds 60℃/140℉.
How to use it
Connect the RV cord to the protector, then use the indicator lights to assess the supply before relying on it. For example, at a new campground, you can check the panel for an open ground or neutral indication before setting up the rest of your electrical connection. If a fault appears, treat it as a reason to investigate the supply rather than assuming the protector has corrected it.
The unit is described for outdoor use and has a waterproof cover and heavy-duty construction. Its thick pure copper cable is intended to provide conductivity, though the product information doesn’t give a cable length or a specific weather-resistance rating.
Practical tips
Match the plug and receptacle to your setup: this is a 50-amp-to-50-amp protector, not a converter for a different connection type. The lights are there to help identify wiring conditions, so take time to read what they indicate instead of treating “power on” as proof that every part of the supply is suitable.
It is a good fit if you want a visible wiring check alongside surge protection for a 50-amp RV connection. It won’t suit you if your setup uses a different amperage or plug format. The stated surge figures describe the product’s protection circuit, they don’t mean every electrical event or equipment failure can be prevented.
Dudas de compra
What wiring issues can the lights identify? The listed indications include open ground, open neutral, missing L1/L2 and reversed L1/L2 neutral, as well as correct wiring and power on.
Does it fit a 50-amp extension cord? It has a 50-amp N14-50P plug and NEMA14-50R outlet, so it is intended for that connection format.
Can it be used outdoors? It is described for outdoor use and has a waterproof cover. No specific weather-resistance rating is provided.
En tu caso
Choose this protector if your RV uses a 50-amp connection and you want fault indicators plus stated surge protection in one unit. For a trip where you’ll plug in at unfamiliar parks, the visible checks can add useful information before you connect the rest of your equipment. If your main need is a different plug format, a different amperage, or a device with a published weather-resistance rating, this listing doesn’t establish that it will meet those requirements.
