Pivot Door Hinges, 2-Piece Set

What matters most

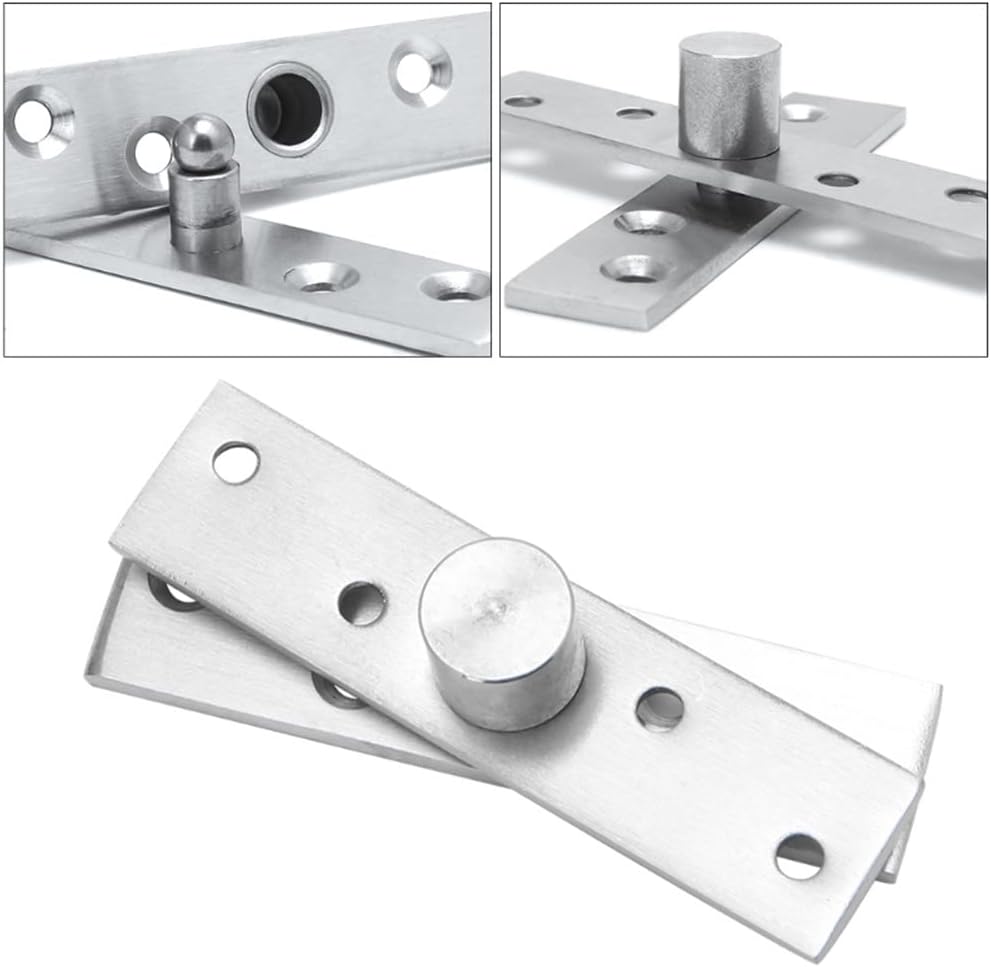

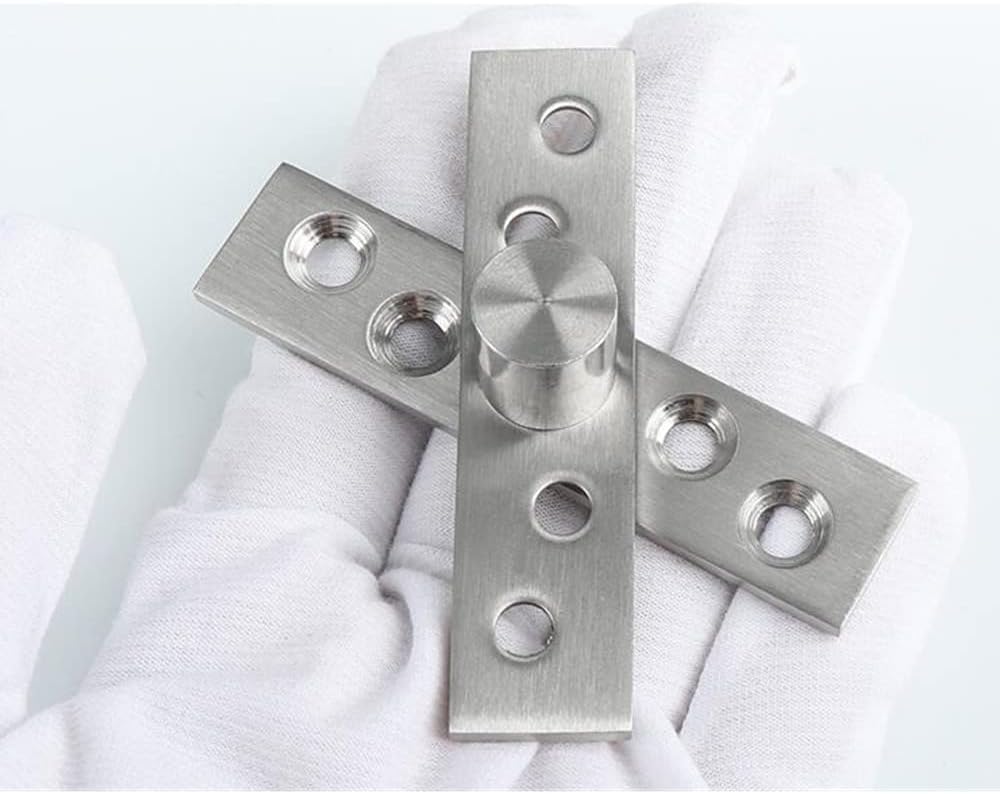

When a door needs to rotate around a central point rather than swing from a conventional side hinge, a pivot setup offers a different way to plan the opening. This two-piece set uses an upper and lower hinge structure, with the lower part fixed to the floor and the upper part to the door. The listed material is stainless steel, and the product is described for internal doors, screens, wooden and alloy doors, cabinet doors and other applications. It may suit you if the central-axis movement is what your project calls for, it won’t suit you if you need a standard side-mounted hinge or need confirmed load limits, since none are provided here.

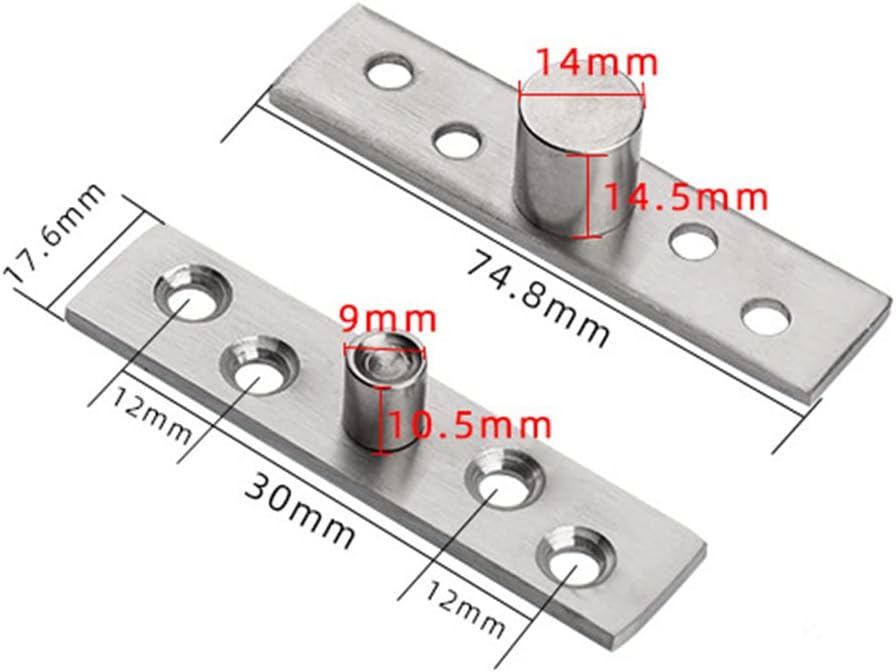

The supplied details list dimensions of 75 x 17 x 22 mm, a 5 mm mounting-hole diameter and a 14 mm shaft-bore diameter. There is a sizing discrepancy worth noticing: the product name says 75 x 18 mm, while the fuller specification says 75 x 17 x 22 mm. Match the measurements to your installation before choosing. Keep in mind that screws are not included, so they’ll need to be sourced separately.

How to use it

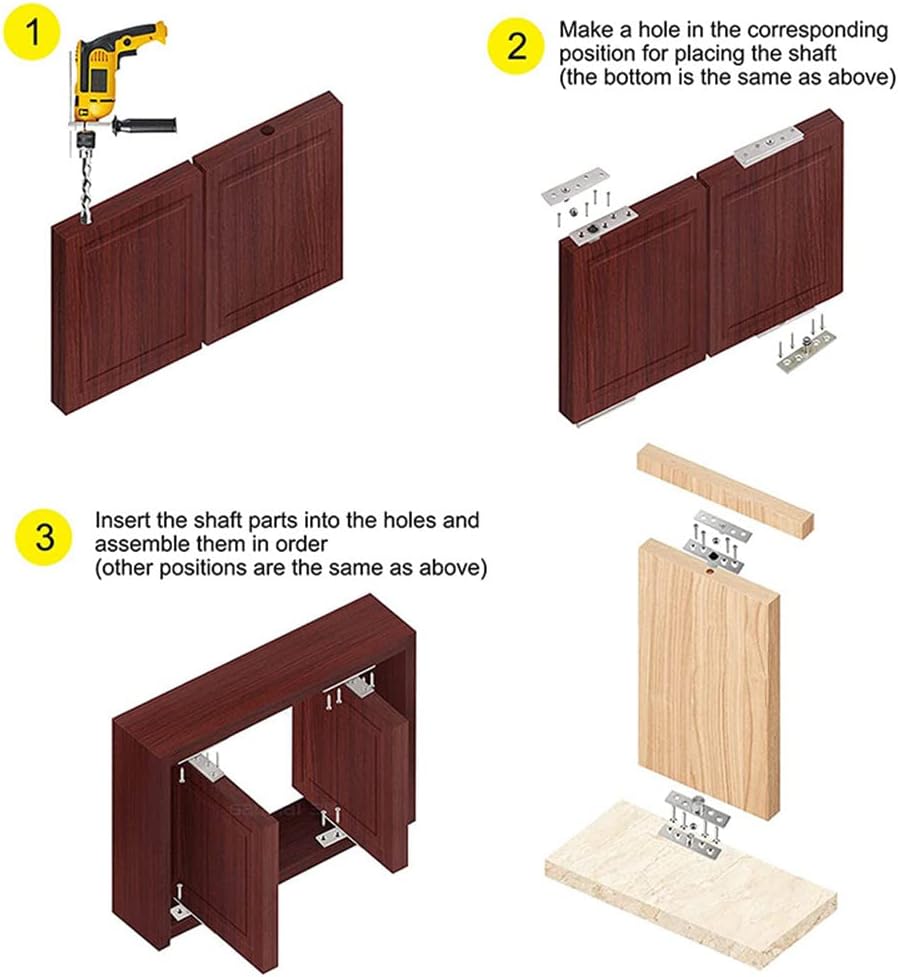

The described arrangement places one part at the floor and the other at the door, allowing the door to rotate around the central shaft. For example, this could be considered for a wooden interior door or a screen where a central pivot is more suitable than a hinge along the edge. That’s a different approach from a basic side-hinge installation, and the opening and mounting points need to suit the pivot layout. The description calls the hinges easy to install, but it doesn’t provide a door-weight rating, installation instructions or details about the required floor and door preparation, so don’t assume those will match every project.

Practical tips

Before starting, compare the listed mounting-hole and shaft-bore diameters with the hardware and openings in your design. Also account for the fact that the package contains two hinges but no screws, the supplied information doesn’t specify screw type or length. If you’re replacing existing hardware, check that the new central-axis arrangement can work with the door and its location rather than expecting it to fit like a conventional hinge. A more demanding project may call for hardware with published load and installation specifications, which aren’t given for this set.

Buying questions

What is included? The package contains two pivot door hinges. Screws are not included.

Which measurements are listed? The detailed description gives 75 x 17 x 22 mm, a 5 mm mounting-hole diameter and a 14 mm shaft-bore diameter. The product name also says 75 x 18 mm, so confirm which dimension applies to your intended fit.

What kinds of doors or screens are mentioned? The description names internal, wooden, alloy and cabinet doors, as well as screens and invisible doors. It doesn’t confirm suitability for every door size, weight or installation.

In your case

Choose this set when you specifically need a pair of stainless steel pivot hinges and the central-shaft layout matches your door or screen. It’s less suitable when you need a straightforward edge-mounted replacement, included screws or documented capacity for a heavier door. The measurements—and especially the 75 x 18 mm versus 75 x 17 x 22 mm difference—are the key details to settle before you commit.
