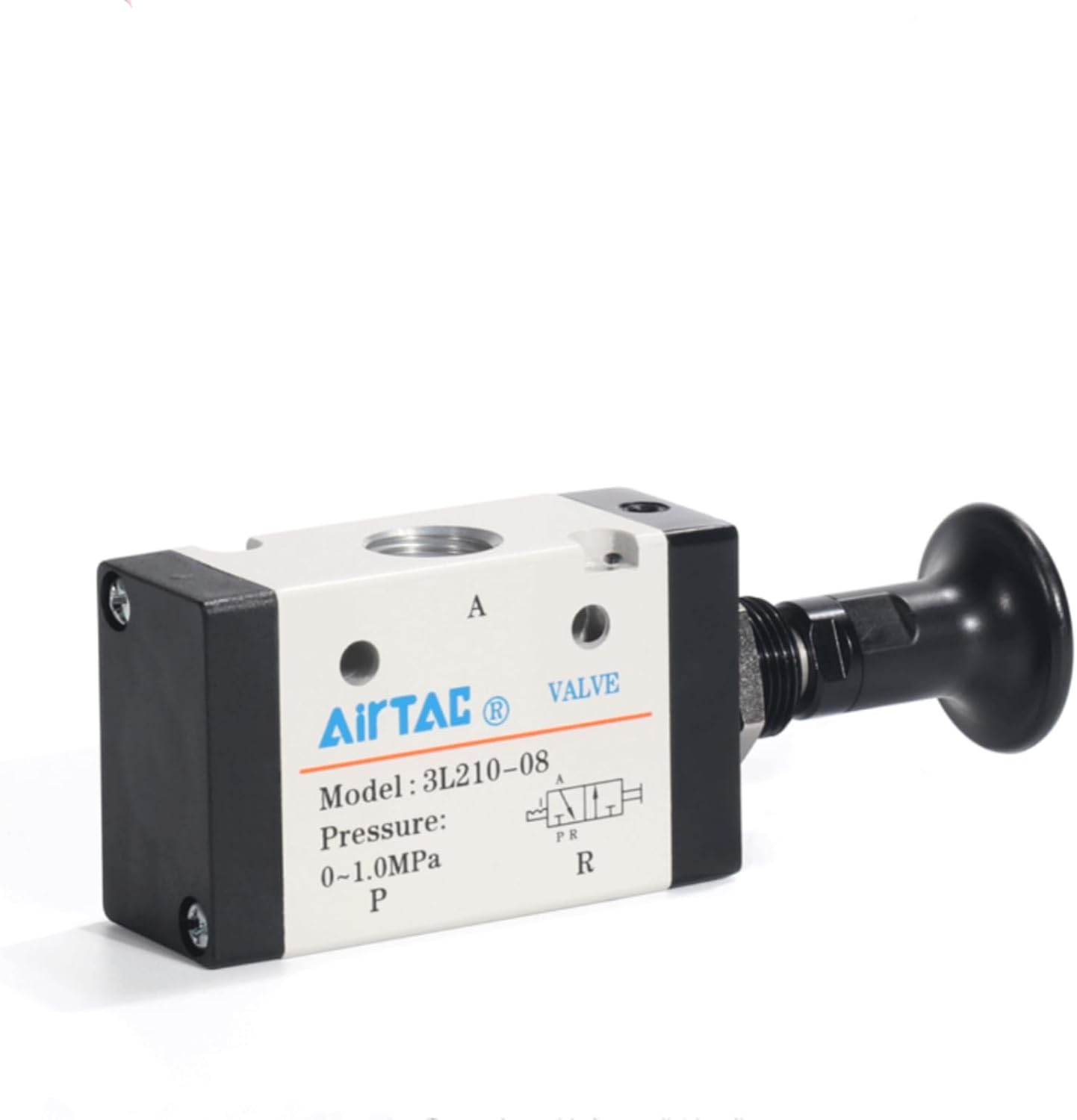

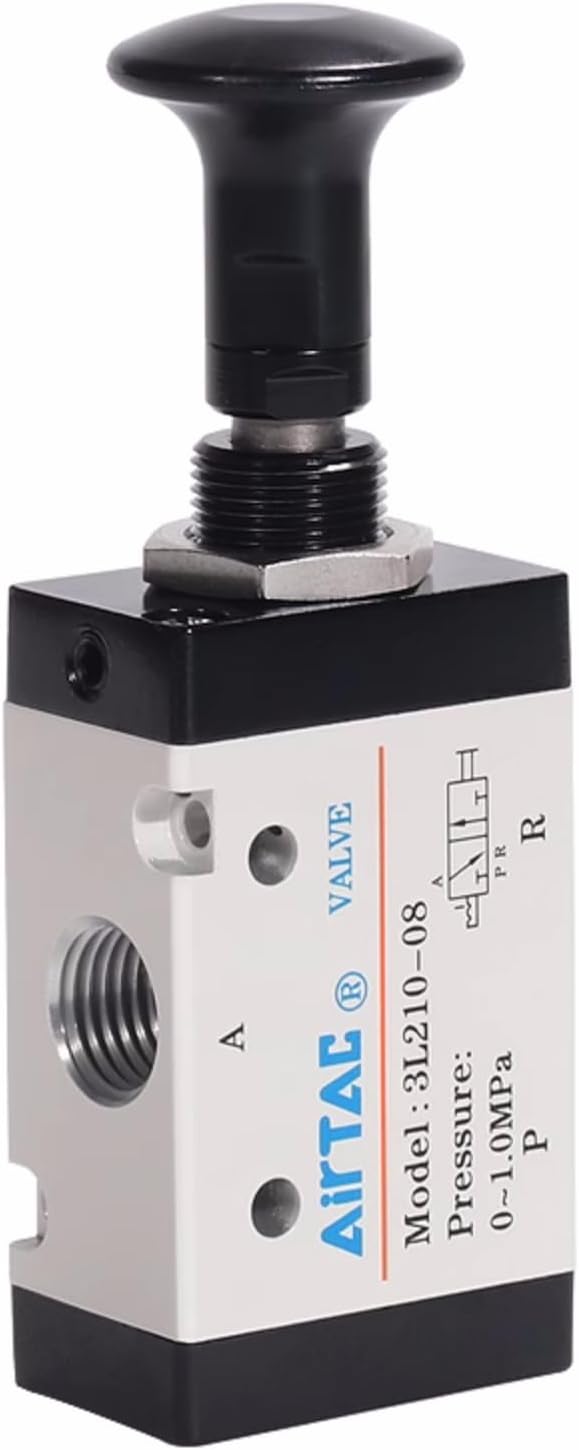

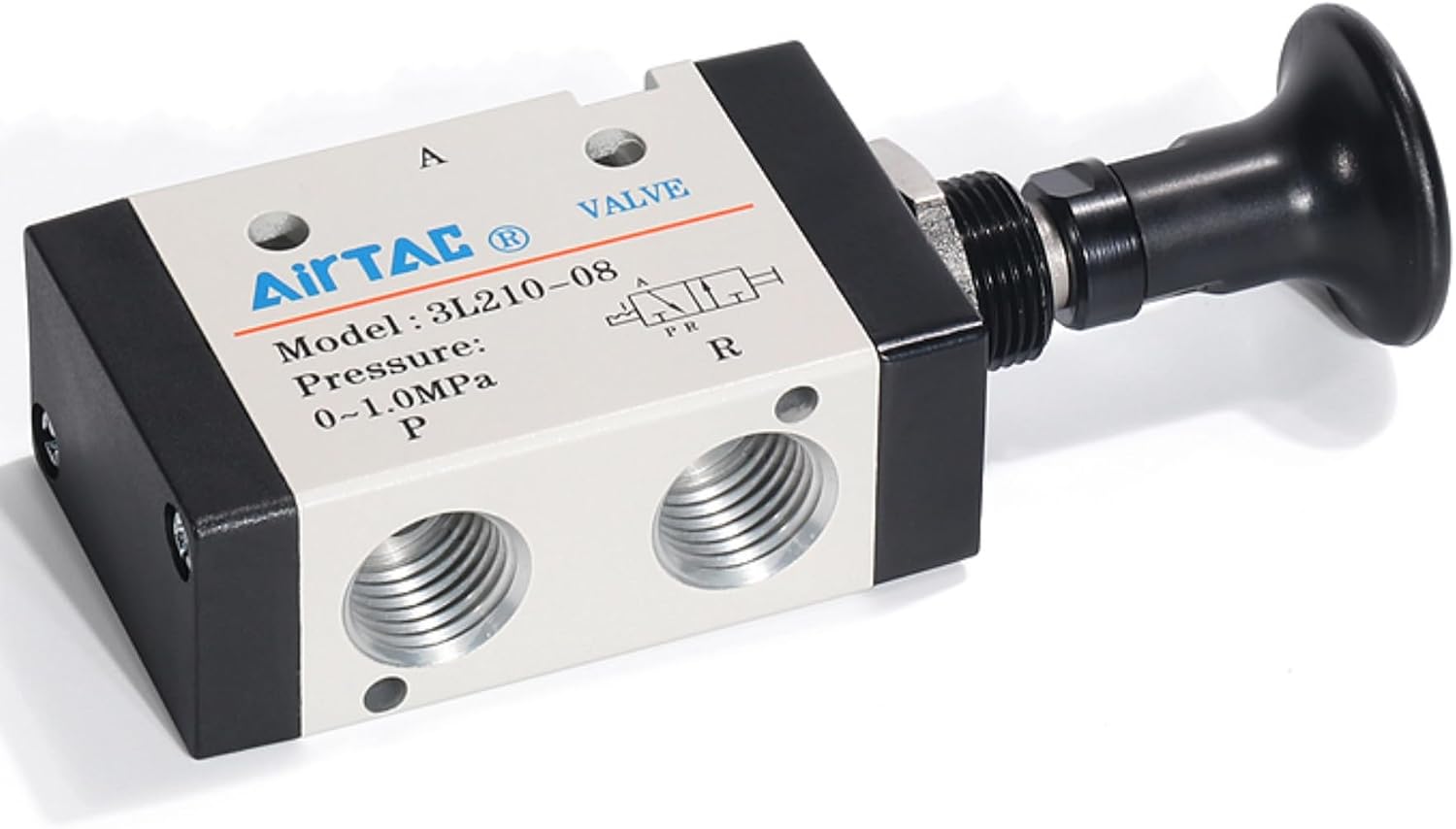

AirTAC pneumatic hand valve 3L210-08

At a workbench or on pneumatic equipment where air needs to be switched by hand, a lever valve can offer a direct alternative to an electrically controlled setup. This AirTAC 3/2-way manual valve has two positions and is listed as a direct-acting type for air. Its 1/4-inch NPT port size and stated pressure range make it worth considering for a system that already uses those connections and operating conditions. One detail to note before choosing it: the product name gives model 3L210-08, while the supplied description identifies it as 3L2108T.

Getting the most from it

The lever is the manual control, so this valve is intended for situations where an operator needs to change the air path directly rather than rely on an automatic electrical signal. For example, it could suit a pneumatic setup where someone at the machine operates the control as part of a task. The 3/2-way, two-position description tells you the intended configuration, but the supplied information does not explain the exact port connections in each lever position. Match the valve’s port arrangement to your circuit rather than assuming how it will behave in a particular installation.

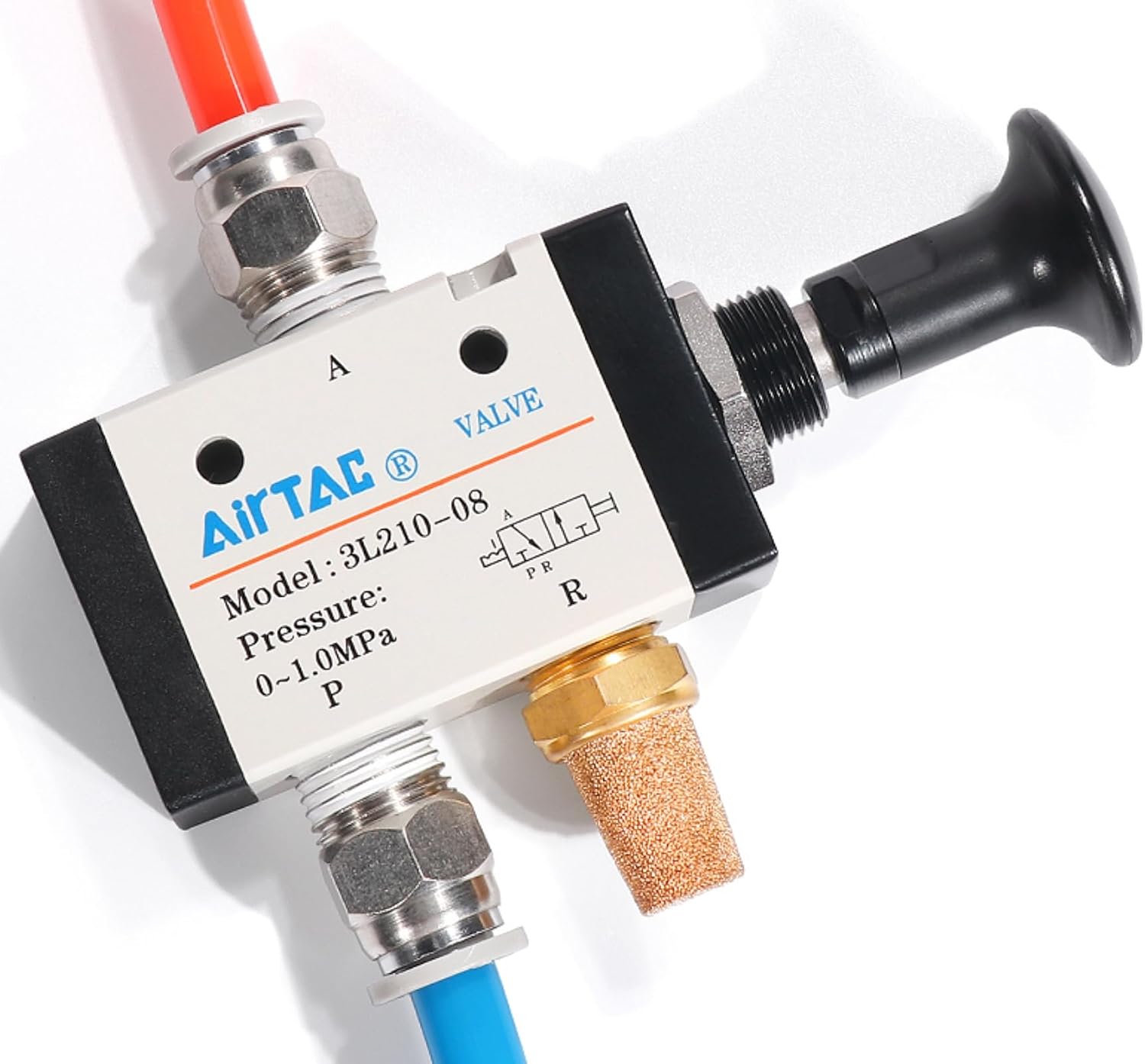

The main port size is NPT 1/4", and the vent silencer connection is listed as NPT 1/8". The stated working pressure range is 0–145 PSI, with a proof pressure of 1.5 MPa (215 psi). It is specified for air, has an aluminium alloy body, and lists a working temperature range of -20–70°C. These details help narrow down fit, but they do not establish compatibility with every pneumatic system or confirm suitability for other fluids.

Why it’s worth it

The appeal here is straightforward manual control in a compact, metal-bodied valve, without adding an electrical control method to the task. If you prioritise a simple hand-operated switch for an air circuit, this approach may make more sense than choosing a valve primarily for remote or automated operation. If you prefer a system that changes state without someone operating a lever, this is the wrong control approach.

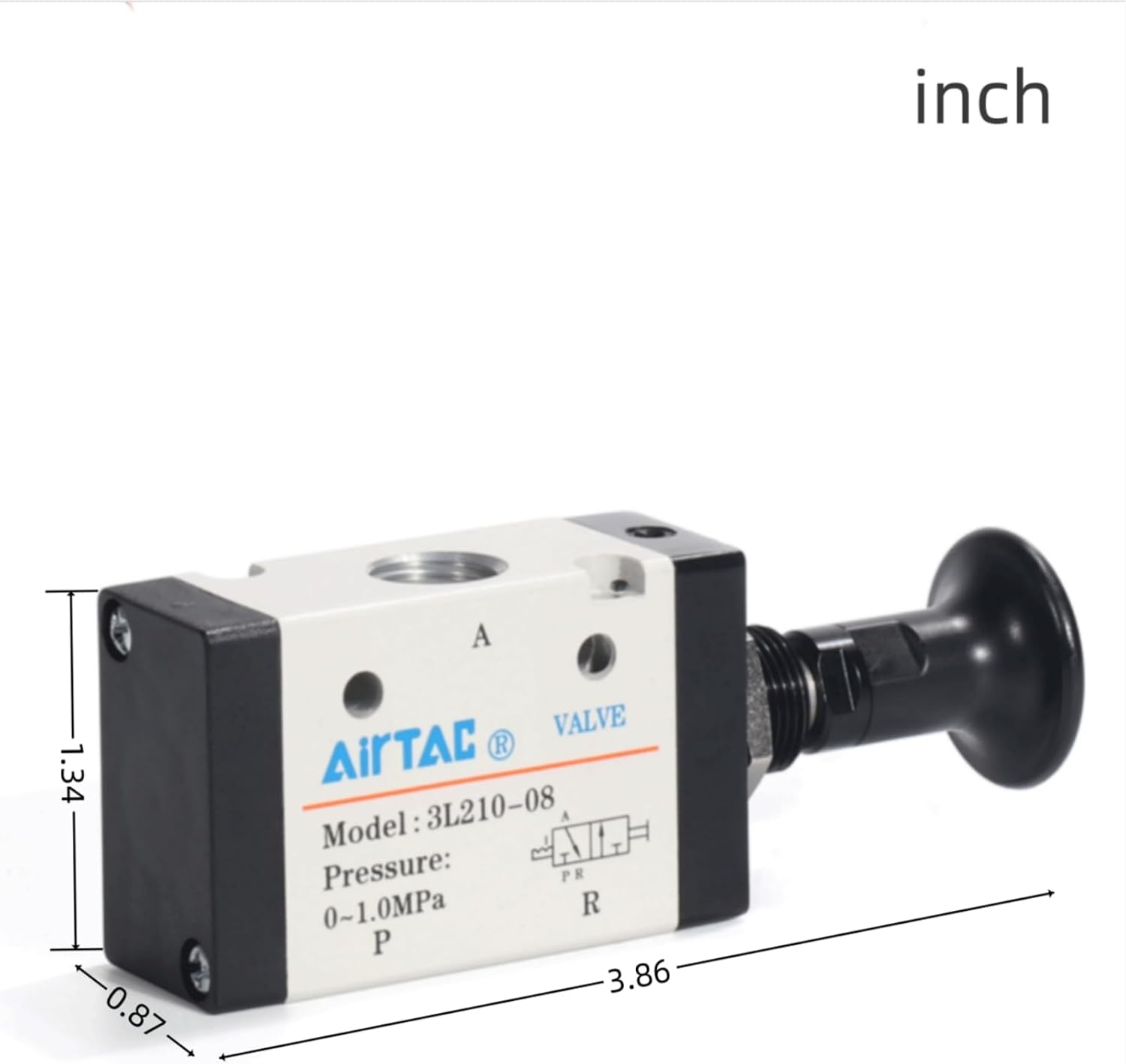

Its listed size is 3.85 x 1.37 x 0.86 inches and its weight is 0.3 lb. Those figures may help when planning space around a panel or machine, though the description does not provide a mounting pattern or installation instructions. The pressure and temperature figures are useful selection limits, not a substitute for matching the valve to the circuit and its requirements.

Key takeaways

• Manual, direct-acting control with a hand lever, described as 3/2-way and two-position.
• For air, with a 1/4" NPT main port and an NPT 1/8" vent silencer connection.
• Aluminium alloy body, stated working pressure is 0–145 PSI and working temperature is -20–70°C.
• Model naming is inconsistent between the product name and description, so identify the required part by its markings and connection details before ordering.

It suits you if you need a hand-operated air valve and the listed ports and operating range match your application. It is not a fit if your setup requires a different connection, a different control method, or confirmed installation details that are not provided here.

When to choose it

Choose this valve when manual lever operation is the point, rather than a feature you might use only occasionally, and the NPT connections suit the rest of the pneumatic circuit. Its stated air-only use is another practical boundary: the information supplied does not support choosing it for another medium. Given its design, the model-number mismatch is the most immediate purchasing snag. If an exact replacement is needed, compare the existing valve’s marking, port sizes and layout with the product details, if those cannot be matched, a listing with consistent identification and clearer installation information is the safer route.
